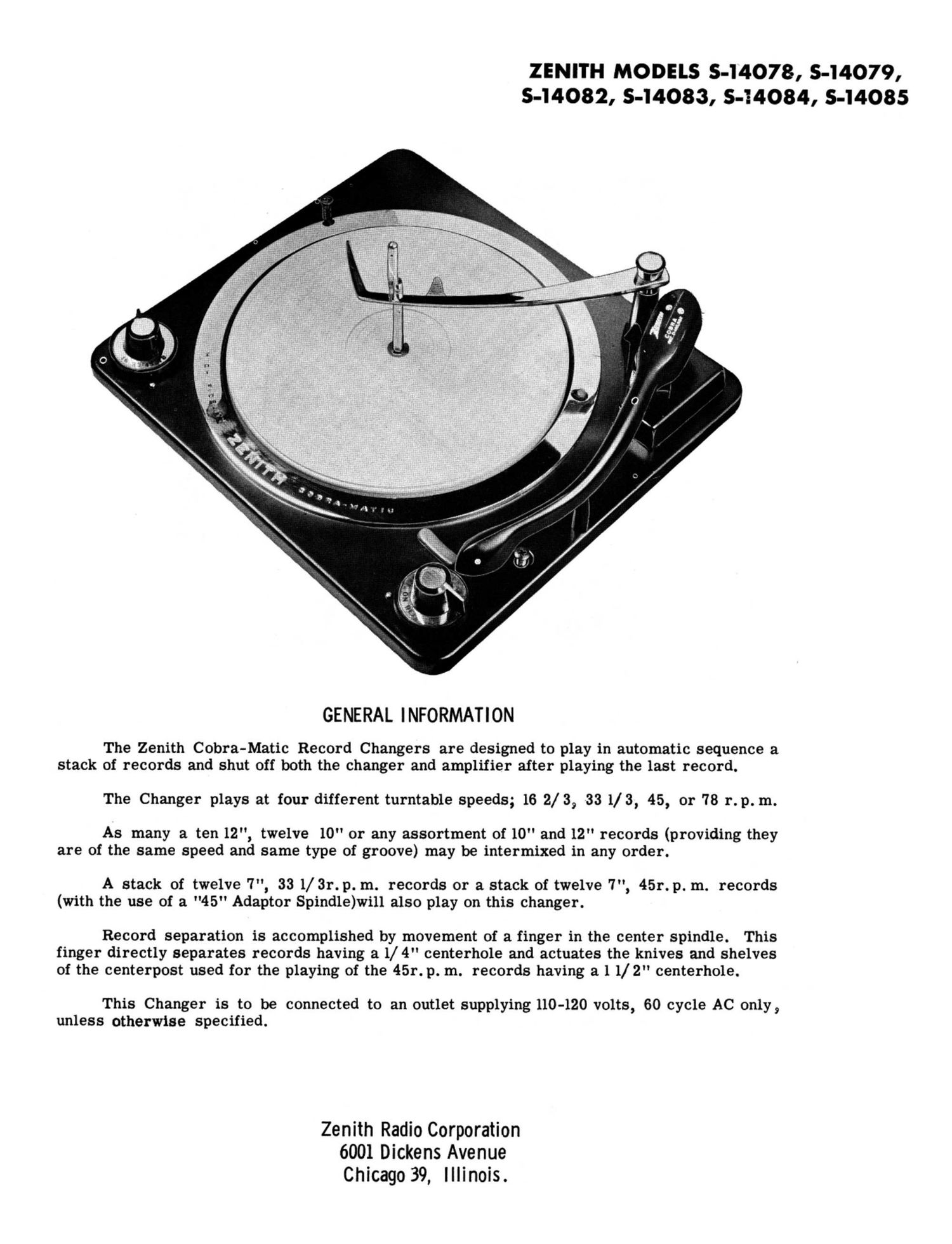

ZENITH MODELS 5-14078, $44079,
$44082, $44083, $44084, 5-14085

GENERAL INFORMATION

The Zenith Cobra-Matic Record Changers are designed to play in automatic sequence a
stack of records and shut off both the changer and amplifier after playing the last record.

The Changer plays at four different turntable speeds; 16 2/ 3, 33 1/ 3, 45, or 78 r.p. m.

As many a ten 12", twelve 10" or any assortment of 10" and 12" records (providing they
are of the same speed and same type of groove) may be intermixed in any order.

A stack of twelve 7", 33 1/ 3r. p. m. records or a stack of twelve 7", 45r. p. m. records
(with the use of a "45" Adaptor Spindle)will also play on this changer.

Record separation is accomplished by movement of a finger in the center spindle. This
finger directly separates records having a 1/ 4" centerhole and actuates the knives and shelves
of the centerpost used for the playing of the 45r. p. m. records having a 1 1/2" centerhole.

This Changer is to be connected to an outlet supplying 110-120 volts, 60 cycle AC only,
unless otherwise specified.

Zenith Radio Corporation
6001 Dickens Avenue
Chicago 39, Illinois.

Page 2

8 33 313 l

17 19 ' 9

FIGURE 1

CONTROLS to level the record changer pan or combination cabinet
to achieve perfect level.
Two controls are provided on the baseplate, one

on the right front corner is the Off-On-Reject control NS
and the one on the left front corner is the speed control. OPERATING INSTRUCTIO

- Loading

Byturning the Off-On-Reject control clockwise "'""""
to the "On" position, the motor is energized and starts 1. Pull straight up on record support (3) until
the turntable, when turned to the "Reject" position, it record support clears spindle, swing support
starts the mechanism into complete automatic oper- out over pick-up arm.
ation. The mechanism will shut off automatically after
the last record has been played but can be shut off 2. Place records on spindle and lower to offset
manually by turning this control to the left (counter- shelf. Hold records level and replace record
clockwise). support over spindle.

The speed control has four normal positions,
"16", "33", "45" and "78" to select the turntable Starting

speed desired.
To start the changer, after checking that the

pREPARING FOR OPERAHON stylus and speed controls are in the position cor-
responding to type records to be played, turn "Off-
On-Reject" knob to "Reject" and release. The changer
will operate automatically until the last record has
been played, at which time, the pick-up arm is re-
turned to its rest and the supply to the motor is
switched off.

Shipping Bolts

The changer must be floating freely on the
mounting springs before placing in operation. To
float the changer, turn the two shipping bolts in a
clockwise direction as far as they will go.

Rejecting
To reject a record at any time while the changer

is operating, turn "Off-On-Reject" knob to "Reject"
and release.

Leveling Record Changer

It is essential to have the record changer ab-
solutely level. Use .a torpedo or similar type level
on the record changer baseplate. Use adequate shims
