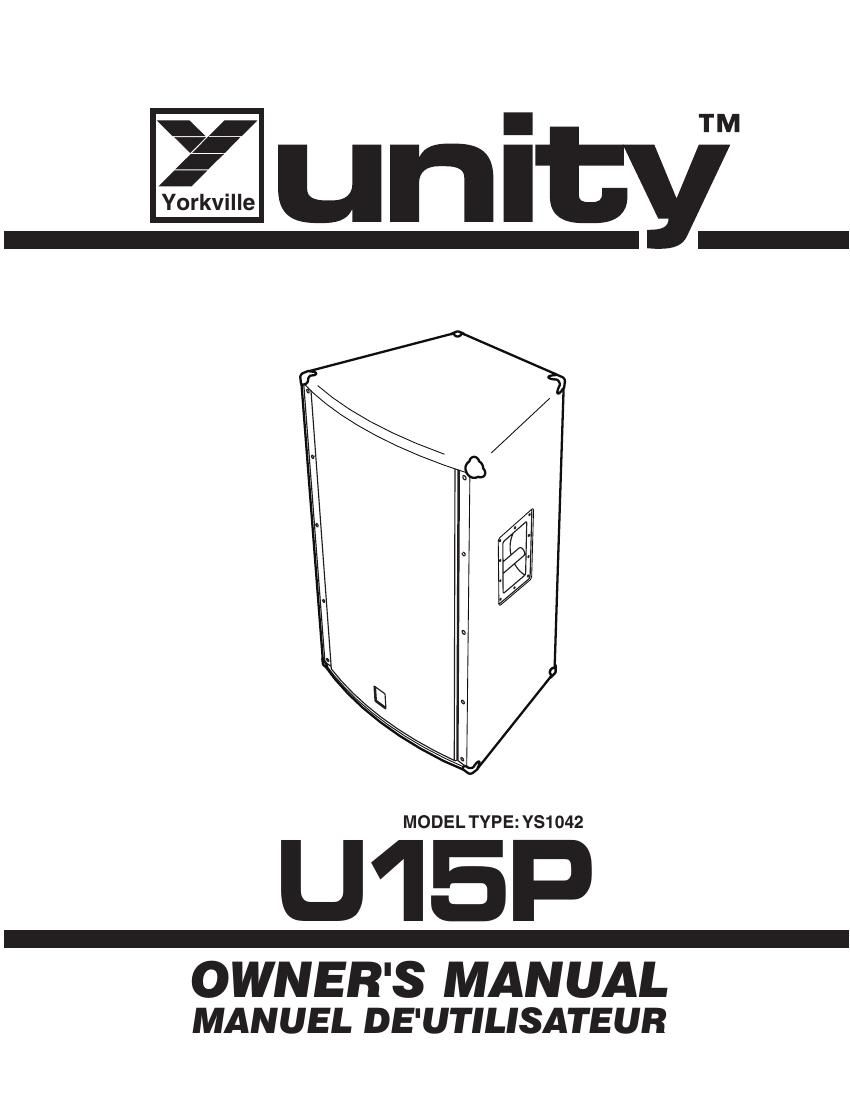

Yorkville u 15 p owners manual
This is the 16 pages manual for yorkville u 15 p owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yorkville u 15 p owners manual (Ocr-read)
Page 1
The exclamation point within an equilatereal tr iangle is intended to alert the user to the presence of impor tant operating and maintenance (ser vicing) instructions in the literature accompan ying the appliance. Le point de xclamation à lintér ieur dun triangle équilatéral est prévu pour aler ter lutilisateur de la présence dinstr uctions impor tantes dans la littérature accompag - nant lappareil en ce qui concer ne lopération et la maintenance de cet appareil. This lightning flash with arro whead symbol, within an equilateral tr iangle, is intended to aler t the user to the presence of uninsulated dangerous v oltage within the products enclosure that ma y be of sufficient magnitude to constitute a r isk of electr ic shock to persons. Ce symbole déclair avec tête de flèche dans un tr iangle équilatéral est prévu pour aler ter lutilisateur de la présence dun « v oltage dangereux » non-isolé à pro ximité de lenceinte du produit qui pourrait être dampleur suffisante pour présente\ r un r isque de choque électr ique. IMPORTANT SAFETY INSTR UCTIONS safety-4v5.eps - Apr il 3/2007 CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMO VE COVER (OR BA CK). NO USER SER VICEABLE PARTS INSIDE. REFER SER VICING TO QU ALIFIED SER VICE PERSONNEL. FOLLOW ALL INSTR UCTIONS SUIVEZ TOUTES LES INSTR UCTIONS Instructions per taining to a risk of fire, electric shock , or injury to a per son Read Instructions: The Owners Manual should be read and understood bef ore operation of y our unit. Please, save these instr uc- tions f or future ref erence and heed all wa rnings . Clean only with dr y cloth. Packaging: Keep the bo x and packaging mater ials, in case the unit needs to be retur ned for ser vice. Warning: To reduce the r isk or fire or electr ic shock, do not e xpose this apparatus to rain or moistur e. Do not use this apparatus near w ater! Warning: When using electr ic products, basic precautions should alw ays be f ollowed, including the f ollowing: Power Sour cesYour unit should be connected to a po wer source only of the voltage specified in the o wners manual or as ma rked on the unit. This unit has a polari zed plug. Do not use with an e xtension cord or receptacle unless the plug can be fully inser ted. Precau- tions should be tak en so that the grounding scheme on the unit is not def eated. HazardsDo not place this product on an unstab le cart, stand, tr ipod, bracket or tabl e. The product ma y fall, causing ser ious personal injury and serious damage to the product. Use only with car t, stand, tripod, bracket, or tab le recommended by the manufacturer or sold with the product. Follow the manuf acturers instructions when installing the product and use mounting accessor ies recommended by the manufacturer. The apparatus should not be e xposed to dripping or splashing w ater; no objects filled with liquids should be placed on the apparatus . Te rminals mark ed with the lightning bolt are hazardous live ; the e xternal wir ing connected to these ter minals require installation by an instructed person or the use of ready made leads or cords. Ensure that proper v entilation is provided around the appliance. Do not install near an y heat sources such as radiator s, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. No nak ed flame source s, such as lighted candle s, should be placed on the apparatus . Power CordDo not def eat the saf ety purpose of the pola rized or grounding-type plug . A pola rized plug has two b lades with one wider than the othe r. A grounding type plug has two b lades and a third grounding prong . The wide b lade or the third prong are pro vided for your sa fety. If the pro vided plug does not fit into y our outlet, consult an electrician for replacement of the obsolete outlet . The AC supply cord should be routed so that it is unlik ely that it will be damaged . If the AC supply cord is damaged DO NO T OPERATE THE UNIT . Unplug this apparatus dur ing lightning storms or when unused f or long periods of time. ServiceThe unit should be ser viced only by qualified service personnel. AVIS: AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, NENLEVEZ P AS LE COUVERT (OU LE P ANNEA U ARRIERE) NE CONTIENT A UCUNE PIECE REP ARABLE P AR LUTILISA TEUR. CONSUL TEZ UN TECHNICIEN QU ALIFIE POUR L ENTRETIENT Instructions relatives au risque de feu, choc électrique, ou blessures aux per sonnes V euillez Lire le Manuel: Il contient des informations qui de vraient êtres compr ises avant lopération de v otre appareil. Conservez. Gardez S. V.P. ces instr uctions pour consultations ultér ieures et obser vez tous les av ertissements. Netto yez seulement av ec le tissu sec. Emballage: Conservez la boite au cas ou lappareil de vait être retour ner pour réparation. A ver tissement: Pour réduire le r isque de feu ou la décharge électr ique, n'exposez pas cet appareil à la pluie ou à l'humidité. Nutilisez pas cet appareil près de leau! Attention: Lors de lutilisation de produits électr ique, assurez-v ous dadhérer à des précautions de bases incluant celle qui suiv\ ent: AlimentationLappareil ne doit être branché quà une source dalime\ ntation correspondant au v oltage spécifié dans le manuel ou tel quindiqué sur lap\ pareil . Cet appareil est équipé dune pr ise dalimentation polar isée. Ne pas utiliser cet appareil av ec un cordon de raccordement à moins quil soit possib le dinsérer complètement les trois lames. Des précautions doiv ent êtres prises afin de viter que le système de mise à la terre de lappareil ne soit désengagé. RisqueNe pas placer cet appareil sur un char iot, un support, un trépied ou une tab le instables. L appareil pourrait tomber et b lesser quelquun ou subir des dommages impor tants. Utiliser seulement un char iot, un support, un trépied ou une tab le recommandés par le fa br icant ou v endus avec le produit. Suivre les instr uctions du fabricant pour installer lappareil et utiliser les accessoires recommandés par le f abricant. Il con vient de ne pas placer sur lappareil de sources de flammes nues , telles que des bougies allumées. Lappeil ne doit pas être e xposé à des égouttements deau ou des éclaboussures et quaucun objet rempli de liquide tel que des v ases ne doit être placé sur lappareil. Assurez que lappareil est f ourni de la propre v entilation. Ne procédez pas à linstallation près de source de chaleur tels que radiateur s, registre de chaleur, fours ou autres appareils (incluant les amplificateurs) qui produisent de la\ chaleur. Les dispositifs marqués dune symbole déclair sont des par ties dangereuses au toucher et que les câb lages extérieurs connectés à ces dispositifs de connection ex térieure doiv ent être eff ectivés par un opérateur formé ou en utilisant des cordons déjà préparés. Cor don dAlimentationNe pas enlev er le dispositif de sécur ité sur la prise polarisée ou la pr ise avec tige de mise à la masse du cordon dalimentation. Une prise polar isée dispose de deux lames dont une plus large que lautre. Une prise avec tige de mise à la masse dispose de deux lames en plus dune troisième tige qui connecte à\ la masse. La lame plus large ou la tige de mise à la masse est prévu pour v otre sécurité. La pr ise murale est désuète si elle nest pas conçue pour accepter ce\ type de pr ise avec dispositif de sécur ité. Dans ce cas, contactez un électr icien pour faire remplacer la pr ise murale . Évitez dendommager le cordon dalimentation. NUTILISEZ PAS L APP AREIL si le cordon dalimentation est endommagé. Débranchez cet appareil durant les orages ou si inutilisé pendant de longues pér iodes. ServiceConsultez un technicien qualifié pour lentretien de v otre appareil. S2125A
Page 2
1 Configuration The Unity™U15P can be used in several different configurations; a pair of U15Ps used as a small P.A., multiple U15Ps used for wider coverage and U15Ps with subwoofers, which would be best in large venues. The Unity™ U15P utilizes DSP technology with selectable time delays to help time-align the U15P with different subwoofer technolo - gies. When used in a setup where only one signal is provided to an enclosure, such as a mono system or stereo with more than one U15P, you should use one of the Link jacks to daisy-chain the U15ps. The Unity™ U15P has been intended to operate primarily with line level signals and will not func - tion with speaker level signals. 1. U15P Level Control The Level control on the U15P adjusts the amount of volume added to the sound sys - tem. This control also adjusts for the relative sensitivity of any companion enclosures and the overall frequency response. The level control should be set by while operating and listening at a medium level. Once the setting has been established, the level on the U15P should not be changed. It is not recommended to set this control at high levels since the limiter may be engaged and there - fore corrupting the output level unnecessarily! A setting of 12 oclock (0dB) on the U15P Level control is the correct starting point when setting up a sound system. From there, adjustments can be made for the best sound. The 0 dB mark refers to the setting that will give full power when the line input is used and the input signal is at a level of 0 dBVU. A clip LED is provided next the level control to guide the user. 2. Program Select The Program Select control enables the user to vary the time delay of the Unity™ U15P. The table on the back of the U15P is a map as to which delay setting is to be used for each model of Yorkville subwoofer. Subwoofers manufactured by other companies should have a published 100Hz group delay value or the user will have to ascertain the cor - rect setting through measurement (or by ear). A properly aligned multi-cabinet P.A. should yield a flat frequency response. Setting 1 – Stand Alone Full range frequency response (45 Hz – 20 kHz). Use when the U15P is the only speaker in the P.A. The time delay should be set to 0 ms. Introduction The Unity™ U15P is a premium quality 3-way, tri-amped, pow - ered enclosure with an integrated DSP controller. An essential component of a powerful sound reinforcement system, the Unity™U15P has been designed to be easy-to-setup while providing unrivaled clarity and imaging with the least amount of complication during setup. Building on the popularity of the original Unity™ U15, Yorkvilles next logical step was to design a powered, active version. The result is a DSP-driven 900-watt U15P with a 15 inch Low frequency driver and innovative Unity™ mid / high frequency horn. The nature of the Unity™ horn required a cre - ative power amp solution to ensure optimum performance and efficiency. An integrated DSP drives the three-way internal crossover, time alignment, component protection, limiting and the overall cabinet EQ extremely accurately. The DSP controlled time-delayed output, for ac - curate subwoofer alignment, ensures the Unity™ U15P delivers maximum impact in systems where complex external processing isnt the preferred set-up solution. The U15P uses a combination of optimal ampli - fier topographies to ensure reliability and superior loudspeaker performance. A three-tier designed amplifier module delivers 600-watts to the 15 inch neodymium woofer. Two class A/B amplifier mod - ules deliver 150-watts to the Unity™horn assembly, which is comprised of a single 1.75 inch throat mid driver and three 5 inch ceramic mid drivers.
