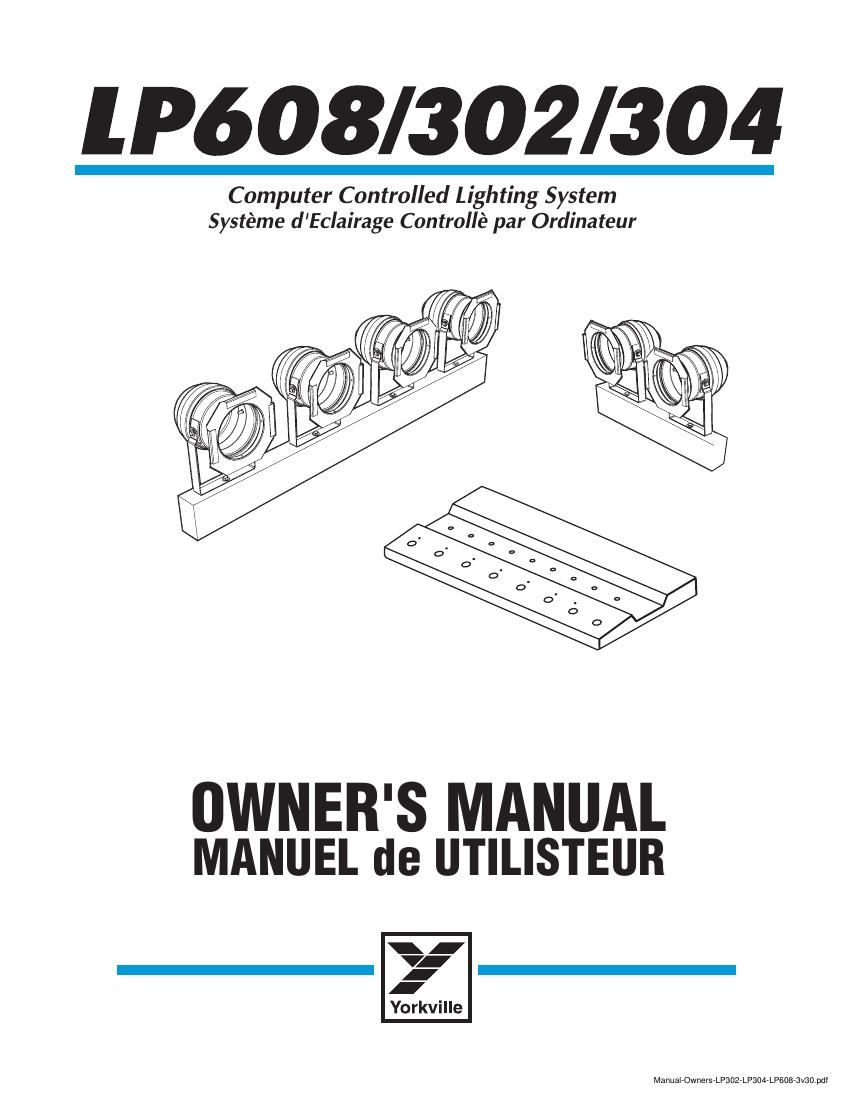

Yorkville lp 302 owners manual
This is the 22 pages manual for yorkville lp 302 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yorkville lp 302 owners manual (Ocr-read)
Page 1
IMPOR TANT SAFETY INSTR UCTIONS safety-4v3.eps - Oct. 26/05 CA UTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NO T REMO VE CO VER (OR BA CK). NO USER SER VICEABLE PA RTS INSIDE. REFER SER VICING TO QU ALIFIED SER VICE PERSONNEL. INSTR UCTIONS PER TA INING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJUR Y TO PERSONS Read Instructions The Owner s Manualshould be read and understood bef ore operation of y our unit. Please , sa ve these instr uc- tions f or future ref erence . Pa ck agin g Keep the bo x and pac kaging mater ials, in case the unit needs to be retur ned f or ser vice . Wa rning When using electr ic products , basic precautions should alw ays be f ollo wed, including the f ollo wing: Po wer Sour ce s Your unit should be connected to a po wer source only of the v oltage specified in the o wners manual or as mar ked on the unit. This unit has a polar ized plug. Do not use with an e xtension cord or receptacle unless the plug can be fully inser ted. Precautions should be tak en so that the grounding scheme on the unit is not def eated. Hazar ds Do not place this product on an unstab le car t, stand, tr ipod, bra cket or table. The product ma y fall, causing ser ious personal injur y and ser ious damage to the product. Use only with car t, stand, tr ipod, bra cket, or table recommended by the manuf acturer or sold with the product. Follow the manuf acturer s instr uctions when installing the product and use mounting accessor ies recommended by the manuf acturer . The apparatus should not be e xposed to dr ipping or splashing w ater ; no objects filled with liquids should be placed on the apparatus . Terminals mar ked with the lightning bolt are hazardous li ve; the exter nal wir ing connected to these ter minals require installation by an instr ucted person or the use of ready made leads or cords . Ensure that proper v entilation is pro vided around the appliance . No nak ed flame sources , such as lighted candles , should be placed on the apparatus . Po wer Cor d The AC supply cord should be routed so that it is unlik ely that it will be damaged. If the AC supply cord is damaged DO NO T OPERA TE THE UNIT . ServiceThe unit should be ser viced only by qualified ser vice personnel. A VIS: AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE,NENLEVEZ P AS LE COUVER T (OU LE P ANNEA U ARRIERE) NE CONTIENT AU CUNE PIECE REP ARABLE P AR LUTILISA TEUR. CONSU LT EZ UN TECHNICIEN QU ALIFIE POUR L ENTRETIENT INSTR UCTIONS RELA TIVES AU RISQUE DE FEU , CHOC ÉLECTRIQUE, OU BLESSURES AU X PERSONNES Ve uillez Lire le Manuel Il contient des inf ormations qui de vraient êtres compr ises avant lopération de v otre appareil. Conser vez S.V.P. ces instr uctions pour consultations ultér ieures . Emballage Conser vez la boite au cas ou lappareil de vait être retour ner pour réparation. Attention : Lors de lutilisation de produits électr ique , assurez- vous dadhérer à des précautions de bases incluant celle qui suiv ent: AlimentationLappareil ne doit être branché quà une source dalime\ ntation correspondant au v oltage spécifié dans le manuel ou tel quindiqué sur lappareil . Cet appareil est équipé dune pr ise dalimentation polar isée . Ne pas utiliser cet appareil avec un cordon de raccordement à moins quil soit possib le dinsérer complètement les trois lames . Des précautions doiv ent êtres pr ises afin de viter que le système de mise à la terre de lappareil ne soit désengagé. RisqueNe pas placer cet appareil sur un char iot, un suppor t, un trépied ou une table instab les. Lappareil pourrait tomber et b lesser quelquun ou subir des dommages impor tants . Utiliser seulement un chariot, un suppor t, un trépied ou une ta ble recommandés par le f abr icant ou v endus avec le produit . Suivre les instructions du f abr icant pour installer lappareil et utiliser les accessoires recommandés par le f abr icant. Il con vient de ne pas placer sur lappareil de sources de flammes nues, telles que des bougies allumées . Lappeil ne doit pas être e xposé à des égouttements deau ou des éclaboussures et quaucun objet rempli de liquide tel que des v ases ne doit être placé sur lappareil . Assurez que lappareil est f our ni de la propre v entilation. Les dispositifs marqués dune symbole déclair sont des par ties dangereuses au toucher et que les câb lages e xtér ieurs connectés à ces dispositifs de connection e xtér ieure doiv ent être eff ectivés par un opérateur formé ou en utilisant des cordons déjà préparés . Cor don dAlimentatio n Évitez dendommager le cordon dalimentation. NUTILISEZ P AS LAPP AREIL si le cordon dalimentation est endommagé. ServiceConsultez un technicien qualifié pour lentretien de v otre appareil .
Page 2
LP608/LP302/LP304 This easy-to-use lighting system was developed by Yorkville Sound. Extensive research and close collaboration with actual users helped create a system that has everything you need to light an average sized band. The L P608/LP302/LP304 Lighting System outperforms many more expen - sive lighting systems and can be easily transported in a small car. The Yorkville LP608 Foot Controller responds to a light finger touch, a tap of a foot on the switches and to MIDI commands (through its MIDI interface). Scene changes have never been easier. CAUTION: Please read and follow these instructions carefully to assure yourself full and safe use of the LP302 Dimmer Bar, the LP304 Dimmer Bar and the LP608 Foot Controller. Like all lighting systems, this is a potentially dangerous electrical product. We cannot accept the responsibility for injury due to negli - gence or faulty interpretation of the instructions. After studying this manual, if you are uncertain of electri - cal connections, or of how to use our lighting system, please seek qualified technical assistance. Contact an authorized Yorkville Sound Dealer. SetuP A standard setup can include an LP608 Foot Controller and two LP304 Dimmer Bars (or four LP302 Dimmer Bars ). The AC power cord of each dimmer bar needs to be plugged into separate 120VAC standard receptacles. A control cable must be connected from each bar to the foot con - troller. You dont need to plug the foot controller into an AC outlet because the power required is supplied through the control cable from the dimmer bar/s. Note: It is possible to connect multiple LP-302s and/or LP304's in a given system. The limit is approximately 10 Dimmer Bars for each LP608 Foot Controller (also depending on cable length). CAUTION a. To prevent electrical shock, set up and operate the lighting system in dry sheltered areas only. b. Your lighting system must be properly grounded. Proper grounding offers you and your audiences pro - tection from electric shock, and its possible fatal consequences. c. Never break off the U-ground pin on the Dimmer Packs AC line cord. Ensure that all extension cords are properly grounded. d. When using a self-supporting stand, place on a flat level surface; extend the legs to cover the largest area possible. This will reduce the possibility of the stand toppling over. e. Unplug the dimmer bar AC line cord when changing the par can bulbs. Replace with same type 300 Watt PAR56/NSP bulbs. LP302 D immer B ar The LP302 Dimmer Bar consists of two par cans mounted on a rectangular steel beam that houses a two-channel dimmer pack. The steel beam is designed to mount onto a self-supporting stand with a pipe diameter of 1-3/8 inch. i. Use of LP302 Without an LP Series Controller If it's not needed to dim the lights, or use presets, the LP302 can be used without a con - troller. The Channel Override and Channel 2 Override switches select which light is activated. Also, a standard footswitch can be used to blackout the lights. It's also possible to link units together (and black out all the lights) by using a single footswitch. Connect to the downstream units using the Blackout or Link jacks. A two conductor phone plug (Tip-Sleeve) or a three conductor (Tip-Ring-Sleeve) 1/4 inch cable for linking when using a footswitch.
