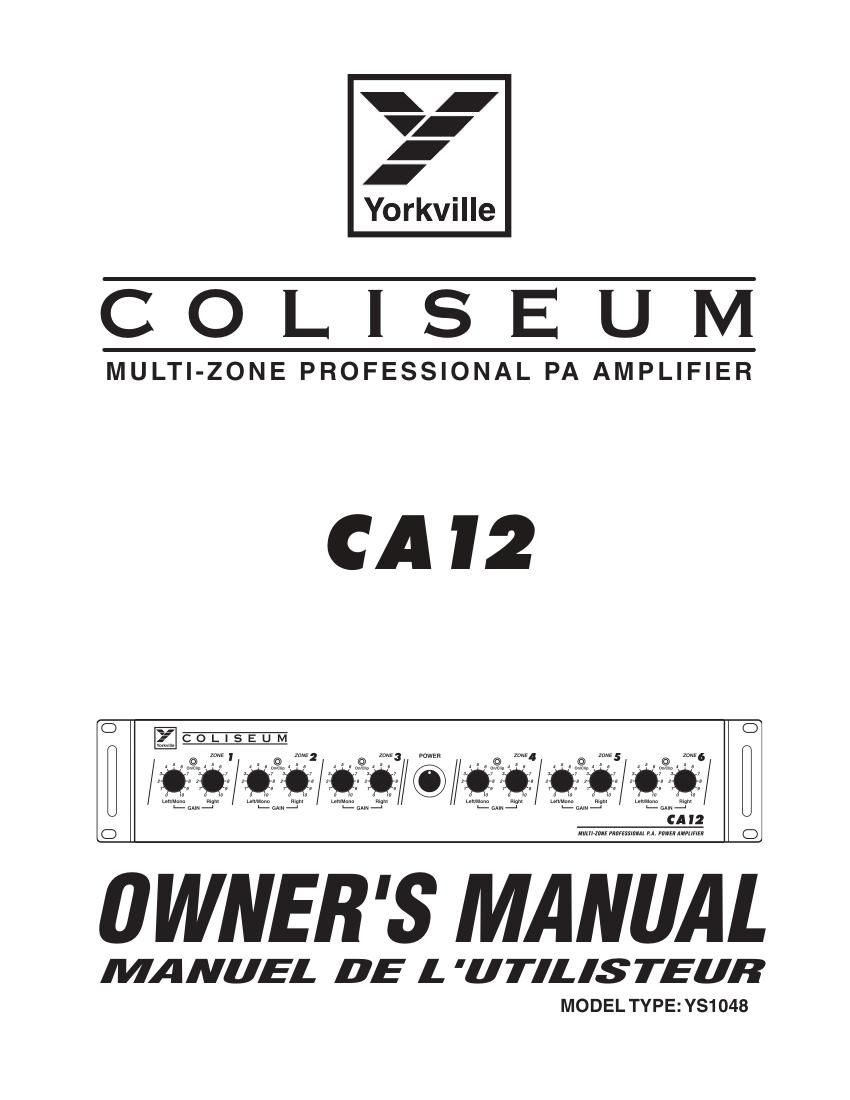

Yorkville ca 12 owners manual
This is the 12 pages manual for yorkville ca 12 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yorkville ca 12 owners manual (Ocr-read)
Page 1
IMPORTANT SAFETY INSTR UCTIONS safety-4v3.eps - Oct. 26/05 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NO T REMO VE COVER (OR BA CK). NO USER SER VICEABLE PARTS INSIDE. REFER SER VICING TO QU ALIFIED SER VICE PERSONNEL. INSTR UCTIONS PER TAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJUR Y TO PERSONS Read Instructions The Owner s Manualshould be read and understood bef ore operation of y our unit. Please, save these instr uc- tions f or future ref erence. Packagin g Keep the bo x and packaging mater ials, in case the unit needs to be retur ned for ser vice. Warning When using electr ic products, basic precautions should alw ays be f ollowed, including the f ollowing: Power Sour cesYour unit should be connected to a po wer source only of the voltage specified in the o wners manual or as mar ked on the unit. This unit has a polar ized plug. Do not use with an e xtension cord or receptacle unless the plug can be fully inser ted. Precautions should be tak en so that the grounding scheme on the unit is not def eated. HazardsDo not place this product on an unstab le cart, stand, tr ipod, bracket or tab le. The product ma y fall, causing ser ious personal injur y and serious damage to the product. Use only with cart, stand, tripod, bracket, or tab le recommended by the manufacturer or sold with the product. Fo llow the manuf acturers instructions when installing the product and use mounting accessor ies recommended by the manufacturer. The apparatus should not be e xposed to dripping or splashing w ater; no objects filled with liquids should be placed on the apparatus . Te rminals mar ked with the lightning bolt are hazardous live ; the e xter nal wir ing connected to these ter minals require installation by an instr ucted person or the use of ready made leads or cords . Ensure that proper v entilation is provided around the appliance . No nak ed flame sources , such as lighted candles , should be placed on the apparatus . Power Cor dThe AC supply cord should be routed so that it is unlik ely that it will be damaged. If the AC supply cord is damaged DO NO T OPERATE THE UNIT . ServiceThe unit should be ser viced only by qualified service personnel. AVIS: AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, NENLEVEZ P AS LE COUVER T (OU LE PANNEAU ARRIERE) NE CONTIENT AU CUNE PIECE REP ARABLE P AR LUTILISA TEUR. CONSULT EZ UN TECHNICIEN QU ALIFIE POUR L ENTRETIENT INSTRUCTIONS RELA TIVES AU RISQUE DE FEU , CHOC ÉLECTRIQUE, OU BLESSURES AU X PERSONNES Veuillez Lire le Manuel Il contient des inf ormations qui de vraient êtres compr ises av ant lopération de v otre appareil. Conservez S. V.P. ces instr uctions pour consultations ultér ieures. Emballage Conser vez la boite au cas ou lappareil de vait être retour ner pour réparation. Attention: Lors de lutilisation de produits électr ique, assurez- vo us dadhérer à des précautions de bases incluant celle qui suiv ent: AlimentationLappareil ne doit être branché quà une source dalime\ ntation correspondant au v oltage spécifié dans le manuel ou tel quindiqué sur lappareil. Cet appareil est équipé dune pr ise dalimentation polarisée. Ne pas utiliser cet appareil av ec un cordon de raccordement à moins quil soit possib le dinsérer complètement les trois lames . Des précautions doiv ent êtres prises afin de viter que le système de mise à la terre de lappareil ne soit désengagé. RisqueNe pas placer cet appareil sur un char iot, un support, un trépied ou une tab le instab les. Lappareil pourrait tomber et b lesser quelquun ou subir des dommages impor tants. Utiliser seulement un chariot, un suppor t, un trépied ou une tabl e recommandés par le f abricant ou v endus avec le produit. Suivre les instructions du f abricant pour installer lappareil et utiliser les accessoires recommandés par le f abricant. Il con vient de ne pas placer sur lappareil de sources de flammes nues, telles que des bougies allumées . L appeil ne doit pas être e xposé à des égouttements deau ou des éclaboussures et quaucun objet rempli de liquide tel que des v ases ne doit être placé sur lappareil. Assurez que lappareil est f ourni de la propre v entilation. Les dispositifs marqués dune symbole déclair sont des par ties dangereuses au toucher et que les câb lages extérieurs connectés à ces dispositifs de connection e xtérieure doiv ent être eff ectivés par un opérateur formé ou en utilisant des cordons déjà préparés . Cordon dAlimentationÉvitez dendommager le cordon dalimentation. NUTILISEZ PAS L APP AREIL si le cordon dalimentation est endommagé. ServiceConsultez un technicien qualifié pour lentretien de v otre appareil.
Page 2
1 COLISEUM CA12 Multi-Zone Professional PA Amplifier Introduction The CA12 is a major step forward in installation amplifier technology. Twelve mono Zone power amplifiers, featuring 85% class D design technology, can operate as 6 independent Zone amplifiers. Self-explanatory Input and Output connections are easy to follow since any of the 12 mono amplifiers can be connected to either 70-Volt, 8-Ohm or 4-ohm speaker circuits. Each of the 12 mono amplifiers has their own input and output connectors and level controls. Up to 6 stereo Zones (4-ohm or 70-Volt at 50 Watts / channel), 6 mono/bridged Zone amplifiers (110 Watt bridged 8-ohm or 140-Volt). Each Zone can be configured independently allowing a combination of Stereo 4-ohm or 70 Volt and Mono/Bridged 8-ohm or 140 Volt Zones. Dual-function LEDs on the front panel provide both activity and Clip indication for each pair of amplifiers, which also have their own button-selectable Limiter; Stereo/Bridge modes and 4-ohm/70V modes are also selectable. The Ch. Input Line/Bus switch selects between either the Bus Input (button depressed) or the individual Zones Input signal. Additional features include: any amplifier with no signal at its input is automatically shut off and the CA12 is able to operate either on 120V/60Hz or 220V/50Hz AC mains. Features and Functions AC Mains. The CA12 comes configured to connect to 115V/60Hz mains. For use with 230V/50Hz mains set the rear panel Voltage Select switch to 230V (also, replace the T10.0AL/250V fuse with a T5.0AL/250V fuse). Front Panel 1. Left/Mono and Right ControlsThese controls regulate the level for each amplifier. For the Zones set up in Mono/Bridge mode only the Left/Mono Control will affect the level. 2. On/Clip LEDThe individual channels On/Clip LED will flash to indicate activity, flashing red will indicate clipping. Reduce levels if clipping is indicated (the LED does not indicate which Zone channel is clipping). 3. PowerThis switch turns the AC mains On or Off. 1 2 3
