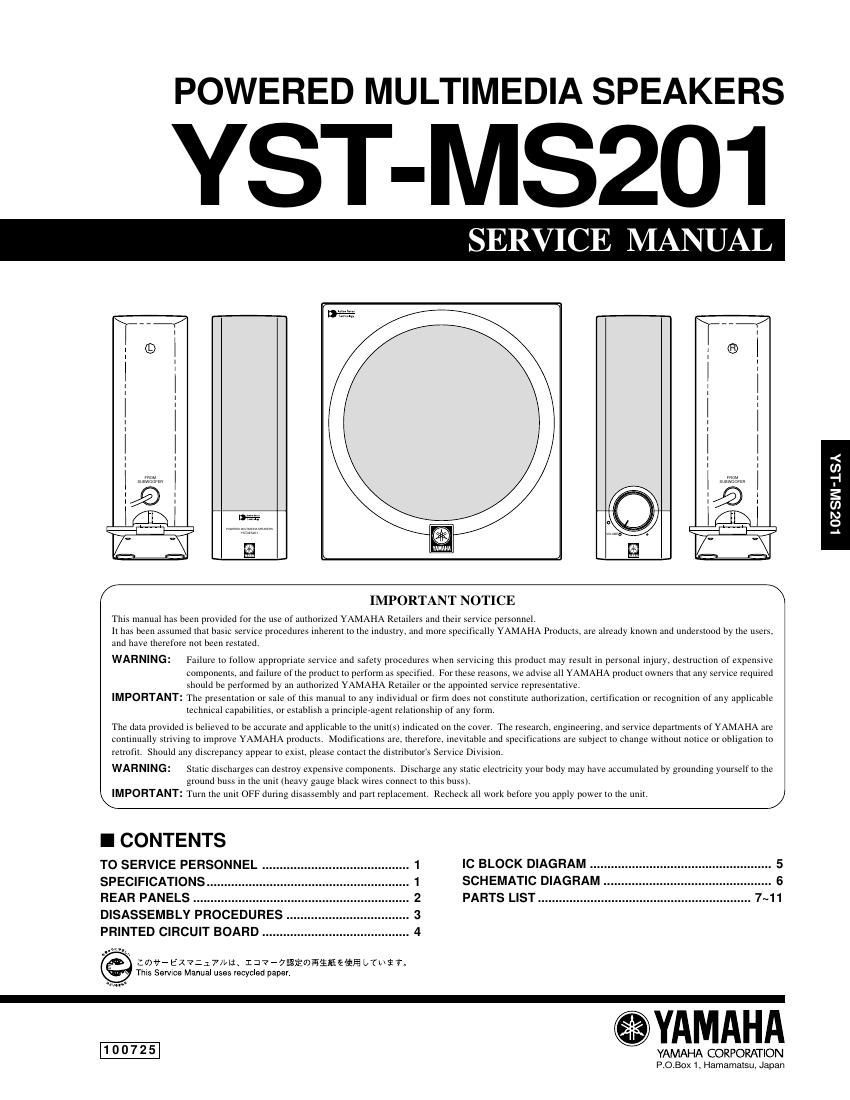

Yamaha yst ms201
This is the 12 pages manual for yamaha yst ms201.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha yst ms201 (Ocr-read)
Page 1
YST-MS201 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE 1 WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. SPECIFICATIONS TypeActive Servo Technology Driver Satellite 8.5 cm (3-3/8") x 4.5 cm (1-3/4") cone Magnetically shielded type Subwoofer 12 cm (4-3/4") cone Magnetically shielded type (JA1287) Amplifier Output Satellite 6 W + 6 W (1 kHz, 4Ω at T.H.D.=10%) Subwoofer 18 W (100 Hz, 4Ω at T.H.D.=10%) Input Sensitivity200 mV (1 kHz, 4 Ω at 6 W) Input Impedance20 kΩ Frequency Response45 Hz to 20 kHz (Satellite + Subwoofer) TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. Power Supply U.S.A. and Canada models AC 120V, 60 Hz U.K. and Europe models AC 230V, 50 Hz Australia model AC 240V, 50 Hz Dimensions (W x H x D) Satellite 70 x 195 x 145 mm (2-3/4" x 7-11/16" x 5-11/16") Subwoofer 193 x 207 x 214 mm (7-5/8" x 8-1/8" x 8-7/16") Weight Satellite 0.6 kg (1.3 lb.) / R ch unit 0.5 kg (1.1 lb.) / L ch unit Subwoofer 2.8 kg (6.2 lb.) FinishWhite, Black AccessoryAC Adaptor (DC 15V, 1.2A) x 1 * Specifications subject to change without notice. J ......... Japan model U .... U.S.A. model C ........ Canada model R .... General model A ........ Australia model B ..... British model G ........ Europe model
Page 2
YST-MS201 VOLUME POWERED MULTIMEDIA SPEAKERSYST-MS201 195 (7-11/16") 207 (8-1/8") 214 (8-7/16") 70 (2-3/4") 193 (7-5/8") 60 (2-3/8") 70 (2-3/4") 60 (2-3/8") 145 (5-11/16") 128 (5-1/16") 2 REAR PANELS (Subwoofer)
