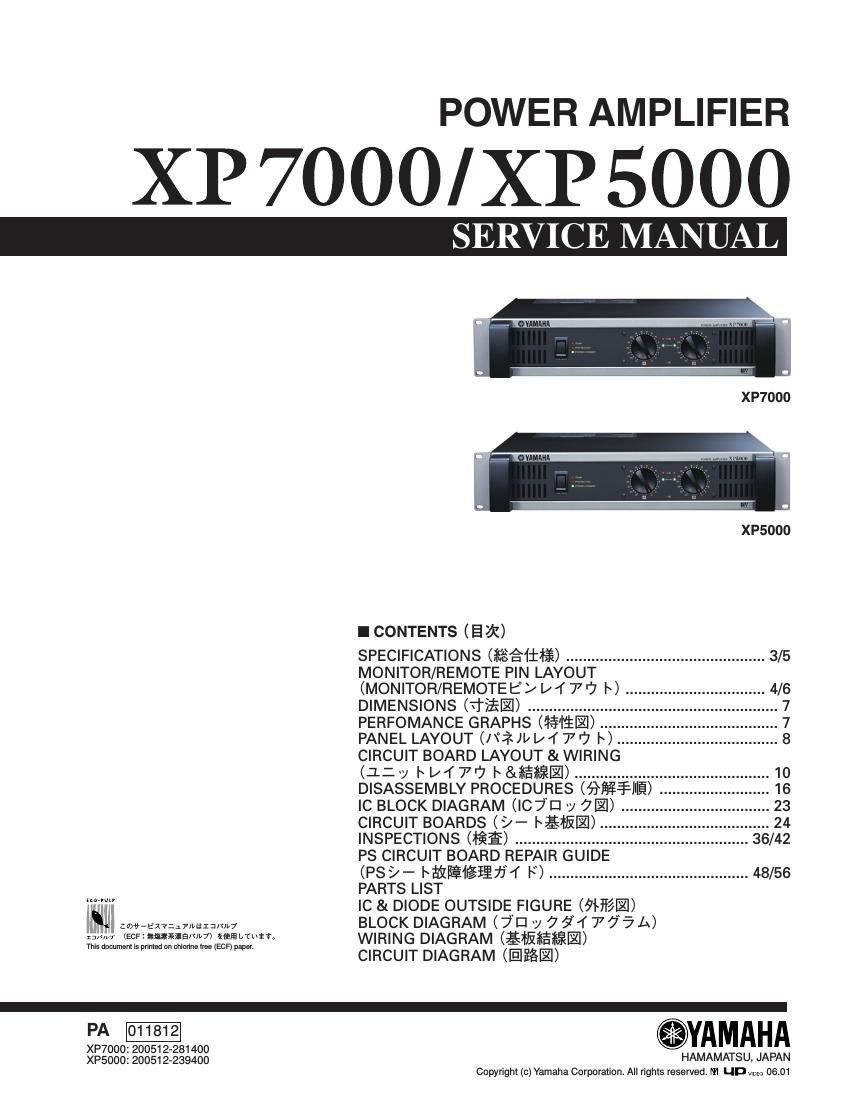

Page 1

POWER AMPLIFIER

XP 7000/XP 5000

SERVICE MANUAL

1:007 6x7;17m:1:/w7
(ECF E MEiXJE/Ubfi EMF} [XII/37.
ms document Is prIrIlefl an chlovme has (ECPI paper.

XP7000

xpsooo
I CONTENTS (Em

SPECIFICATIONS (RB/SETS) ............................................... 3/5
MONITOR/REMOTE PIN LAYOUT

(MONITOR/REMOTEE/ 1/4 77 I) ................................. 4/6
DIMENSIONS MB.) ............................. 7
PERFOMANCE GRAPHS (WEI) .. .. 7
PANEL LAYOUT (/\°*}lxl/f7'7 I~> ...................................... 8
CIRCUIT BOARD LAYOUT & WIRING

(:L:~y |~l/f7'7 Imagil) .............................................. 1O
DISASSEMBLY PROCEDURES (fifififllfi) 16
IC BLOCK DIAGRAM (IC7'E1y 7|) . 23
CIRCUIT BOARDS (>- I~§Ifil> .. ....... 24
INSPECTIONS (IRE) ....................................................... 36/42
PS CIRCUIT BOARD REPAIR GUIDE

(Ps~>- bflfififléiflfir F) ............................................... 48/56
PARTS LIST

IC & DIODE OUTSIDE FIGURE (WEI)
BLOCK DIAGRAM (7I:I ,, 7 51% 7751.0
WIRING DIAGRAM (grfififil)

CIRCUIT DIAGRAM (marl)

PA

XP7000: 200512281400
XPSOOO: 200512239400

.YAMAHA

HAMAMATSU, JAPAN
Copyright (C) Yamaha Corporation. All rights reserved. M upvm 06.01

Page 2

XP7000/XP5000

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their sen/ice personnel. It has been assumed that basic service
procedures inherent to the industry, and more specifically Yamaha Products, are already known and under stood by the users, and have
therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in per-sonal injury, destruc-
tion of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha
product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service
representative.

IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of
any applicable technical capabilities, or establish a principal-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit (5) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specifica-
tion are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service
Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by
grounding yourself to the ground bus in the unit (heavy gauge black wiresonnect to this bus).

IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck a_H work before you apply power to the unit.

WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable)

components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause
cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO
EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux
vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.

IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord

WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:
GREEN-AND-YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your
plug proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety
earth symbol 9 or colored GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

- This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd. (3 wires)

I WARNING

Components having special characteristics are marked A and must be replaced with parts having specification equal to those originally
installed.

&EII®5ISIIIJI1\ éfé-EEfléfifizficbiligficfifitfitfjo iffiféafifili. ££®f¢®ii£~f¥fii®flfifiéfi§iifi < fféwo
