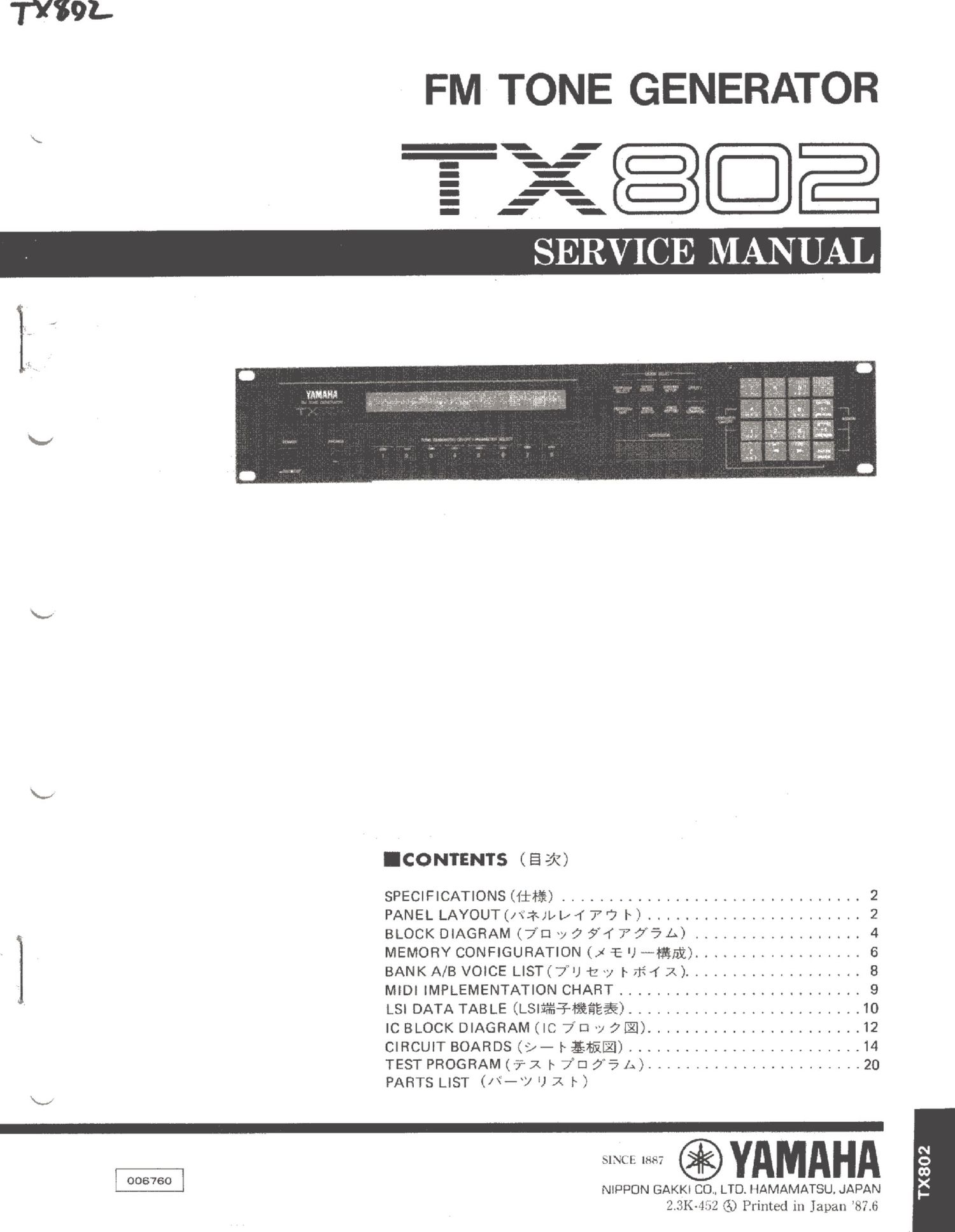

Page 1

17192.

006760

FM ONE GENERATOR

mm _'

.CON'I'ENTS (E 5X)

SPECIFICATIONS (ffli) ................................ 2
PANEL LAYOUT(/\3?~)l/Lz47'7 I~) ....................... 2
BLOCK DIAGRAM (7°13 xyosWTaaL/A) .................. 4
MEMORY CONFIGURATION (x E ') ~I§fifg> .................. 6
BANKA/B VOICE LIST(7"'Jtv til-I42) ................... 8
MIDI IMPLEMENTATION CHART .......................... 9
LSI DATA TABLE (LSIfi-Hfifiéaa ......................... 10
IC BLOCK OIAGRAM CIRCUIT BOARDS<~>-l~£fi><) ......................... 14
TEST PROGRAM(7"~X I 7°137'5A) ....................... 20

PARTS LIST (If-7 I) X I)

.YAMAHA

NIPPON GAKKI CO. LTD. HAMAMATSU. JAPAN
2.3K.452 6) Printed in Japan 87.6

Page 2

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It
has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha
Products, are atready known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product
may result in personal injury, destruction of expensive components and failure of the
product to perform as specified For these reasons. we advise all Yamaha product owners
that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute
authorization, certification, recognition of any applicable technical capabilities, or
establish a principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unitls) indicated on the cover.The

research,' engineering, and 'service departments of Yamaha are continually Striving to improve Yamaha

products. Modifications are therefore, inevitable and changes in specification are subject to change without

~ notice or obligation to retrofit Should any discrepancy appear to exist please contact the distributor's
Service Division. . .

WARNING: Static discharges can destroy expensive components Discharge any static electricity your
. body may have accumulated by grounding yourself to the ground buss' in the unit (heavy
gauge black wires connect to this buss).

IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck fl work before
you apply power to the unit.

This product uses a lithium battery for memory back-up.

WARNING: Lithium batteries are dangerous because they can be exploded by improper handling.
Observe the following precautions when handling or replacing lithium batteries.

0

Leave lithium battery replacement to qualified service personnel.

Always replace with batteries of the same type.

When installing on the PC board, solder using the connection terminals provided on the battery cells.
Never solder directly to the cells. Perform the soldering as quickly as possible.

Never reverse the battery polarities when installing.

Do not short the batteries.

Do not attempt to recharge these batteries.

00 not disassemble the batteries.

Never heat batteries or throw them into fire.

ADVARSEL!

Lithiumbatteri. Eksplosionsfare.
Udskiftning m5 kun foretages af en sagkyndig, 03 Sum beskrevet i servicemanualen.
