Yamaha stagepas 150m service manual

Page 1

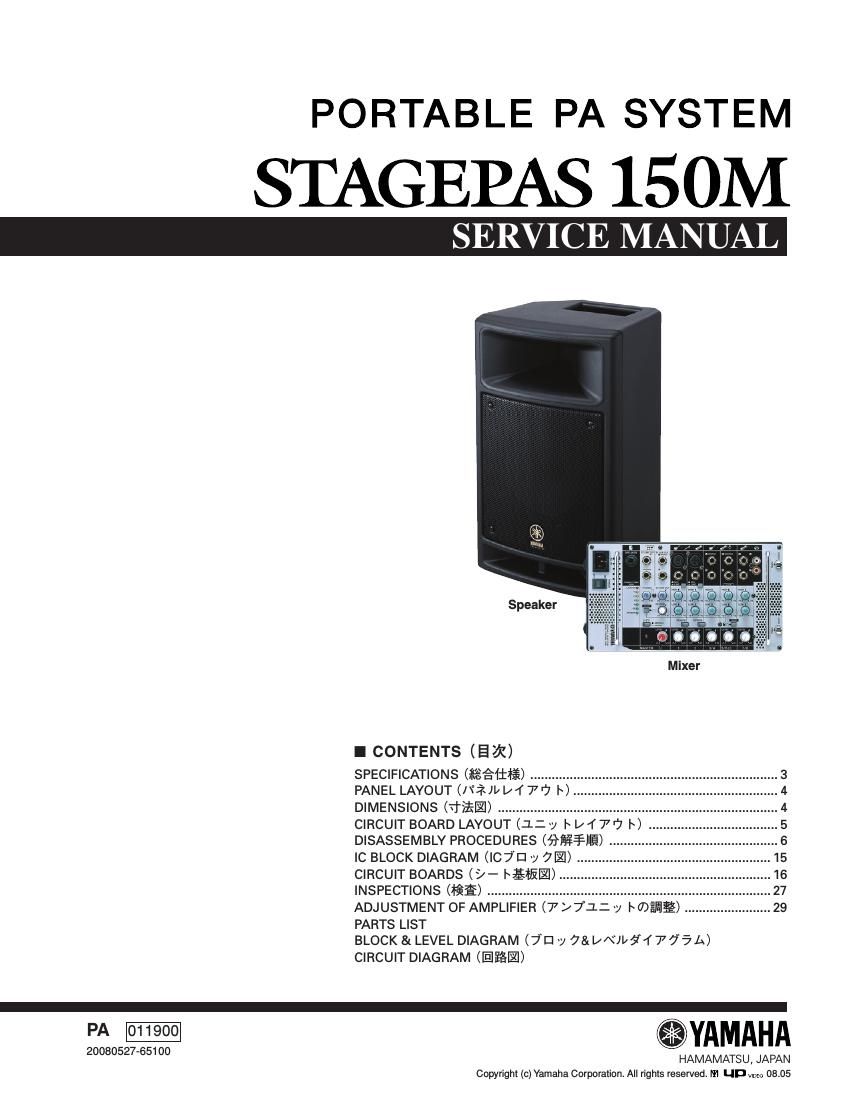

PORTABLE PA SYSTEM

STAGEPAS 150M

Speaker

I CONTENTS (Em)

SPECIFICATIONS (Mama) ...............
PANEL LAYOUT (Will; I/{ 7-7 I)
DIMENSIONS (vhf!) ........................
CIRCUIT BOARD LAYOUT (1: y I 1/4 7-7 I)
DISASSEMBLY PROCEDURES (Maxims)
IC BLOCK DIAGRAM (IC 7I:I u
CIRCUIT BOARDS (>- NEW.) .......
INSPECTIONS (1&3) ............................................................
ADJUSTMENT 0F AMPLIFIER (7 >71: y I~ mam) .....
PARTS LIST

BLOCK & LEVEL DIAGRAM (7n ~y 7&I/wsi4 775A)
CIRCUIT DIAGRAM (EE§I)

PA .YAMAHA

2008052765100 HAMAMATSU, JAPAN
Copyrigm (C) Yamaha Corporation. All rights reserved. M unvm 08.05

Page 2

STAGEPAS 150M

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service
procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have
therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruc-
tion of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha
product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service
representative.

IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of
any applicable technical capabilities, or establish a principal-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specifica-
tion are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service
Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by
grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus).

IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck a_|| work before you apply power to the unit.

WARNING: This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO
EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux
vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
