Yamaha rx v620
This is the 84 pages manual for yamaha rx v620.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha rx v620 (Ocr-read)

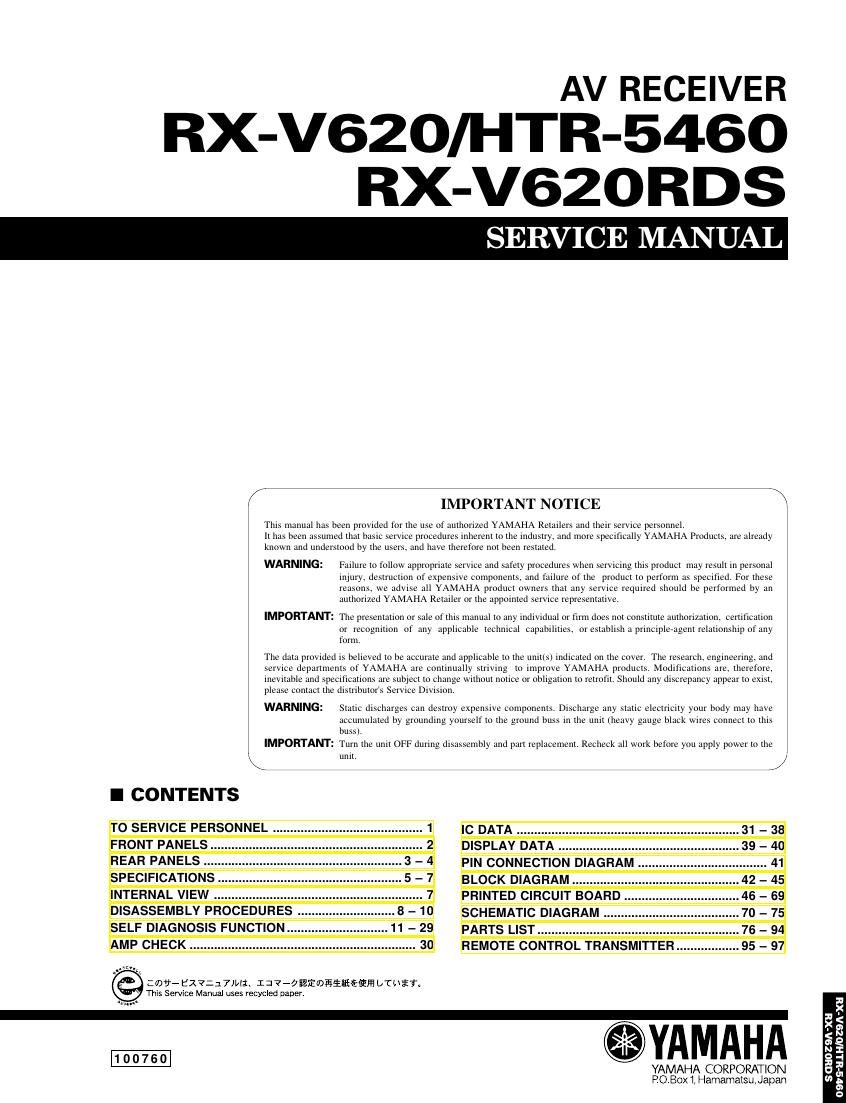

Page 1
RX-V620/HTR-5460/RX-V620RDS RX-V620/HTR-5460 RX-V620RDS TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. Leakage current must not exceed 0.5mA. AC LEAKAGE TESTER OR EQUIVALENT EQUIPMENT UNDER TEST INSULATING TABLE WALL OUTLET 1 WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/ electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. IMPEDANCE SELECTOR WARNING Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged. Be sure to test for leakage with the AC plug in both polarities. CAUTION F741 : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 2A, 125V FUSE. F742 : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A, 125V FUSE. CAUTION F741 : REPLACE WITH SAME TYPE 2A, 125V FUSE. F742 : REPLACE WITH SAME TYPE 8A, 125V FUSE. ATTENTIONF741 : UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 2A, 125V. F742 : UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 8A, 125V. A V
Page 2
RX-V620/HTR-5460/RX-V620RDS RX-V620/HTR-5460 RX-V620RDS 2 RX-V620/HTR-5460 RX-V620RDS SILENT VIDEO AUX PHONES S VIDEO VIDEO L AUDIO R OPTICAL 6CH INPUT INPUT MODE INPUT VOLUME PRESET /TUNING EDITMEMORY EFFECT MAN'L/AUTO FM TUNING MODE AUTO/MAN'L MONO FM/AM DSP PROGRAM BASS TREBLE SPEAKERS AB OFF ON OFFON STANDBY /ON DIGITAL BASS EXTENSION –+ –+ SURROUNDDIGITAL FRONT PANELS SILENT VIDEO AUX PHONES S VIDEO VIDEO L AUDIO R OPTICAL 6CH INPUT INPUT MODE INPUT VOLUME RDS MODE/FREQ EON PTY SEEK MODE START PRESET /TUNING EDITMEMORY EFFECT MAN'L/AUTO FM TUNING MODE AUTO/MAN'L MONO FM/AM DSP PROGRAM BASS TREBLE SPEAKERS AB OFF ON OFFON STANDBY /ON DIGITAL BASS EXTENSION –+ –+ SURROUNDDIGITAL A/B/C/D/E
