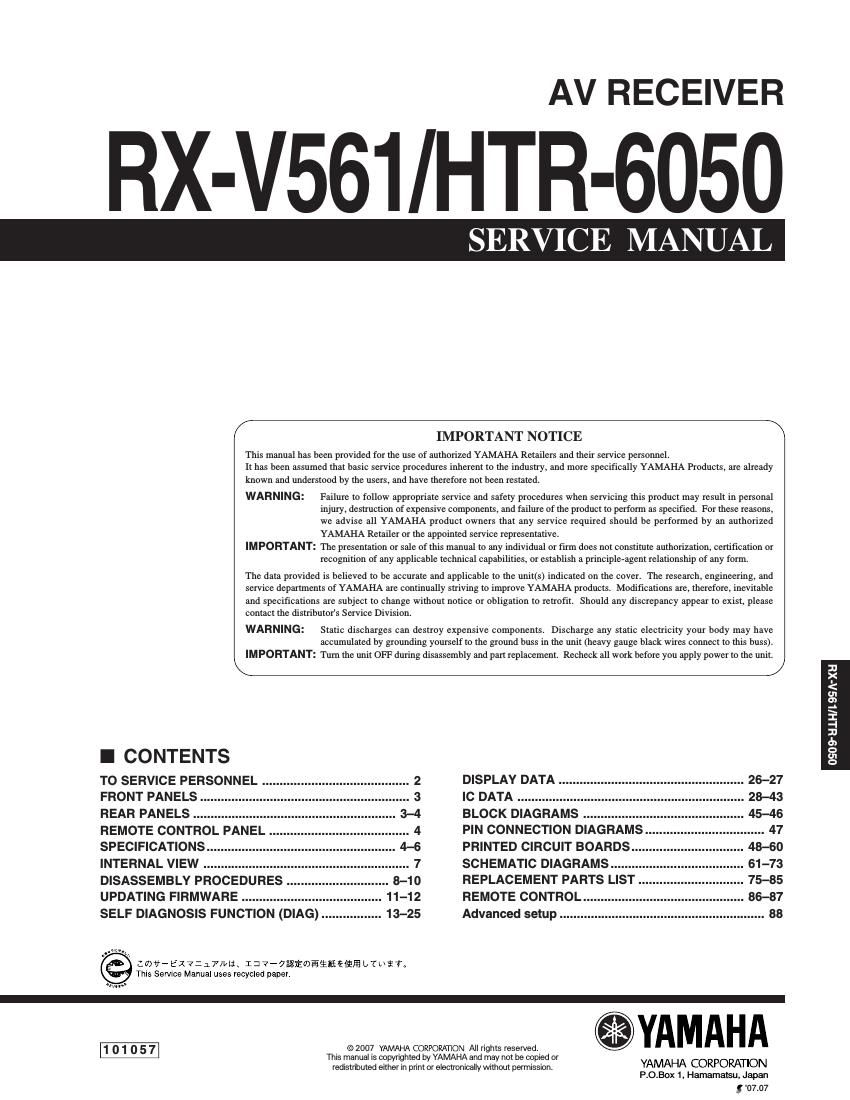

AV RECEIVER

RX-V561/HTR-6050

SERVICE MANUAL

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization. cenitication or
recognition of any applicable technical capabilities, or establish a principleragent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
Contact the distributors Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Tum the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

D
>.<
<
us
an
i
I
.4
3.
m
c
U!
o

I CONTENTS

TO SERVICE PERSONNEL 2
FRONT PANELS 3
REAR PANELS 3-4
REMOTE CONTROL PANEL 4
SPECIFICATIONS...................................................... 4-6
INTERNAL VIEW 7
DISASSEMBLY PROCEDURES 8-10
UPDATING FIRMWARE 11-12
SELF DIAGNOSIS FUNCTION (DIAG) 13-25

:awe 5x7:171bl1. 1:777iéimfiififififfiffi buxzh
This Service Manual uses recycled paper.

© 2007 YAMAHA CORPORATJON All rights reserved.
This manual is copyrighted by VAMAHA and may not be copied or
redistributed either in print oreleclmnlcally Without permission.

DISPLAY DATA 26-27
BLOCK DIAGRAMS 45-46
PIN CONNECTION DIAGRAMS 47
PRINTED CIRCUIT BOARDS 48-60
SCHEMATIC DIAGRAMS 61-73
REPLACEMENT PARTS LIST 75-85
REMOTE CONTROL 86-87
Advanced setup 88

fiYAMAHA

YAMAHA CORPORATION
P.O.Box 1. Hamamaisu, Japan
g '07 .07

Page 2

O
in
O
E
n:
._
:i:
\
G
In
>.
x
u:

RX-V561lHTR-6050

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked I and WALL EQUIPMENT TESTER OR
OUTLET UNDER TEST EQUIVALENT

must be replaced with parts having specifications equal to those

originally installed. ® D-

2. Leakage Current Measurement (For 120V Models Only) J_-
When service has been completed, it is imperative to verily INSULATING =
that all exposed conductive surfaces are properly insulated TABLE
from supply circuits.
0 Meter impedance should be equivalent to 1500 ohms shunted o Leakage current must not exceed 0.5mA.
by 01 SILF' 0 Be sure to test for leakage with the AC plug in both polarities.
For U model
E9 CAUTION

iAiv F2251, F2252: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME
TYPE 6A, 125V FUSE."

For C model
CAUTION
F2251, F2252: REPLACE WITH SAME TYPE 6A, 125V FUSE.

ATTENTION ,
F2251, F2252: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 6A, 125V.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About lead free solder
All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.

Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair
work.

- Sn + Ag + Cu (tin + silver + copper)
- Sn + Cu (tin + copper)
- Sn + Zn + Bi (tin + Zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure
to use a soldering iron suitable to each solder.
