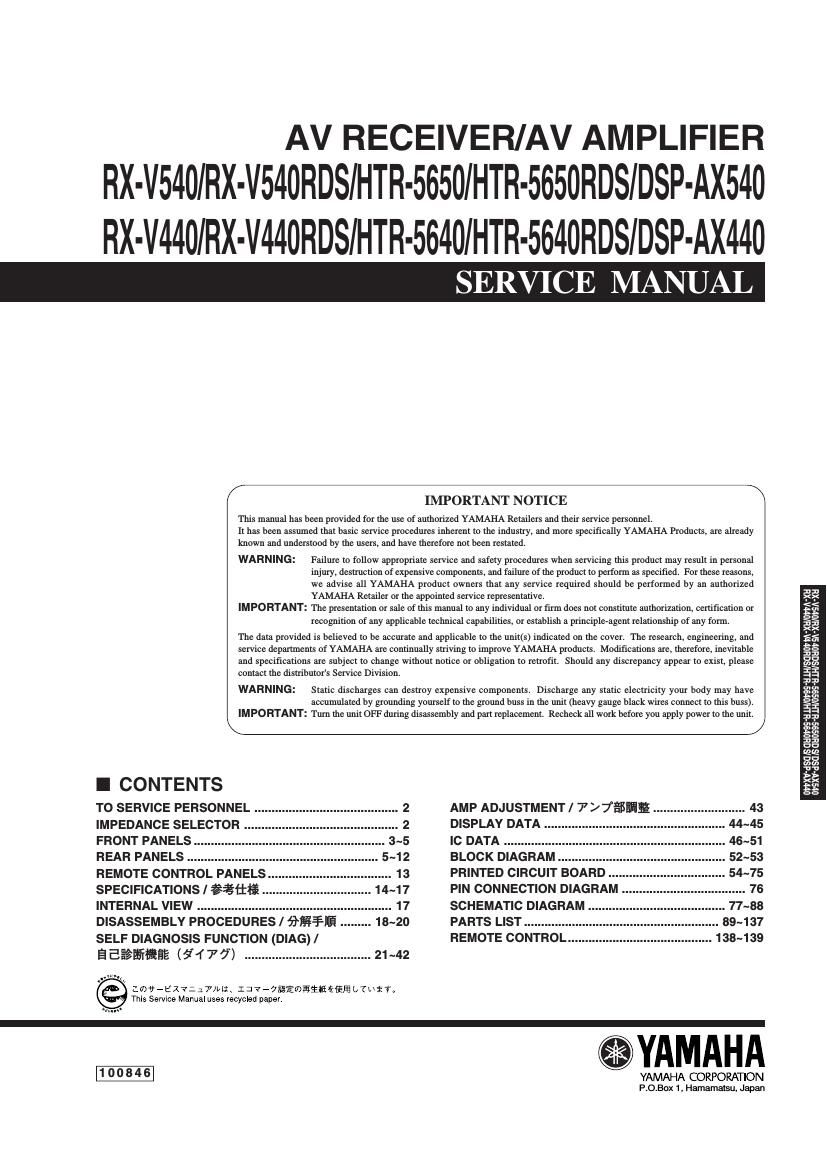

AV RECEIVER/Av AMPLIFIER
RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540

RX-V440/RX-V440RDS/HTR-5640/HTR-5640RDS/DSP-AX440

ER ICE MANUAL

IMPORTANT NOTICE

This manual has been provided for the use of athDrized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry. and more specifically YAMAHA Products, are already
known and understood by the users. and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product tnay result in personal
injury, destruction of expensive components. and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed serVice representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization. certification or
recognition of any applicable technical capabilities, or establish a principleragenl relationship of any form.

The data provided is believed to be accurate and applicable lo the uniI(s) indicated on the cover, The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subjeci to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please

comaci (he dislnbulors Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

I CONTENTS

To SERVICE PERSONNEL
IMPEDANCE SELECTOR ..
FRONT PANELS
REAR PANELS.
REMOTE CONTROL PANELS.
SPECIFICATIONS / 3%Iifi
INTERNAL VIEW .
DISASSEMBLY PROCEDURES / fiflitilillfi
SELF DIAGNOSIS FUNCTION (DIAG)/

BEE/QWREE (£477) ..................................... 21~42

.. 3~5
5~12
13
14~17
. 17
18~20

C(Dfl'i EX7LJTH/I1s 1:777igimfiifliéfilfi aniis
This Servlce Manual uses recycled papa-v

AMP ADJUSTMENT / 7 >7°¥II§§§§
DISPLAY DATA ...............................
IC DATA ...........
BLOCK DIAGRAM .
PRINTED CIRCUIT BOARD .
PIN CONNECTION DIAGRAM
SCHEMATIC DIAGRAM .
PARTS LIST ..............
REMOTE CONTROL .......................................... 138~139
