Yamaha rx v520
This is the 66 pages manual for yamaha rx v520.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha rx v520 (Ocr-read)

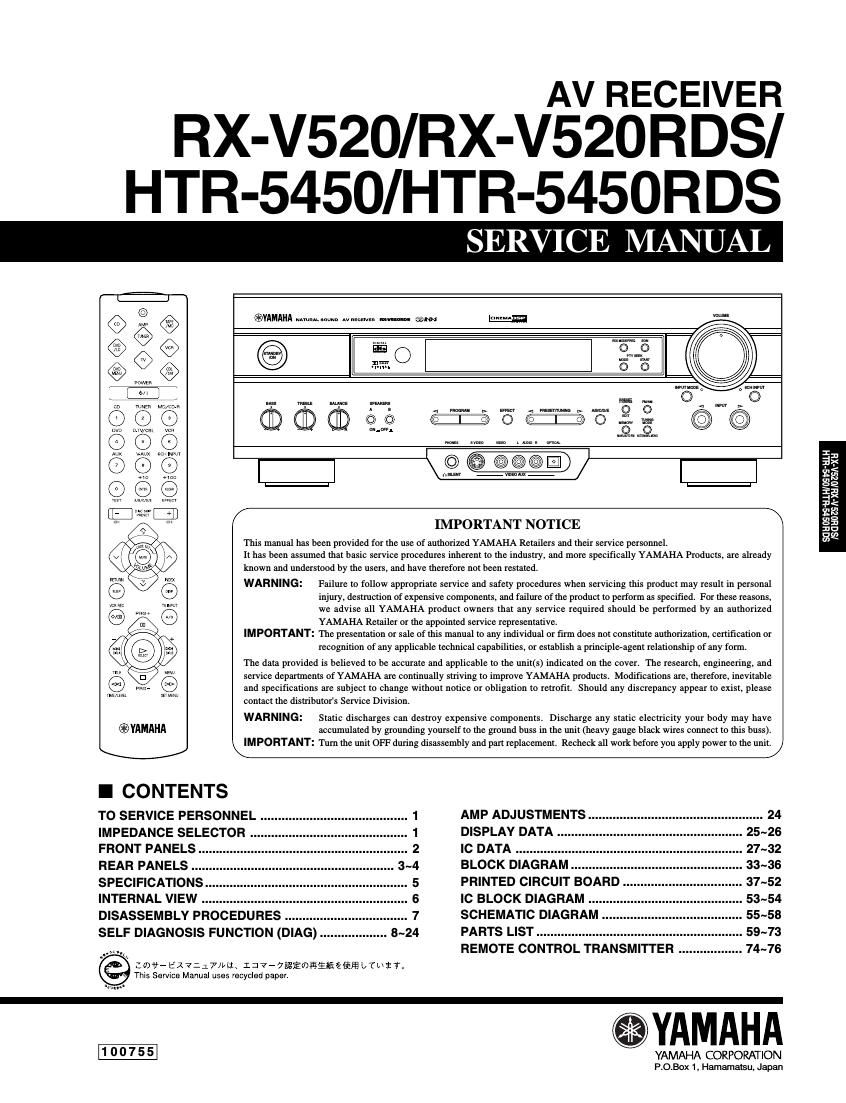

Page 1
RX-V520/RX-V520RDS/HTR-5450/HTR-5450RDS RX-V520/RX-V520RDS/ HTR-5450/HTR-5450RDS 435 (17-1/8") Unit : mm (inch) 151 (5-15/16")130 (5-1/8") 352.5 (13-7/8") 21 (13/16")16 (5/8")21.3 (13/16") 389.8 (15-3/8") 1 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. IMPEDANCE SELECTOR IMPEDANCE SELECTOR WARNING: Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged. - DIMENSIONS
Page 2
RX-V520/RX-V520RDS/HTR-5450/HTR-5450RDS RX-V520/RX-V520RDS/ HTR-5450/HTR-5450RDS FRONT PANELS RX-V520 (U, C, A, L, R, T models) SURROUNDDIGITAL SILENT VIDEO AUX PHONES S VIDEO VIDEO L AUDIO R OPTICAL 6CH INPUT INPUT MODE INPUT VOLUME TUNING MODE PRESET /TUNING FM/AM MEMORYEDIT BASS BALANCE SPEAKERS PROGRAMPRESET/TUNING EFFECT A/B/C/D/E AB OFF ON STANDBY /ON DIGITAL –+ LR TREBLE –+ MAN'L/AUTO FM AUTO/MAN'L MONO RX-V520 RX-V520RDS (B, G models) SURROUNDDIGITAL SILENT VIDEO AUX PHONES S VIDEO VIDEO L AUDIO R OPTICAL 6CH INPUT INPUT MODE INPUT VOLUME RDS MODE/FREQ EON PTY SEEK MODE START TUNING MODE PRESET /TUNING FM/AM MEMORYEDIT BASS BALANCE SPEAKERS PROGRAMPRESET/TUNING EFFECT A/B/C/D/E AB OFF ON STANDBY /ON DIGITAL –+ LR TREBLE –+ MAN'L/AUTO FM AUTO/MAN'L MONO RX-V520RDS HTR-5450 (U, C, A, R, T models) SURROUNDDIGITAL SILENT VIDEO AUX PHONES S VIDEO VIDEO L AUDIO R OPTICAL 6CH INPUT INPUT MODE INPUT VOLUME TUNING MODE PRESET /TUNING FM/AM MEMORYEDIT BASS BALANCE SPEAKERS PROGRAMPRESET/TUNING EFFECT A/B/C/D/E AB OFF ON STANDBY /ON DIGITAL –+ LR TREBLE –+ MAN'L/AUTO FM AUTO/MAN'L MONO HTR-5450 HTR-5450RDS (G model) SURROUNDDIGITAL SILENT VIDEO AUX PHONES S VIDEO VIDEO L AUDIO R OPTICAL 6CH INPUT INPUT MODE INPUT VOLUME RDS MODE/FREQ EON PTY SEEK MODE START TUNING MODE PRESET /TUNING FM/AM MEMORYEDIT BASS BALANCE SPEAKERS PROGRAMPRESET/TUNING EFFECT A/B/C/D/E AB OFF ON STANDBY /ON DIGITAL –+ LR TREBLE –+ MAN'L/AUTO FM AUTO/MAN'L MONO HTR-5450RDS 2
