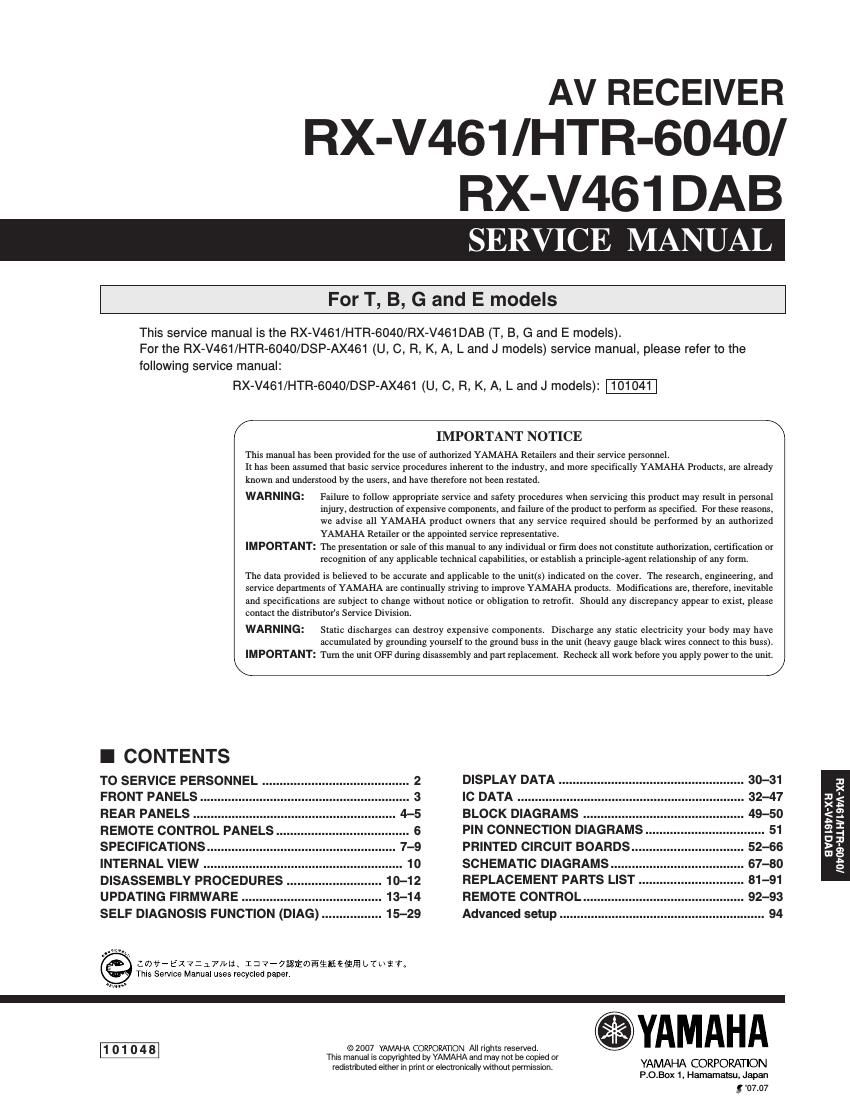

AV RECEIVER
RX-V461/HTR-6040/

RX-V461 DAB

SERVICE MANUAL

For T, B, G and E models

This service manual is the RX-V461/HTR-6040/RX-V461DAB (T, B, G and E models).
Forthe RX-V461/HTFI-6040/DSP-AX461 (U, C, Fl, K, A, L and J models) service manual, please refer to the
following service manual:

RX-V461/HTR-6040/DSP-AX461 (U, C, R, K, A, L and J models): 1010

IMPORTANT NOTICE

This manual has been provided for ihe use of authorized YAMAHA Reiailers and their service personnel.
it has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, cenilication or
recognition of any applicable technical capabilities, or establish a principleeagent relationship oi any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departmenls of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
Contact the distributors Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Tum the unit OFF duruig disassembly and part replacement. Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL DISPLAY DATA . 30-31
FRONT PANELS IC DATA . 32-47
REAR PANELS .. BLOCK DIAGRAMS . 49-50

PIN CONNECTION DIAGRAMS
PRINTED CIRCUIT BOARDS
SCHEMATIC DIAGRAMS...
REPLACEMENT PARTS LIST
REMOTE CONTROL.
Advanced setup ......

REMOTE CONTROL PANELS.
SPECIFICATIONS.
INTERNAL VIEW ..
DISASSEMBLY PROCEDURES .
UPDATING FIRMWARE ..
SELF DIAGNOSIS FUNCTION (DIAG)

I
X
3,.
>l<§
ES
2?.
CI
>451
530
is
9

. 67-80
. 81 -91
92-93

' :0#*EX7:171M1\1377732E®§$nfifif§fi3b1u21s
This Service Manual uses recycled paper.

YAMAHA

YAMAHA CORPORATION
P.O.Box 1. Hamamaisu, Japan
g '07 .07

1 01 0 4 8 o 2007 YAMAHA CORPORATION All rights reserved.
This manual is copyrighted by VAMAHA and may not be copied or

redistributed either in print oreleclronlcally Without permission.

Page 2

FIX-V461 DAB

3
er
9
9
cc
-
E
,_
u:
er
>.
><
II

RX-V461lHTR-6040/RX-V461 DAB

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked at and WALL EQUIPMENT TESTER OR
OUTLET UNDER TEST EQUIVALENT

must be replaced with parts having specifications equal to those

originally installed. ® D-

2. Leakage Current Measurement (For 120V Models Only)
When service has been com leted, it is im erative to verif 7
. p p . y INSULATING
that all exposed conductive surfaces are properly Insulated TABLE
from supply circuits.
0 Meter impedance should be equivalent to 1500 ohms shunted o Leakage current must not exceed 0.5mA.
by 0.15m:

0 Be sure to test for leakage with the AC plug in both polarities.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About lead free solder
All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.

Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair
work.

- Sn + Ag + Cu (tin + silver + copper)
- Sn + Cu (tin + copper)
- Sn + Zn + Bi (tin + Zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder is about 30°C to 40C (50F to 70°F) higher than that of the lead solder, be sure
to use a soldering iron suitable to each solder.
