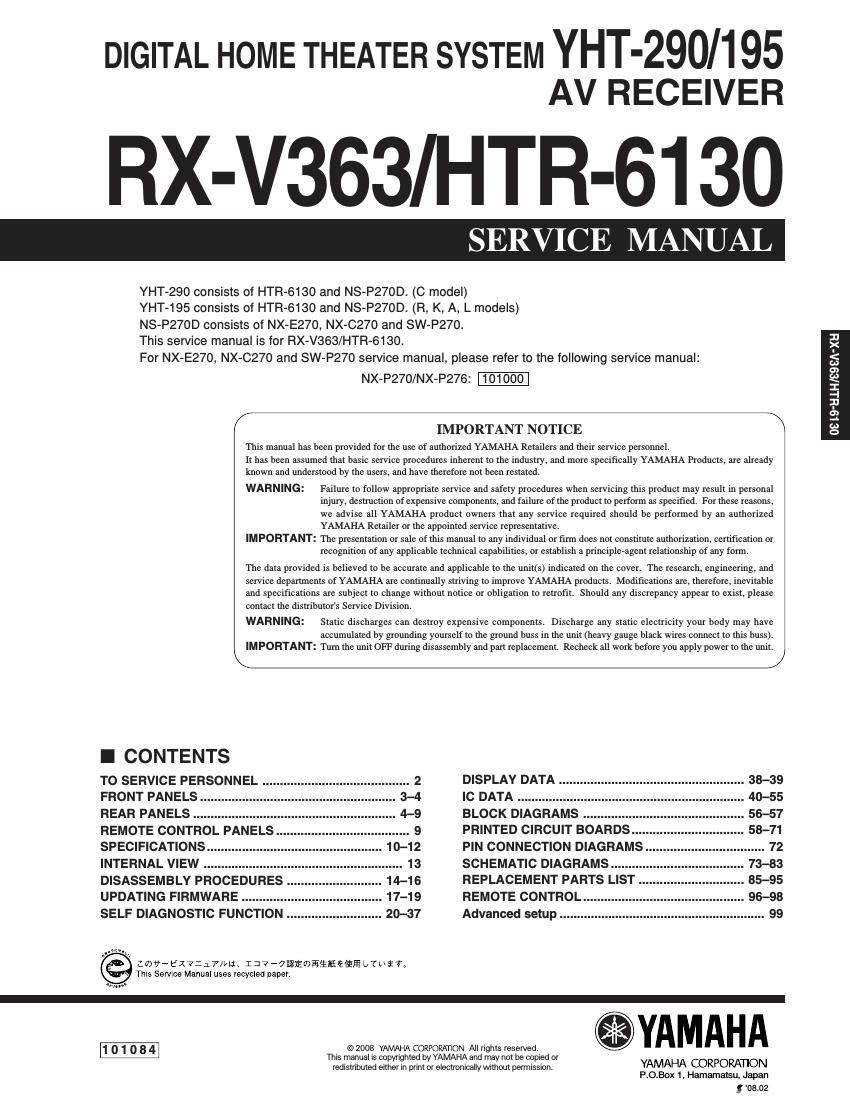

DIGITAL HOME THEATER SYSTEM YHT-290/195

AV RECEIVER

X-V363A'ITR-61 30

ER ICE M NU

YHT-290 consists of HTR-613O and NS-P27OD. (C model)
YHT-195 consists of HTR-6130 and NS-P27OD. (R, K, A, L models)
NS-P270D consists of NX-E270, NX-C270 and SW-P270.

This service manual is for RX-V363/HTR-6130.

For NX-E270. NX-027O and SW-P27O service manual, please refer to the following service manual:

NX-P270/NX-P276: 101000

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
it has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriaie service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principleragem relationship of any form.

The data provided is believed to be accurate and applicable to the unitts) indicated on the cover. The research, engineering. and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are. therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please

comacl [he dieributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourselfto the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and pan replacement. Recheck all work before you apply power to the unit.
