Yamaha rx v359 htr 5930
This is the 71 pages manual for yamaha rx v359 htr 5930.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha rx v359 htr 5930 (Ocr-read)
Page 1

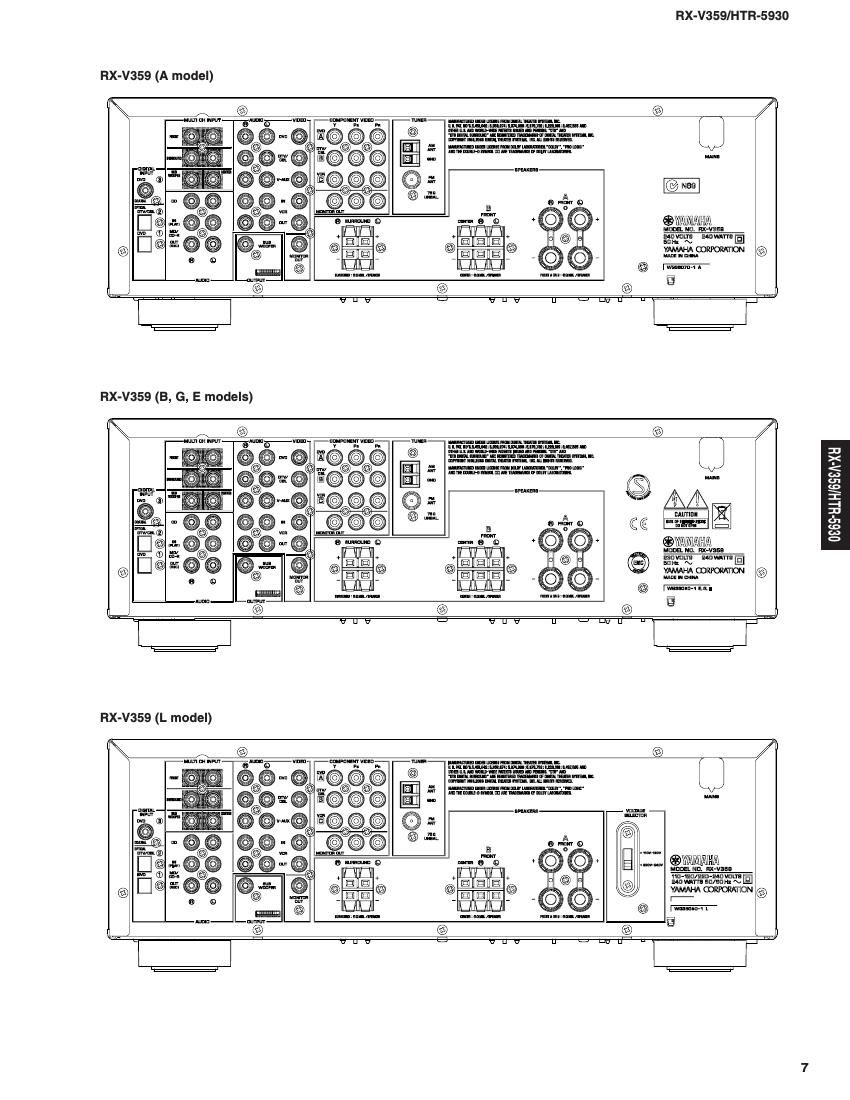

RX-V359/HTR-5930 8 RX-V359/HTR-5930 HTR-5930 (T model) HTR-5930 (U, C models) HTR-5930 (R model)
Page 2
SERVICE MANUAL 100995 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. CONTENTS TO SERVICE PERSONNEL ...................................... 2~3 IMPEDANCE SELECTOR ............................................. 3 FRONT PANELS ........................................................ 3~5 REAR PANELS .......................................................... 5~9 REMOTE CONTROL PANELS .................................... 10 SPECIFICATIONS .................................................. 11~12 INTERNAL VIEW ......................................................... 12 DISASSEMBLY PROCEDURES ........................... 13~15 SELF DIAGNOSIS FUNCTION (DIAG) 16~33 CONFIRMATION OF IDLING CURRENT 34DISPLAY DATA ..................................................... 35~36 IC DATA ................................................................. 37~43 PRINTED CIRCUIT BOARD .................................. 45~52 PIN CONNECTION DIAGRAM .............................. 53~54 BLOCK DIAGRAM ....................................................... 55 SCHEMATIC DIAGRAMS ...................................... 56~60 REPLACEMENT PARTS LIST .............................. 61~69 REMOTE CONTROL .............................................. 70~71 ADVANCED SETUP .............................................. 72~73 AV RECEIVER RX-V359/HTR-5930 RX-V359/HTR-5930 P.O.Box 1, Hamamatsu, Japan 2006 All rights reserved. This manual is copyrighted by YAMAHA and may not be copied or redistributed either in print or electronically without permission. '06.01
