Yamaha rx v357
This is the 70 pages manual for yamaha rx v357.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha rx v357 (Ocr-read)

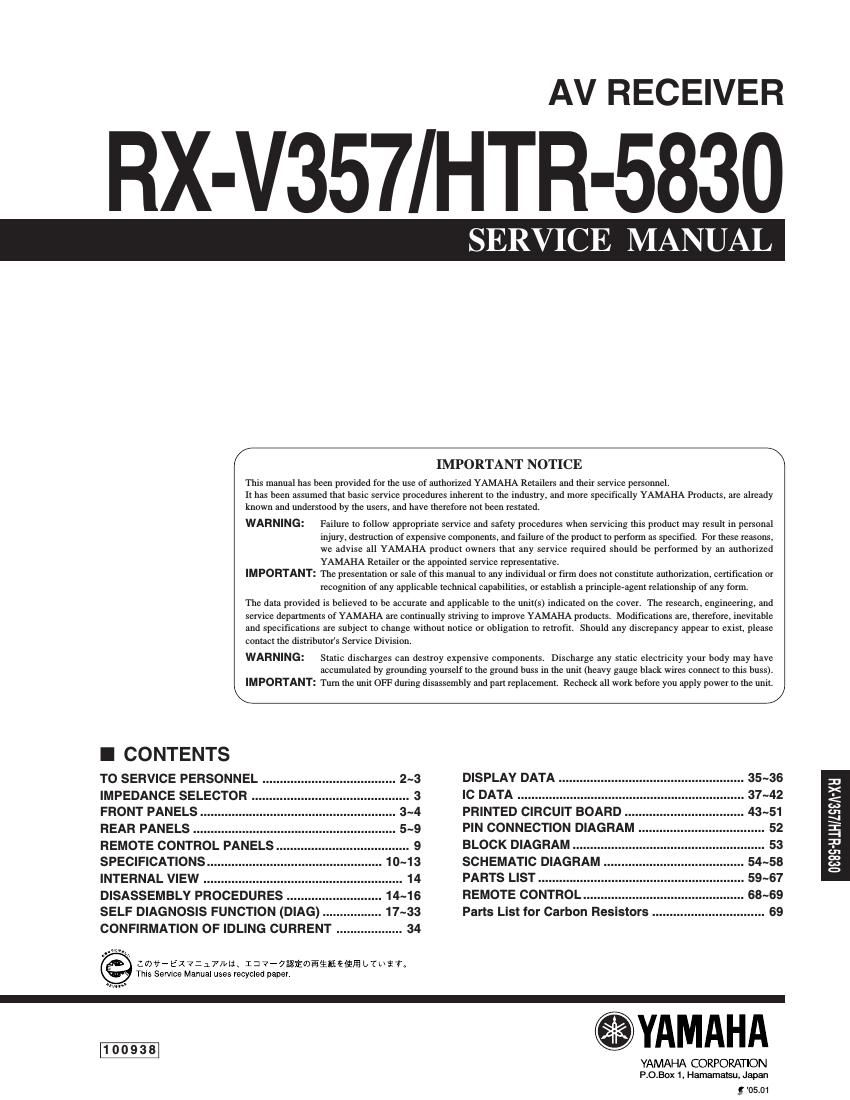

Page 1
RX-V357/HTR-5830 2 RX-V357/HTR-5830 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. CAUTION F371: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A, 125V FUSE. CAUTION F371: REPLACE WITH SAME TYPE 6A, 125V FUSE. ATTENTION F371: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 6A, 125V. The P.C.B.s installed in this unit are soldered using the following solder. About Lead Free Solder Side A Side BSMT REFLOW Process MI FLOW Process Solder Dip Side A Side B DSP P.C.B. Lead Free Solder Lead Free Solder FUNCTION P.C.B. – Lead Free Solder MAIN P.C.B. – Lead Free Solder
Page 2
RX-V357/HTR-5830 3 RX-V357/HTR-5830 Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work. - Sn + Ag + Cu (tin + silver + copper) - Sn + Cu (tin + copper) - Sn + Zn + Bi (tin + zinc + bismuth)Caution: 1. As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder. 2. If lead solder must be used, be sure to remove lead free solder from each terminal section of the parts to be replaced and from the area around it completely before soldering, or make sure that the lead free solder and lead solder melt together fully. IMPEDANCE SELECTOR U, C models IMPEDANCE SELECTOR WARNING: Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged. FRONT PANELS RX-V357 (C, R, T, K, A, L models)
