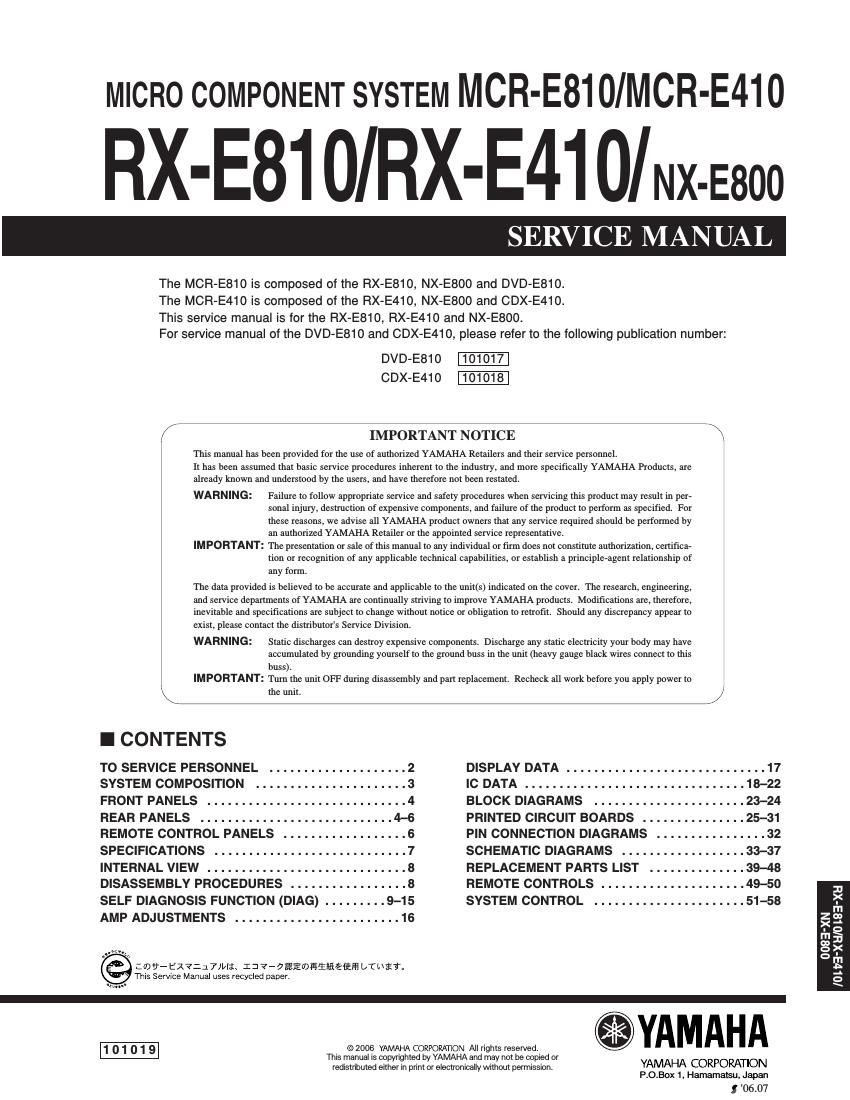

This is the 57 pages manual for yamaha rx e410.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha rx e410 (Ocr-read)
Page 1
RX-E810/RX-E410/NX-E800 2 RX-E810/RX-E410/ NX-E800 TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF. WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the manufacturing process except soldering of the P.C.B. ass'y contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. CAUTION F1, F2: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 3.5A, 125V FUSE. CAUTION F1, F2: REPLACE WITH SAME TYPE 3.5A, 125V FUSE. ATTENTION F1, F2: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 3.5A, 125V. About Lead Free Solder The P.C.B.s installed in main unit are soldered using the all lead free solder. Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work. - Sn + Ag + Cu (tin + silver + copper) - Sn + Cu (tin + copper) - Sn + Zn + Bi (tin + zinc + bismuth) $ B V U J P O As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder.
Page 2
RX-E810/RX-E410/NX-E800 3 RX-E810/RX-E410/ NX-E800 SYSTEM COMPOSITION The MCR-E810 consists of the DVD-E810, RX-E810 and NX-E800. The MCR-E410 consists of the CDX-E410, RX-E410 and NX-E800. MCR-E810 (U, C, T, K, A, B, G, L, V models) DVD-E810 RX-E810 NX-E800 x 2 CDX-E410 RX-E410 NX-E800 x 2 MCR-E410 (B, G models)
