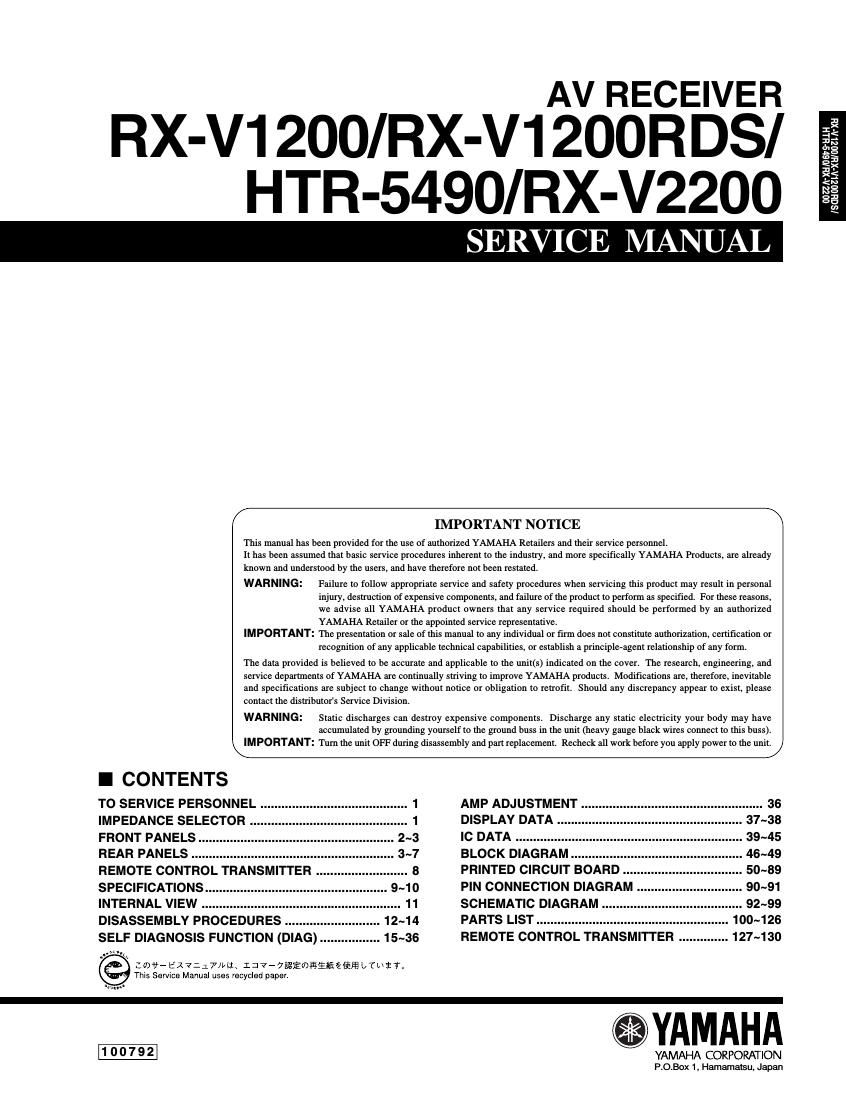

Yamaha RX V1200 V2200

Page 1

AV RECEIVER

X-V1 200/ RX-V1 200RDS/
HTR-5490/RX-V2200

::
A
:3
01
as
re
2
:n
5
<
N
N
a
o

lSGHOOZIA-XH/OUZLA'XH

SERVICE MANUAL

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry. and more specifically YAMAHA Products. are already
known and understood by the users. and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when serVicing this product may result in personal
injury, destruction of expensive components. and failure of the product to perform as specified. For these reasons.
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities. or establish a principlesngem relationship of any form.

The data provided is believed to be accurate and applicable to the unii(s) indicated on the cover. The research. engineering. and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are. therefore. inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
Contact the distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Tum the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL 1 AMP ADJUSTMENT 36
IMPEDANCE SELECTOR 1 DISPLAY DATA. . 37~38
FRONT PANELS 3 IC DATA . . 39~45
REAR PANELS . 7 BLOCK DIAGRAM . 46~49
REMOTE CONTROL TRANSMITTER 8 PRINTED CIRCUIT BOARD . 50~89
SPECIFICATIONS 9~10 PIN CONNECTION DIAGRAM . 90~91
INTERNAL VIEW . 11 SCHEMATIC DIAGRAM . . 92~99
DISASSEMBLY PROCEDURES . 12~14 PARTS LIST 100~126
SELF DIAGNOSIS FUNCTION (DIAG) . 15~36 REMOTE CONTROL TRANSMITTER 127~130

Lowe him/:ljwua~ I 3777§¥Ew§ifiififi Unfit
Tms Sen/ice Manual uses vecycled papal

YAMAHA

1 0 0 7 9 YAMAHA CORPORATION

P.O.Box 1. Hamamatsu, Japan

Page 2

HTR-SAQD/R X-VZZDD

E
n
I:
o
o
a
>.
x
E
o
o
a
>.
x
I:

RX-V1200/RX-V1200RDS/HTR-5490/RX-V2200

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked wt WALL EQUIPMENT TESTER OR
and must be replaced with parts having specifications equal OUTLET UNDER TEST EQUIVALENT
to those originally installed.

2. Leakage Current Measurement (For 120V Models Only) ® ID-
When service has been completed, it is imperative to verify I
that all exposed conductive surfaces are properly insulated _
from supply circuits. INSULATING _

0 Meter impedance should be equivalent to 1500 ohm shunted TABLE
by 0.1511F.

O Leakage current must not exceed 0.5mA.

0 Be sure to test for leakage with the AC plug in both polarities.

CAUTION"
F201, F202: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A, 125V
FUSE."

CAUTION
F201, F202: REPLACE WITH SAME TYPE 8A, 125V FUSE.

ATTENTION
F201, F202: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 8A, 125V.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

(7/8")

. DIMENSIONS 3
(\l

I IMPEDANCE SELECTOR W I

394 (15-1/2")
431 5 (17")

i

16
(5/8")

O

i 150 (5-7/8")
171 (a 3/4")

000

O

IMPEDANCE SELECTOR

S o o
WARNING:

Do not change the IMPEDANCE SELECTOR 435 (17-1/3")
switch setting while the power to this unit is
on, otherwise this unit may be damaged.

21
(13/16")

Unit :mm (inch)
