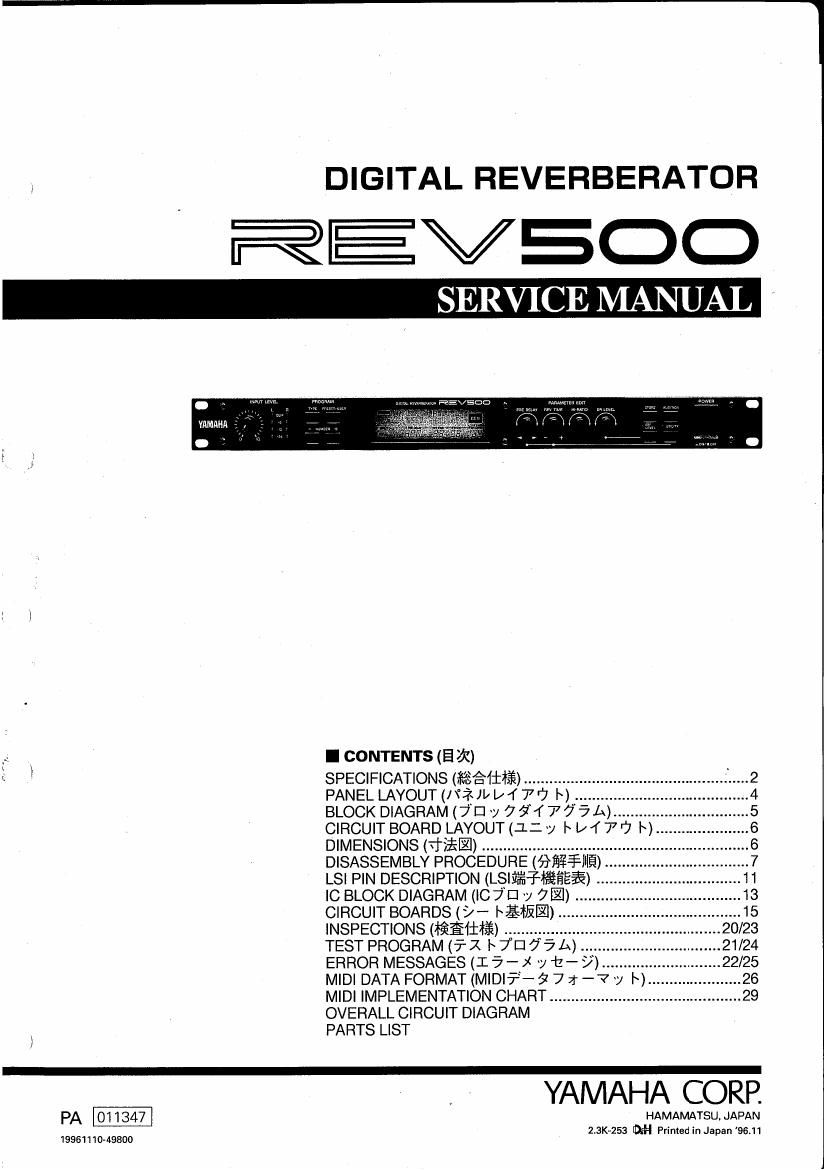

Page 1

%

DIGITAL REVERBERATOR

EVSOO

SERVICE MANUAL "

I CONTENTS (E a)
SPECIFICATIONS (fisémfi) .....................................

PANEL LAYOUT (/ I? IL I/ 1 7 "J
BLOCK DIAGRAM (7D 7 7534 7751A .........
CIRCUIT BOARD LAYOUT (12 y I~ 1/1 7" '7 I*)
DIMENSIONS FIE.) ........................................
DISASSEMBLY PROCEDURE (6}§¥$IIIE)
LSI PIN DESCRIPTION (LSIfifiTIfifififi) ..
IC BLOCK DIAGRAM (I07 III 1 7-)
CIRCUIT BOARDS (9- him.)
INSPECTIONS (fiEIflfi) .................
TEST PROGRAM (7' Z I\ 7E! 75A) ..
ERROR MESSAGES (I 5 - X 7 +3 - 9) ............
MIDI DATA FORMAT (MIDIF- 5? 7 7r -7 y F).
MIDI IMPLEMENTATION CHART ........................
OVERALL CIRCUIT DIAGRAM

PARTS LIST

PA-

1996111 049800

YAMAHA CORP.

HAMAMATSU. JAPAN
2.3K-253 m4 Primed in Japan '96.

Page 2

REVSDO

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed .
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under-
stood by the users, and have therefore not been restated.

WARNING: ' Failure to follow appropriate service and safety procedures when servicing this product may result in per- i
sonaI injury, destruction of expensive components and failure of the product to perform as specified, For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.

IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certifi-
cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.

The data provided is belived to be accurate and applicable to the unitis) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subiect to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity you body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to
this buss.I

IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit. * _

LITHIUM BATTERY HANDLING
This product uses a lithium battery for memory back-up.

WARNING: 'Lithium batteries are dangerous because they can be exploded by improper handling. Observe the follow-
ing precautions when handling or replacing lithium batteries.

0 Leave lithium battery replacement to qualified service personnel.

0 Always replace with batteries of the same type.

0 When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells.
Never solder directly to the calls. Perform the soldering as quickly as possible.

0 Never reverse the battery polarities when installing.

0 Do not short the batteries.
Do not attempt to recharge these batteries.

0 Do not disassemble the batteries.

0 Never heat batteries or throw them into fire.

ADVARSELI
Lithiumbatteri-Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat 09 type. Levér
det brugte batteri tilbage til leverandoran.

VARNING

Explosionsfara vid felaktigt batteribyte.

Anvéind samma batterityp eller en ekvivalent typ som rekommendaras av apparattillverkaren.
Kassera anvant batteri enligt fabrikantens instruktion.

VAROITUS
Paristo voi ios se on virheellisesti asennettu.

Vaihda paristo ainoastaan Iaitevalmistajan suosittelemaan tyyppiin.
Havita kéytetty paristo valmistajan ohjeiden mukaisesti.

Exerfgfitévéng information complies with Dutch Official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF

- Please refer to the diassembly procedure for the removal of Back-up Battery.
- Leest u voor het verwijderen van de backup batterij deze beschriiving.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.

38 ngfilil'LACE SOLDEFI. ELECTRICAL/ELECTRONIC 0R PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
E

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor! r

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.

I WARNING

Components having special characteristics are marked A and must be replaced with parts having specification equal
to those originally installed.

AEflmfiuE-li ££EfifiT6tblZi¥fi§Bflfi7u Eififi'é%fitli. Efiwth-fifiimgliifitédlfimTého
