Yamaha rev 1 rcr 1 digital reverb service manual
This is the 61 pages manual for yamaha rev 1 rcr 1 digital reverb service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha rev 1 rcr 1 digital reverb service manual (Ocr-read)

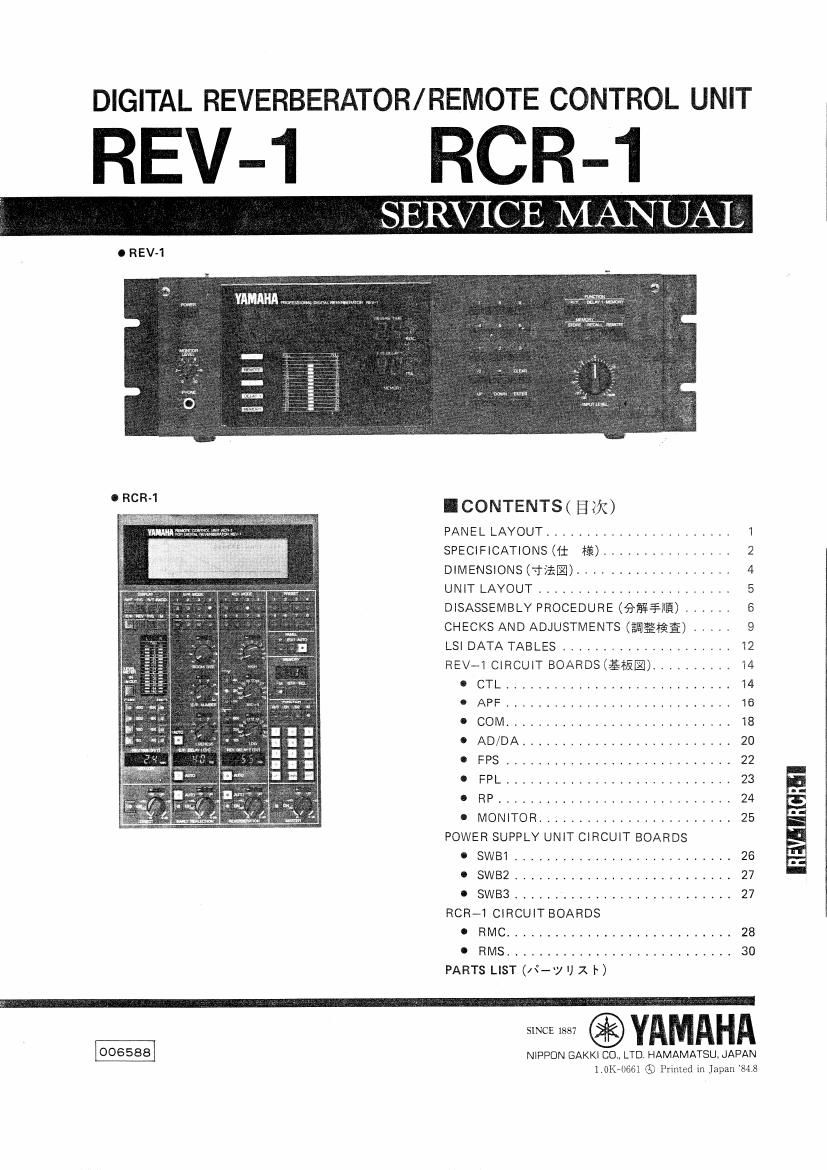

Page 1
DIGITAL REVERBERATOR/ REMOTE CONTROL UNIT
REV-1 RCR-1
O REV-1
ICONTENT$( Hék)
PANEL LAYOUT ....................... 1
SPECIFICATIONS (It 21%) ................ 2
DIMENSIONS (TIE) .................. 4
UNIT LAYOUT ........................ 5
DISASSEMBLV PROCEDURE (gagging) ...... 6
CHECKS AND ADJUSTMENTS (agag) ..... 9
LSI DATA TABLES ..................... I2
REV-1 CIRCUIT BOARDS<§$§I) .......... 14
o CTL ............................ 14
o APF ............................ 16
. COM ............................ 18
o AD/DA .......................... 20
. FPS ............................ 22
o FPL ............................ 23
. RP ............................. 24
o MONITOR ........................ 25
POWER SUPPLY UNIT CIRCUIT BOARDS
o SW81 ........................... 26
. sw132 ........................... 27
- swss ........................... 27
RCR~1 CIRCUIT BOARDS
o RMC ............................ 28
o RMS ............................ 30
PARTS LIST (N-Y U X 1)
006588 NIPPON GAKKI CO, LTD, HAMAMATSU. JAPAN
1.0K0661 Q.) FrInLCd in Japan 848
