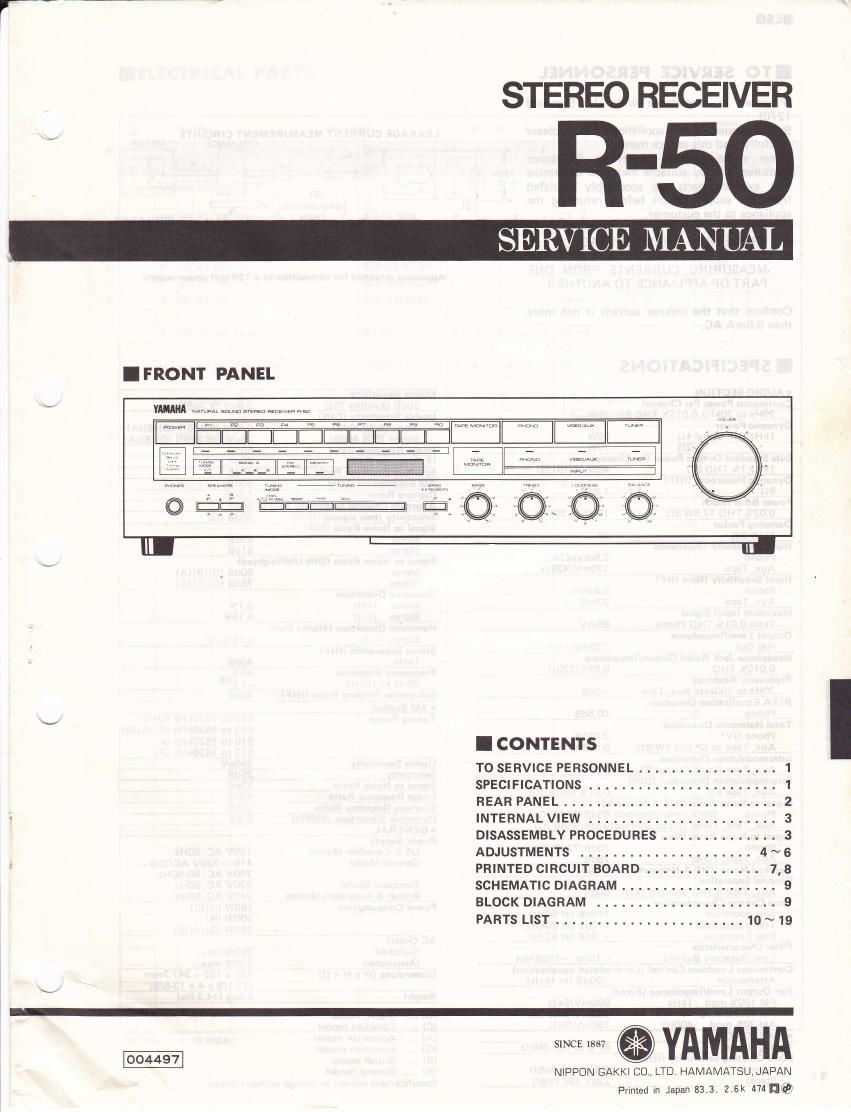

Page 1
STEREO RECEIVER
R-5O
L SERVICE MANUAL
I FRONT PANEL
' WMIM WWIsmmswzmngmaam
pawn L w Pa =2 m =5 95 w =E =2 mamas «New DDDDD a mum/Aux W
I II II II II II II II || II
I CONTENTS
TO SERVICE PERSONNEL ................. 1
SPECIFICATIONS ....................... 1
REAR PANEL .......................... 2
INTERNAL VIEW ....................... 3
DISASSEMBLY PROCEDURES ........... . . . 3
ADJUSTMENTS ..................... 4 ~ 6
PRINTED CIRCUIT BOARD .............. 7,8
SCHEMATIC DIAGRAM ................... 9
BLOCK DIAGRAM ...................... 9
PARTS LIST ....................... 10 ~ 19
SINCE 1887 YAMAHA
NIPPON GAKKI CU, LTD, HAMAMATSU, JAPAN
Primed In Japan 33.3. 2.6K 474 H@
