Yamaha pw power supply
This is the 6 pages manual for yamaha pw power supply.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha pw power supply (Ocr-read)

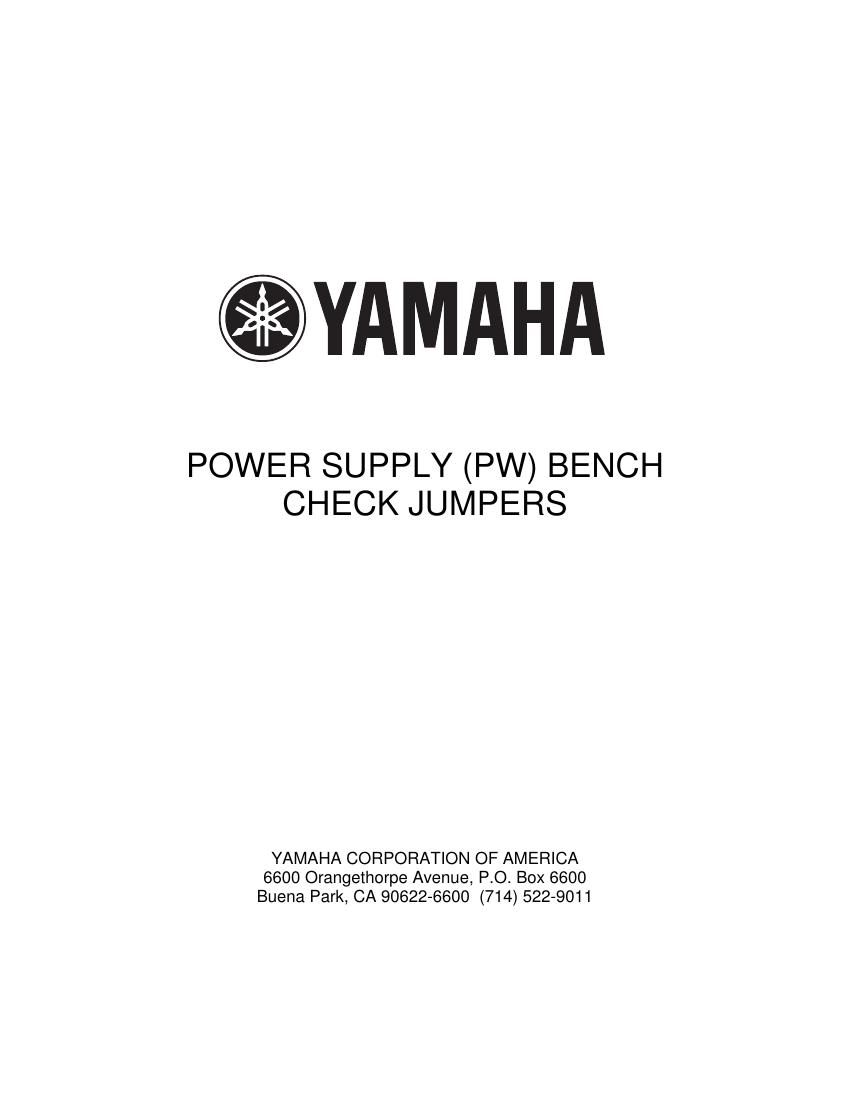

Page 1
DISCLAIMER Every reasonable effort has been made to insure that this document contains accurate information however, no responsibility is assumed for the use of this material or for any inaccuracies and/or omissions that may exist. COPYRIGHT NOTICE Copyright 2000 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, transmitted in any form by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of YAMAHA. YAMAHA ®is a registered trademark
Page 2
PW BENCH CHECK JUMPER When bench testing the PW Power Supply without a console connected, you must jumper certain pin at the DC output plug. Please see the list below: PW5000 POWER SUPPLY FOR PM5000 Connector Wiring PIN FUNCTION PIN FUNCTION 1 -16V 15 +16V 2 -16V 16 + - 16V GND 3 FRAME G 17 +12VG 4 -16V 18 +12CG 5 -16V 19 +48V 6 + - 16V GND 20 CAUTION LED 7 +12VG 21 +16V GND 8 REMOTE 22 +12V 9 +16V 23 +12V 10 +16V 24 +48V GND 11 + - 16V GND 25 +12V 12 +12VG 26 +12V 13 REMOTE 27 +12V 14 +16V PW5000 for PM5000 To bench test short pins: 3, 6, 7, 8, 11, 12, 13, 16, 17, 18, 21, 24 PW4000: Power supply for PM3500, PM3500M, PM4000 and PM4000M Connector Wiring PIN FUNCTION PIN N FUNCTION PIN N FUNCTION 1 -19V blue) 10 19 GND (Black) 19 PM CAUTION (+) (white ) 2 -19V (blue) 11 19 GND (black) 20 +48V (orange) 3 FRAME GND (green) 12 12 GND (white) 21 48V GND (brow) 4 -19V (blue) 13 +19V (red) 22 +12V (purple) 5 -19V (blue) 14 +19V (red) 23 +12V (purple) 6 FRAME GND (green) 15 19 GND (black) 24 PW CAUTION (red ) 7 FRAME GND (green) 16 19 GND (black) 25 REMOTE (red ) 8 +19V (red) 17 12 GND (white) 26 REMOTE (white) 9 +19V (red) 18 12 GND (white) 27 +12V (purple) Need 3 jumpers to turn on the Power Supply Jumper 1 Connected the Pin 3 and Pin 10 to Pin 25 and 26. Jumper 2 Connected the Pin 7 to Pin 12. Jumper 3 Connected the Pin 6 to Pin 21.
