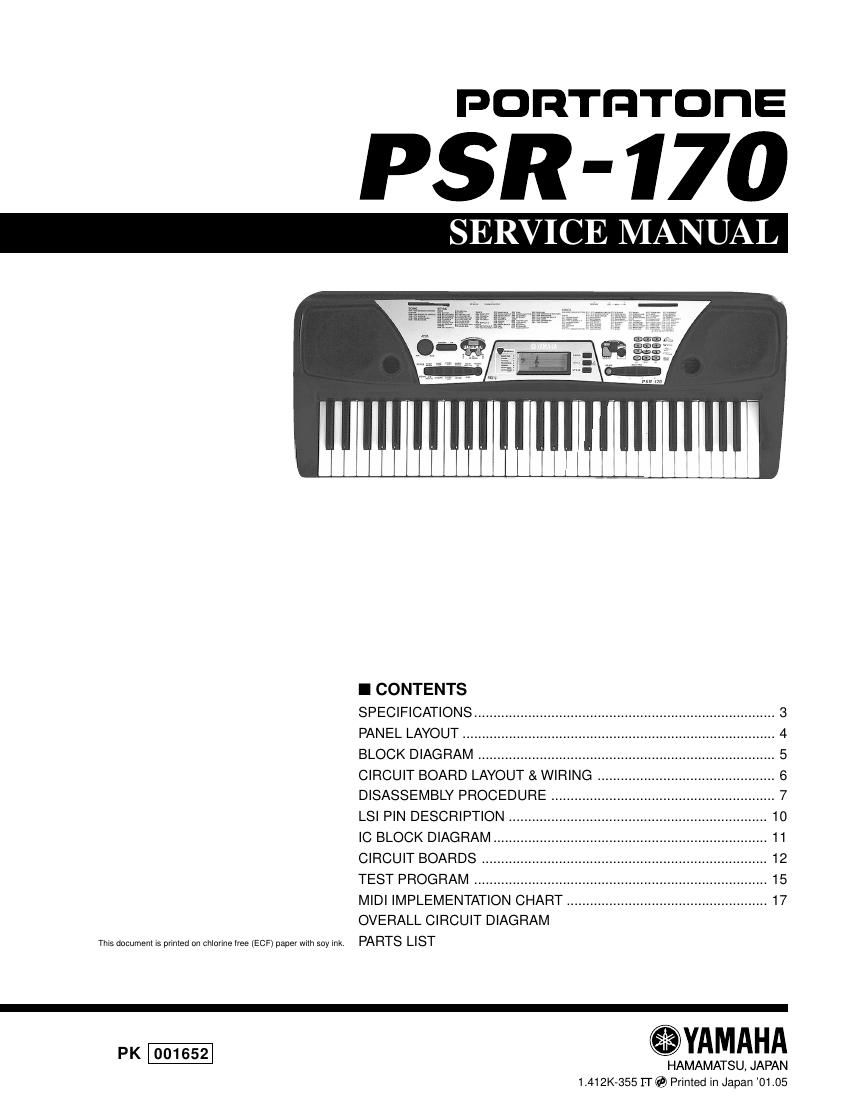

Page 1
PSR-170 2 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authoriza-tion, certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit (s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefor, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributors Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus). IMPORTANT : Turn the unit OFF during disassembly and par ts replacement. Recheck all work before you apply power to the unit. WARNING : CHEMICAL CONTENT NOTICE ! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked Z and must be replaced with parts having specification equal to those originally installed.
Page 2
PSR-170 3 SPECIFICATIONS Keyboard 61 standard-size keys (C1 - C6) Display Large multi-function LCD display (backlit) Setup STANDBY/ON MASTER VOLUME : MINI-MAX Panel controls Overall, SONG, VOICE, STYLE, DEMO, POTABLE GRAND, DJ, METRONOME, Dict., L, R, TEMPO/TAP numeric keypad (0 - 9, +,-) Voices 100 panel voices (max. polyphony : 16) Effects Dual (Included in Voice), Harmony/Echo (Included in Voice), Split (Included in Voice), Sustain Auto Accompaniment 100 styles Fingering : Multi Fingering Sections : Intro, Main A, B, Ending, Fill Overall controls Multi Pad, Grade, Talking, Transpose, Tuning, Accompani-ment Volume, Song Volume, Metronome Volume Style controls Acmp On/Off, Sync-Start, Start, Stop, Intro/Ending, Main A, B (Auto Fill) Song controls Start, Stop, Pause, A-B Repeat, Fast Forward, Rewind, Mel- ody Voice Change One Touch Setting 1/style, 1/song Multi Pads 4 pads x 10 banks Yamaha Education Suite Dictionary, Lesson 1-4 Preset songs 100 songs Amplifier 2.0W + 2.0W MIDI IN/OUT Auxiliary jacks PHONES/OUTPUT, DC IN 12V, MIDI IN/OUT, SUSTAIN Speakers 10cm x 2 Power consumption VL/CSA 6-8W, CE7.5W (when using PA-3B power adaptor) Power supply Adaptor : Yamaha PA-3B AC power adaptor Batteries : Six D size, R20P(LR20) or equivalent batteries Dimensions 931 x 348.8 x 127.9 mm (36-2/3" x 13-3/4" x 5-1/16") Weight 4.4kg (9 Ibs., 11 oz.) Supplied accessories Music Stand, Owners Manual, Song Book Optional accessories Headphones : HPE-150 AC power adaptor : PA-3B Keyboard stand : L-2L, L-2C
