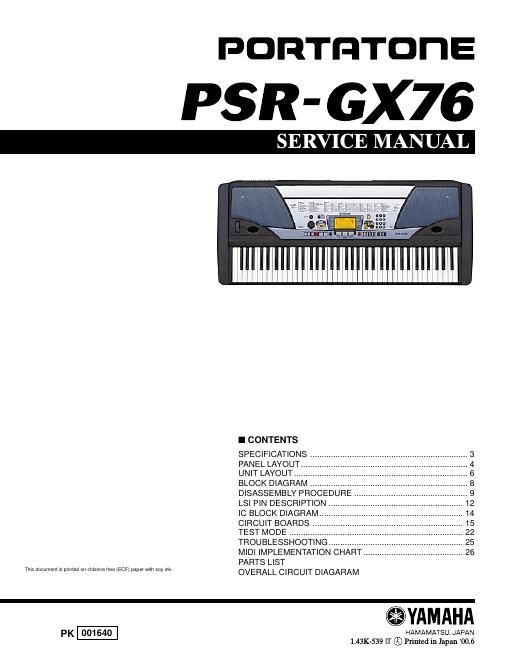

Yamaha psr gx76 service manual
This is the 39 pages manual for yamaha psr gx76 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha psr gx76 service manual (Ocr-read)
Page 1
PSR-GX76 2 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING:Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT:The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING:Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus). IMPORTANT:Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT- SOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/ flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
Page 2
PSR-GX76 3 n SPECIFICATIONS Keyboards - 76 standard-size keys, with Touch Response and Dynamic Filter. Display - Large multi-function LCD display (backlit) Setup - STANDBY/ON - MASTER VOLUME: MIN - MAX Panel Controls - OVERALL (L, R), SONG, VOICE, STYLE, PORTABLE GRAND, DJ, METRONOME, [0]-[9], [+](YES), [-](NO), DEMO, TOUCH, HARMONY, Dict., L, R, TEMPO/TAP, PITCH BEND Voice - 118 panel voices + 10 Drum Kits + 128 GM Voices - Polyphony: 32 - Voice Set Auto Accompaniment - 100 styles - Accompaniment Control: ACMP ON/OFF, SYNC STOP, SYNC START, START/STOP, INTRO/ENDING, MAIN A/B(AUTO FILL) - Fingering: Multi fingering - Accompaniment Volume Yamaha Educational Suite - Dictionary - Lesson 1-4 One Touch Setting - Voice (for each style or song) Overall controls - Transpose - Tuning - Accompaniment Volume - Song Volume - Metronome Volume - MIDI - Reverb - DSP - Harmony - Grade - Talking - Pitch Bend Range Effects - Reverb: 8 types - DSP: 37 types - Harmony: 26 types Song - 100 Songs + 5 User Songs - Song Clear, Track Clear Recording - Song User Song: 5 Songs Real Time Recording Recording Tracks: 1, 2, 3, 4, 5, CHORD MIDI - Clock - Bulk Send/Receive - Initial Send Auxiliary jacks - PHONES/OUTPUT, DC IN 10-12 V, MIDI IN/OUT, SUSTAIN Amplifier - 3.0 W + 3.0 W Speakers - 12 cm x 2 + 3 cm x 2 Power Consumption - 15 W (when using PA-3B power adaptor) Power Supply - Adaptor: Yamaha PA-3B AC power adaptor - Batteries: Six D size, SUM-1, R-20 or equivalent batteries Dimensions (W x D x H) - 1188 x 435 x 129 mm (46-3/4" x 17-1/8" x 5-1/16") Weight - 8 kg (17 lbs., 10 oz.) Supplied Accessories - Music Stand Optional Accessories - Headphones: HPE-150 - AC power adaptor: PA-3B - Footswitch: FC4, FC5
