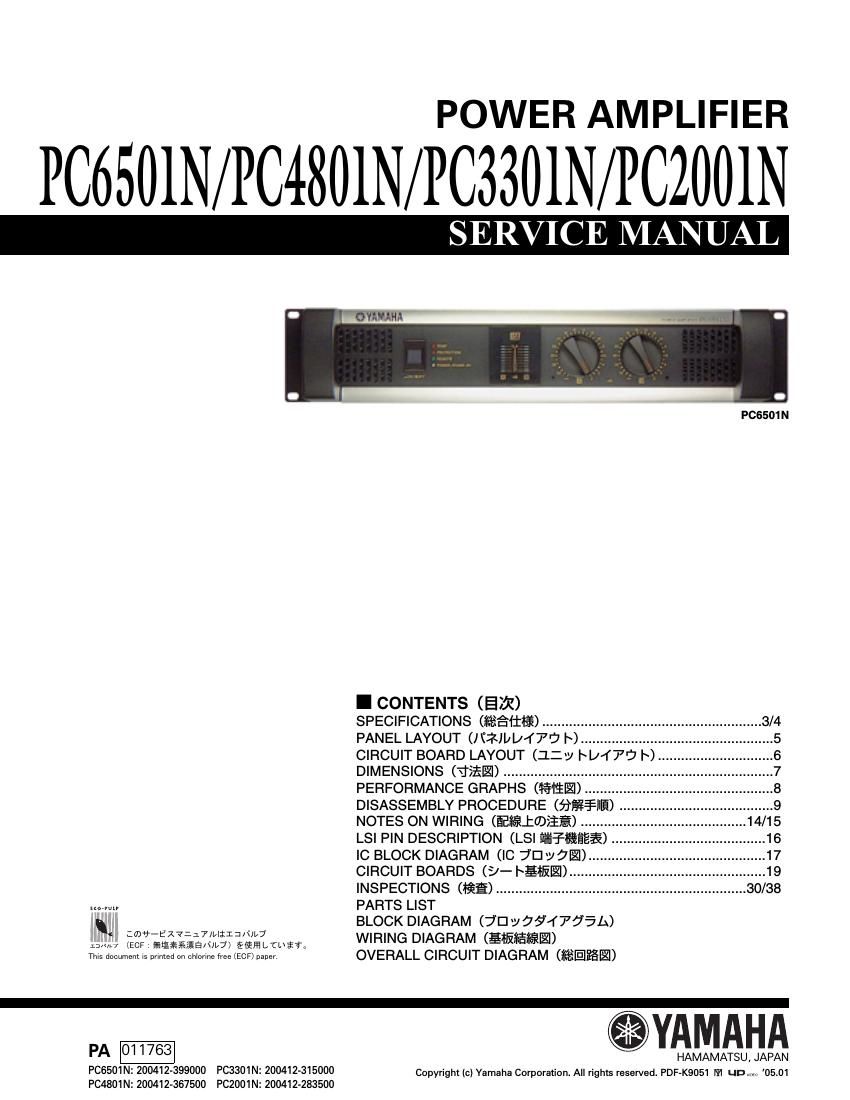

Yamaha pc2001 pc3301 pc4801 pc6501

Page 2

PCG501N/PC4801N/PC3301N/PCZOO1N

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic
service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and
have therefore not been restated.

WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise
all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.

IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification,
recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form.

The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in
specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributors Service Division.

WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus).
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck a_|| work before you apply power to the unit.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable)
components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to
cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to
solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.

WARNING: THIS APPARATUS MUST BE EARTHED I WARNING
IMPORTANT
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN Components having special characteristics are marked &
ACCORDANCE WITH THE FOLLOWING CODE; and must be replaced with parts having specification equal to
GREEN-AND-YELLOW: EARTH those originally installed.
BLUE : NEUTRAL
BROWN: LIVE & FWWQfiEMi i/Iééérfiférdértmufififmfiuflufdo E

As the colours of the wires in the mains lead of this apparatus IQ? 512311, fiémmb ICJZWPTETEVJfiEtfi: E :IEFH < 75 $10»)
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol J:- or coloured GREEN
and YELLOW. The wire which is coloured BLUE must be
connected to the terminal which is marked with the letter N or
coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.

" This applies only to products distributed by YAMAHA KEMBLE
MUSIC (U.K.) LTD.
