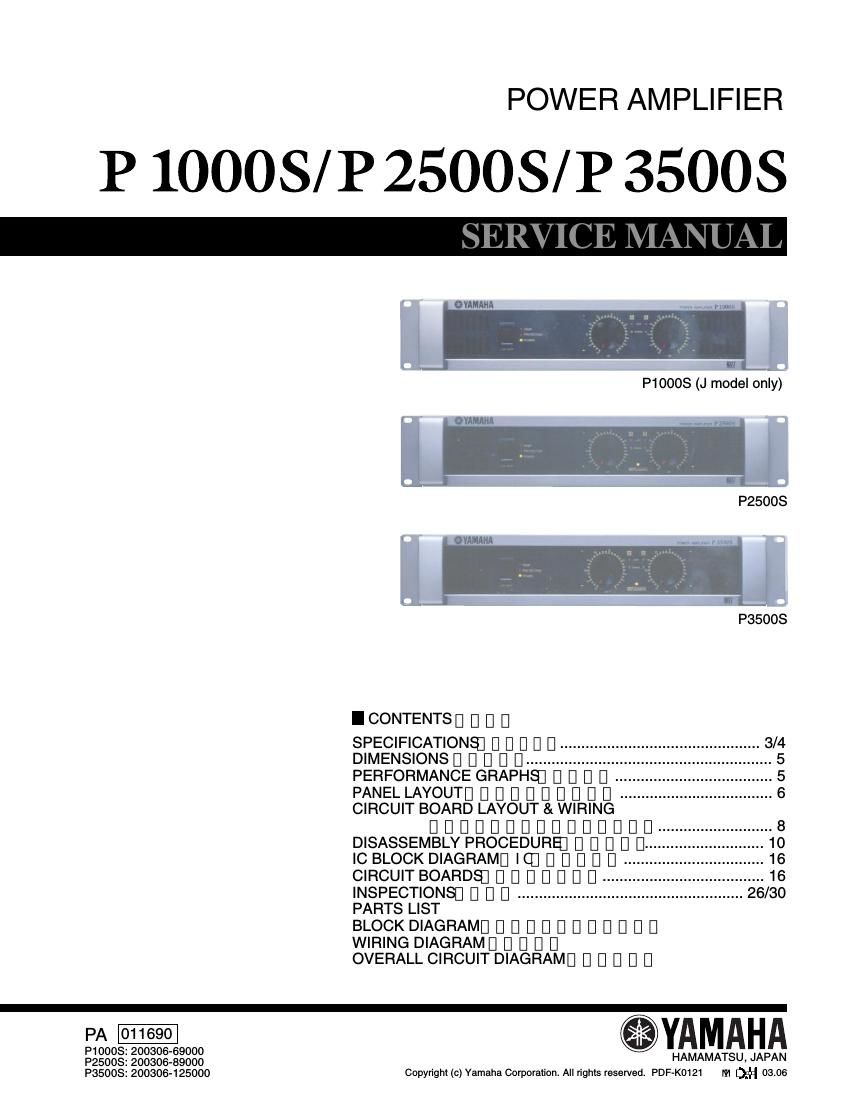

Yamaha p1000 s p2500 s p3500 s
This is the 23 pages manual for yamaha p1000 s p2500 s p3500 s.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha p1000 s p2500 s p3500 s (Ocr-read)
Page 1
P1000S/P2500S/P3500S 2 WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributorÕs Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. ¹w æ ¼xz† ¶›¡ËbhŠt OAs æ ¼pb{¦õb Ôùxz† ¶whŠt žc¦ w æ ¼›]–;X5à4Ð'°
Page 2
P1000S/P2500S/P3500S 3 SPECIFICATIONS P3500S P2500S Power Output Level (Rated Power) Power Bandwidth8 W/STEREO 4 W/STEREO 8 W/BRIDGE 390 W x 2 590 W x 2 1180 W x 1 350 W x 2 450 W x 2 900 W x 1 1000 W x 2 2000 W x 1 275 W x 2 390 W x 2 780 W x 1 250 W x 2 310 W x 2 620 W x 1 650 W x 2 1300 W x 1 1 kHz THD + N = 1% 8 W/STEREO 4 W/STEREO 8 W/BRIDGE 2 W/STEREO 4 W/BRIDGE Half Power 10 Hz – 40 kHz (THD + N = 0.5 %) Total Harmonic Distortion (THD + N) 4 W – 8 W/STEREO 8 W/BRIDGE0.1 % 20 Hz – 20 kHz, Half Power Frequency Response RL = 8 W, Po = 1 W 0 dB, +0.5 dB, –1 dB f = 20 Hz – 50 kHz Intermodulation distortion (IMD) 4 W – 8 W/STEREO 8 W/BRIDGE 32.1 dB 30 kW/balanced, 15 kW/unbalanced POWER switch (Push on/Push off) Two 31-step Volume control knobs (one per ch) MODE switch (STEREO/PARALLEL/BRIDGE) Two FILTER switches (SUBWOOFER/LOW CUT/OFF) Two fc knobs (25 to 150 Hz) YS Processing switch (ON/OFF) XLR-3-31 jacks (one per ch) 1/4-inch balanced TRS phone jacks (one per ch) Speakon jacks (one per ch) 5-way binding posts 1/4-inch phone jacks (one per ch) x 1 (Green) x 1 (Red) x 1 (Red) (heatsink temp 85 ¡C) x 2 (Red) x 2 (Green) x 1 (Yellow) POWER switch ON muting, DC detection Temp. detection (heat sink temp 90¡C), VI limiter (RL 1 W) Comp: THD 0.5 % Single variable-speed fan 120 V, 60 Hz 230 V, 50 Hz 240 V, 50 Hz 480 x 88 x 456 mm Security cover (with a hex wrench), Owners Manual102 dB 100 dB 60 Hz:7 kHz, 4:1, Half Power Channel Separation Residual Noise Vol. min. SN Ratio Damping Factor Sensitivity (Vol. max.) Rated Power 8 W Voltage Gain (Vol. max.) Input Impedance Controls ConnectorsVol. maxHalf Power RL = 8 W 1 kHz input 600 W shunt 20 Hz – 20 kHz (DIN AUDIO) 20 Hz – 20 kHz (DIN AUDIO) input 600 W shunt RL = 8 W, f = 1 kHz Front Panel Rear Panel INPUT OUTPUT Indicators Load protection Amp. protection Limiter Cooling Power RequirementsPOWER PROTECTION TEMP CLIP SIGNAL YS Processing United States & Canada Europe Australia Power Consumption Idling 1/8 output power, 4 W Maximum output, 4 W 20 Hz – 20 kHz THD + N = 0.1% 1 kHz 20 ms non-clip Dimensions (W x H x D) Weight Included Accessories +4 dBu +3 dBu 30 W 450 W 2000 W 25 W 320 W 1600 W 15 kg 14 kg 0.1 % 70 dB 200 –70 dBu 0 dBu=0.775 Vrms, Half Power=1/2 Power Out put Level (Rated Power)
