Yamaha pocketrak w 24
This is the 21 pages manual for yamaha pocketrak w 24.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha pocketrak w 24 (Ocr-read)

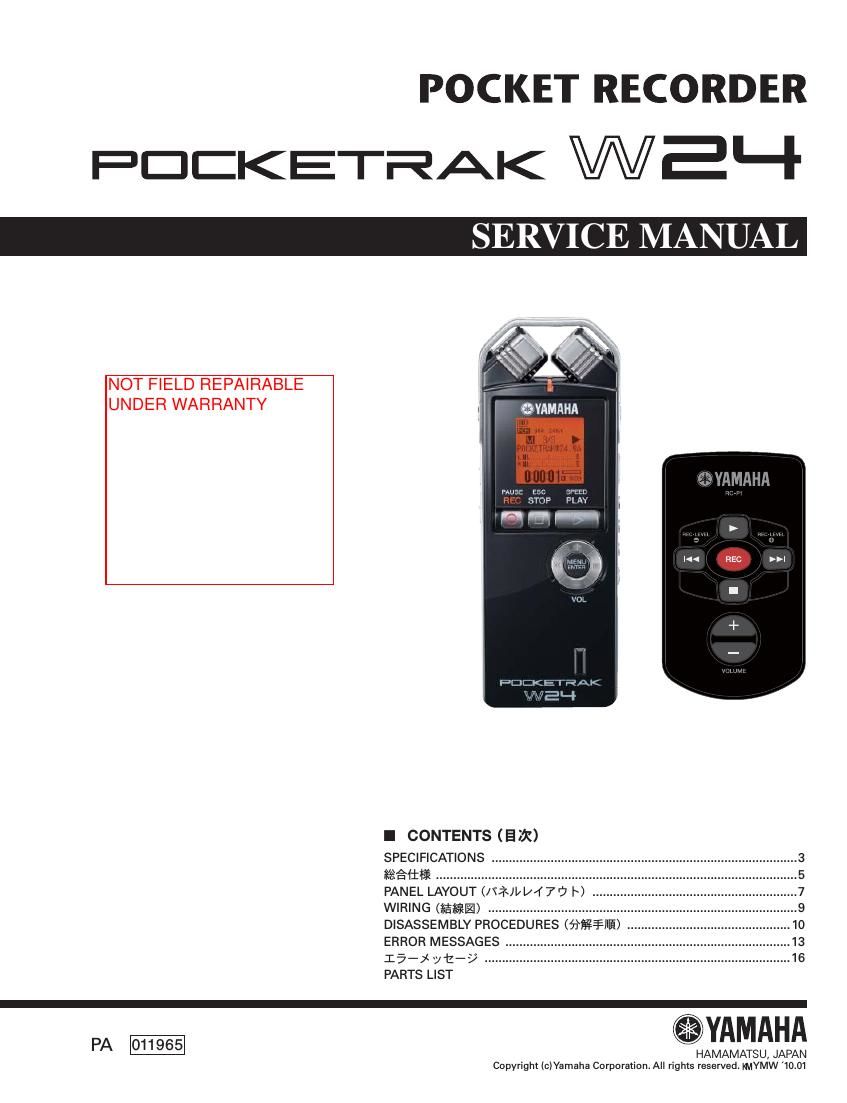

Page 1
WARNING: This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have there- fore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruc- tion of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service repre- sentative. IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service depart- ments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributors Service Divi- sion. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus). IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Lithium batteries «™ Y`M ? q¦õ`sMq 0 CUIVSf-UK‡b{ ‰°Ê‡hx ‰ s ¼ŽŽw ? qx ˆ 0t¦õ`sMOt`o Xi^M{ WAR N I N G: Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries. - Leave lithium battery replacement to qualified service personnel. - Always replace with batteries of the same type. - When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells. Never solder directly to the cells. Perform the soldering as quickly as possible. - Never reverse the battery polarities when installing. - Do not short the batteries. - Do not attempt to recharge these batteries. - Do not disassemble the batteries. - Never heat batteries or throw them into fire. ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskif tning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. VA R N I N G Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller an ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. VA R O I T U S Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty peristo valmistajan ohjeiden mukaisesti. POCKETRAK W24 2
Page 2
■ SPECIFICATIONS POCKETRAK W24 3
