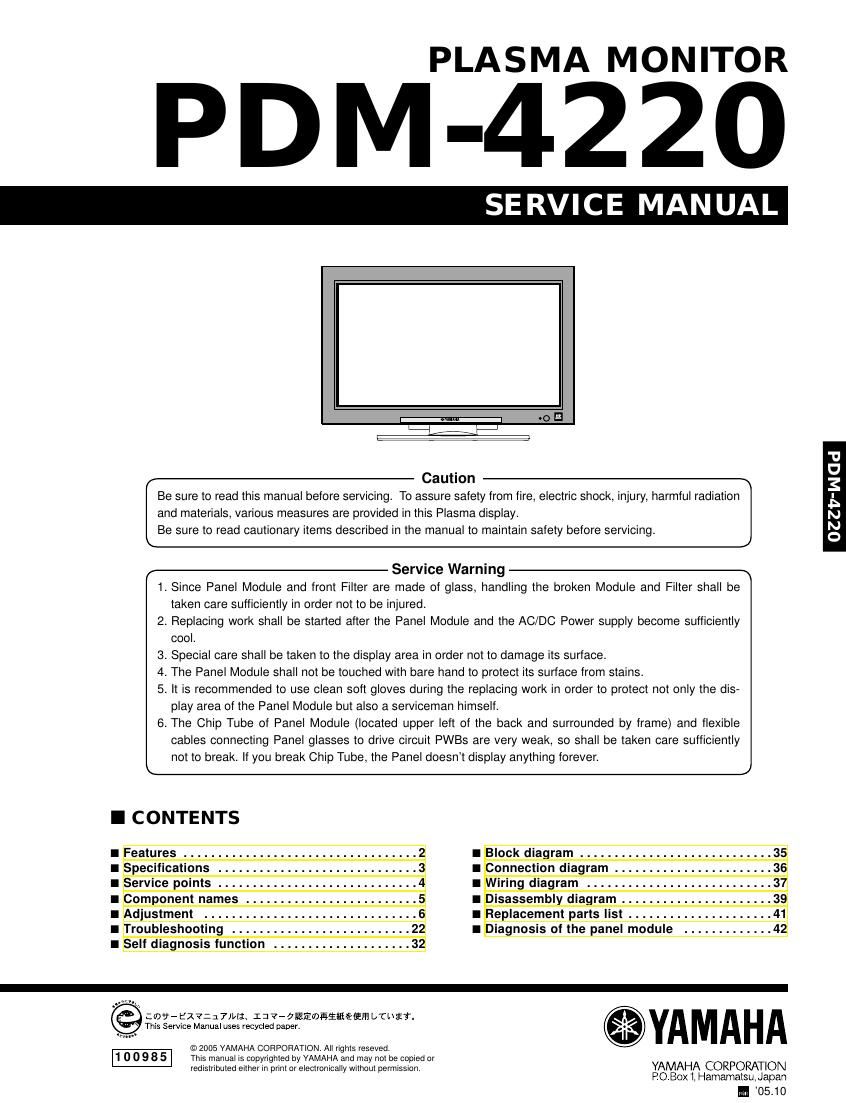

Yamaha pdm 4220
This is the 58 pages manual for yamaha pdm 4220.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha pdm 4220 (Ocr-read)
Page 1
2 PDM-4220 PDM-4220 PRECAUTIONS How to clean the plasma screen panel of the monitor Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet. To prevent scratching or damaging the plasma screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners. How to clean the cabinet of the monitor Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks. Large-screen, high-definition plasma display panel The 42-inch color plasma display panel, with a resolution of 1024 (H) x 1024 (V) pixels, creates a high-definition, large-screen(aspect ratio : 16:9) and low-profile flat display. Free from electromagnetic interferences from geomag- netic sources and ambient power lines, the panel produces high-quality display images free from color misconver- gence and display distortion. High Performance Digital Processor A wide range of input signals can be handed,including composite, component,and HDMI.High Definition Digital Pro- cessor creates the fine-textured image with dynamic contrast. In addition, it corresponds to a broad array of per- sonal computer signals, from 640 x 400 and 640 x 480 VGA to 1600 x 1200 UXGA.(Analog Input) Easy-to-use remote control and on screen display system The remote control included eases the work of setting display controls. Further, the on-screen display system, displays the status of signal reception and display control settings in an easy-to-view fashion. Power saving system When connected to a VESA DPMS-compliant PC, the monitor cuts its power consumption while it is idle. Connecting to an Audio Visual Device · Three SCART terminals, a composite/S Terminal* 1, a component terminal* 2, a HDMI terminal and have been added. A composite video output terminal is also provided as a monitoring output. *1 A composite/S terminal = A side input · A wide range of devices other than personal computers can also be connected. · A RGB input is possible to switch to component signal from the Menu screen. Power Swivel Feature It allows to turn the plasma display left or right within ± 30 degree using the remote control. Features
Page 2
3 PDM-4220 PDM-4220 Panel Ambient conditions Power supply Power consumption/at standby Audio output (RGB input) Input terminals Input terminals Input terminals RF Video System Input signals Input signals Sync signals (RF input) (Video input) Output SignalTemperature Relative humidity Net dimensions (excluding Speakers/Stand) Net weight (excluding Speakers/Stand)Resolution Display dimensions Operating : 5 °C to 35°C, Storage : 0°C to 40°C Operating : 20% to 80%, Storage : 20% to 90% (non-condensing) AC100 - 240V, 50/60Hz RGB1 DVI input terminal (DVI-D) RGB1 audio input terminal (3.5mm Stereo Mini Jack) RGB2 analog RGB input terminal (D-sub 15-pin) RGB2 audio input terminal (3.5mm Stereo Mini Jack) 0.7 V/1.0 Vp-p, analog RGB (Recommended Signal) 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/50* 1, 720p/60 H/V separate, TTL level [2KΩ] H/V composite, TTL level [2KΩ] Sync on green, 0.3 Vp-p [75Ω ] ANT : 75ΩUnbalanced PAL B, G, H / I / D, K SECAM B, G / K1 / L, Lí / (D, K)* 2 OUTPUT (MONITOR): composite video monitor-output terminal (RCA) OUTPUT (MONITOR): L/R audio monitor- output terminal (RCA) OUTPUT (HEADPHONE): L/R audio monitor- output terminal ( 3.5mm Stereo Mini Jack ) 1030 (W) x 636 (H) x 104 (D) mm 1024(H) x 1024 (V) pixelsApprox. 42 inches (922 (H) x 522 (V) mm,diagonal 1059mm) 36.0kg 380W / <3W speaker 12W + 12W (6Ω) AV1: composite video/S video/L/R audio input terminal (SCART) AV2: composite video/RGB/L/R audio input terminal (SCART) AV3: composite video/RGB/L/R audio input terminal (SCART) AV4: composite video/Y/P B/PR video/L/R audio input terminal (RCA) AV5: composite video/S video/L/R audio input terminal (RCA) AV6: HDMI input terminal AV1: PAL, SECAM, NTSC3.58, NTSC4.43 AV2: PAL, SECAM, NTSC3.58, NTSC4.43, RGB AV3: PAL, SECAM, NTSC3.58, NTSC4.43, RGB AV4: PAL, SECAM, NTSC3.58, NTSC4.43 AV4: 480i, 576i, 480p, 576p, 720p/50, 720p/60, 1080i/50, 1080i/60, AV5: PAL, SECAM, NTSC3.58, NTSC4.43 AV6: HDMI input signal Applicable video signals for each input terminal Terminal RCA/S-video/SCART DVI D-sub Signal CVBS S-video Component SCART (RGB) PC STB RGB Component AV 1 AV 2 AV 3 AV 4 AV 5 AV 6 ( :Available) HDMI RGB1 RGB2 *1 720/50 is supported by RGB1(DVI-STB) *2 The SECAM D,K system might not be normally received, depending on the model. Specifications
