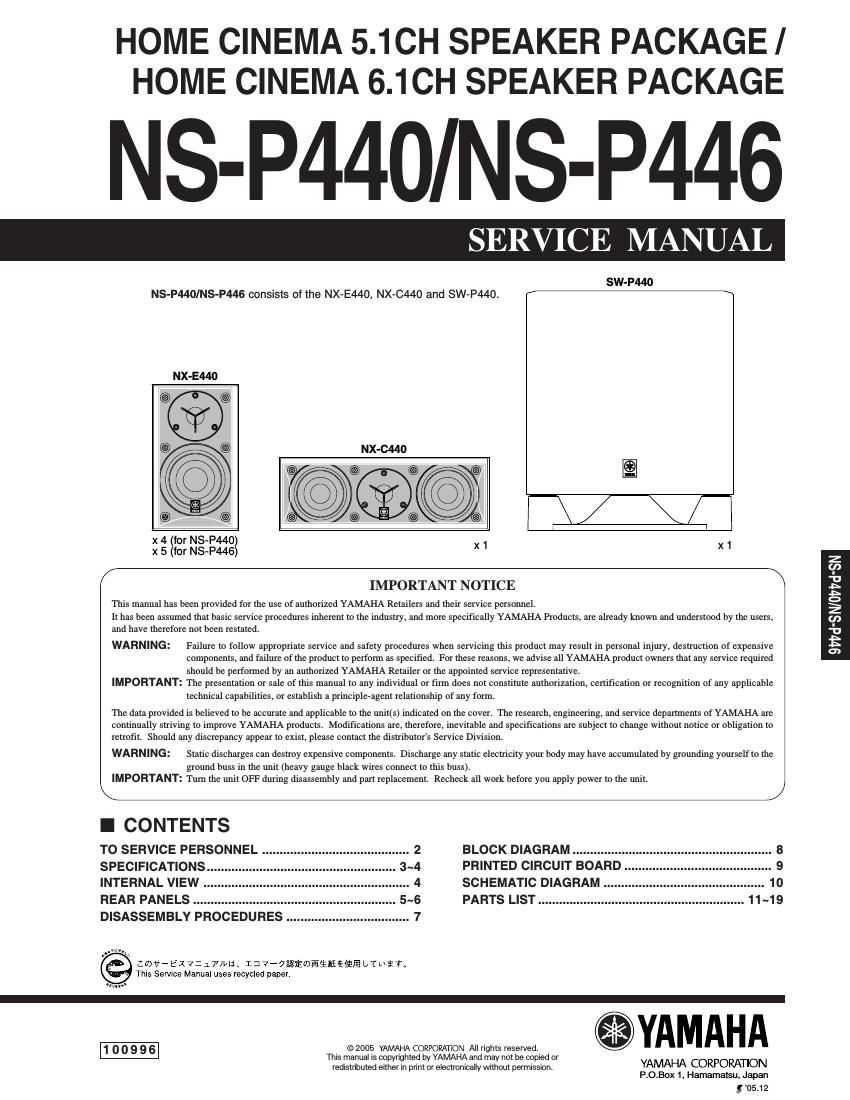

Yamaha ns p440 NS P446
This is the 20 pages manual for yamaha ns p440 NS P446.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha ns p440 NS P446 (Ocr-read)
Page 1
NS-P440/NS-P446 2 NS-P440/NS-P446 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF. CAUTION F1: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 1.6A, 125V FUSE. CAUTION F1: REPLACE WITH SAME TYPE 1.6A, 125V FUSE. ATTENTION F1: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 1.6A, 125V. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. About Lead Free Solder Side A Side BSMT REFLOW Process MI FLOW Process Solder Dip Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work. - Sn + Ag + Cu (tin + silver + copper) - Sn + Cu (tin + copper) - Sn + Zn + Bi (tin + zinc + bismuth) $ B V U J P O 1. As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder. 2. If lead solder must be used, be sure to remove lead free solder from each terminal section of the parts to be replaced and from the area around it completely before soldering, or make sure that the lead free solder and lead solder melt together fully. The P.C.B.s installed in this unit are soldered using the following solder. MAIN P.C.B.Side A –Side B Lead Free Solder
Page 2
NS-P440/NS-P446 3 NS-P440/NS-P446 SPECIFICATIONS NX-E440 Type.................................................. 2-way Acoustic Suspension Magnetic Shielding Type Driver Woofer ................. 8 cm (3-1/8") Cone Magnetic Shielding Type x 1 Tweeter ... 2.5 cm (1") Balanced Dome Magnetic Shielding Type x 1 Frequency Response....................................... 65 Hz to 40 kHz Impedance....................................................................... 6 ohms Nominal Input..................................................................... 40 W Maximum Input.................................................................. 80 W Sensitivity....................................................... 80 dB/2.83 V, 1 m Crossover Frequency....................................................... 7 kHz Input Terminal............................................................. Push type Dimensions (W x H x D) ......................... 118 x 198 x 136.8 mm (4-5/8" x 7-13/16" x 5-3/8") Weight........................................................... 1.4 kg (3 lbs. 1 oz.) Finish Silver color.................................. U, C, R, K, A, B, G, L models Black color ....................................... U, C, R, A, B, G, L models Light Cherry color ............................ C, R, K, A, B, G, L models Appropriate Speaker Stand.................................. SPS-30MMS Appropriate Speaker Bracket......................................SPM-8S Speaker Bracket Accessory Screw Size............................. M6 NX-C440 Type.................................................. 2-way Acoustic Suspension Magnetic Shielding Type Driver Woofer ................. 7 cm (3-1/8") Cone Magnetic Shielding Type x 2 Tweeter ... 2.5 cm (1") Balanced Dome Magnetic Shielding Type x 1 Frequency Response....................................... 65 Hz to 40 kHz Impedance....................................................................... 6 ohms Nominal Input..................................................................... 40 W Maximum Input................................................................100 W Sensitivity....................................................... 82 dB/2.83 V, 1 m Crossover Frequency....................................................... 8 kHz Input Terminal............................................................. Push type Dimensions (W x H x D) ...........................285 x 99 x 129.7 mm (11-3/16" x 3-7/8" x 5-1/8") Weight........................................................... 1.9 kg (4 lbs. 3 oz.) Finish Silver color.................................. U, C, R, K, A, B, G, L models Black color ....................................... U, C, R, A, B, G, L models Light Cherry color ............................ C, R, K, A, B, G, L models SW-P440 Type.................. Advanced Yamaha Active Servo Technology II Output Power..................... 50 W (100 Hz, 5 ohms 10% T.H.D) Dynamic Power.................................................. 100 W, 5 ohms Input Impedance INPUT (PJ)................................................................ 12 k-ohms Frequency Response....................................... 30 Hz to 180 Hz Driver............................................. 16cm (6-5/16") Cone Woofer Magnetic Shielding Type Input Section INPUT .................................................................. RCA Pin Jack Operation Section Power Switch, Volume Control, LED indicator QD-Bass Technology QD-Bass (Quatre Dispersion Bass) technology is a Yamaha unique technology to radiate the sound efficiently in four horizontal direction. Advanced YST Advanced Yamaha Active Servo Technology is a unique system to let the speaker unit have a per- fectly linear motion by the speaker and amplifier combination. Power Supply U, C models .................................................... AC 120 V, 60 Hz R, L models ...................... AC 110-120 / 220-240 V, 50 / 60 Hz K model ........................................................... AC 220 V, 60 Hz A model ........................................................... AC 240 V, 50 Hz B, G models .................................................... AC 230 V, 50 Hz Power Consumption......................................................... 45 W Dimensions (W x H x D) ......................... 280 x 325 x 295.3 mm (11" x 12-13/16" x 11-5/8") Weight......................................................... 8.2 kg (18 lbs. 1 oz.) Finish Silver color.................................. U, C, R, K, A, B, G, L models Black color ....................................... U, C, R, A, B, G, L models Light Cherry color ............................ C, R, K, A, B, G, L models ACCESSORIES Speaker Cable (4 m) x 3, Speaker Cable (15 m) x 2 [for NS- P440) / x 3 [for NS-P446], Fastener x 2 [for NX-C440], Subwoofer Cable (5 m) x 1, Nonskid pad x 4 [for SW-P440] * Specifications are subject to change without notice due to product improvements. U ..........U.S.A. model C......Canadian model R ..........General model K......Korean model A ..........Australian model B......British model G ..........European model L.......Singapore model
