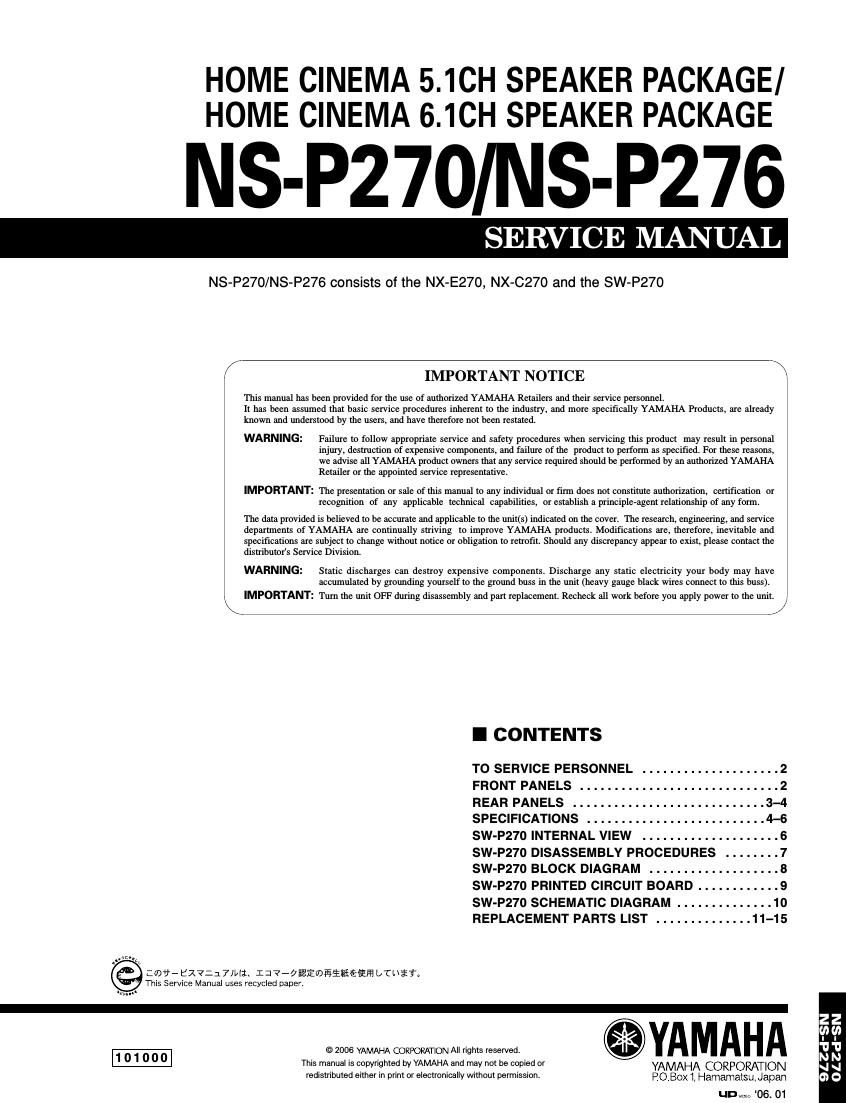

Extracted text from yamaha ns p270 NS P276 (Ocr-read)
Page 1
NS-P270/NS-P276 2 NS-P270 NS-P276 SW-P270 FRONT PANELS TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. x4 for (NS-P270) x5 for (NS-P276) NX-C270 NX-E270 AC LEAKAGE TESTER OR EQUIVALENT EQUIPMENT UNDER TEST INSULATING TABLE WALL OUTLET x1 x1
Page 2
NS-P270/NS-P276 NS-P270 NS-P276 3 NS-P270 NS-P276 SW-P270 (U, C models) SW-P270 (T model) SW-P270 (R model) SW-P270 (A model) SW-P270 (B, G models) SW-P270 (K model) REAR PANELS POWER INDICATOR POWER INDICATOR POWER INDICATOR POWER INDICATOR POWER INDICATOR POWER INDICATOR
