Extracted text from yamaha ns c5 hx (Ocr-read)

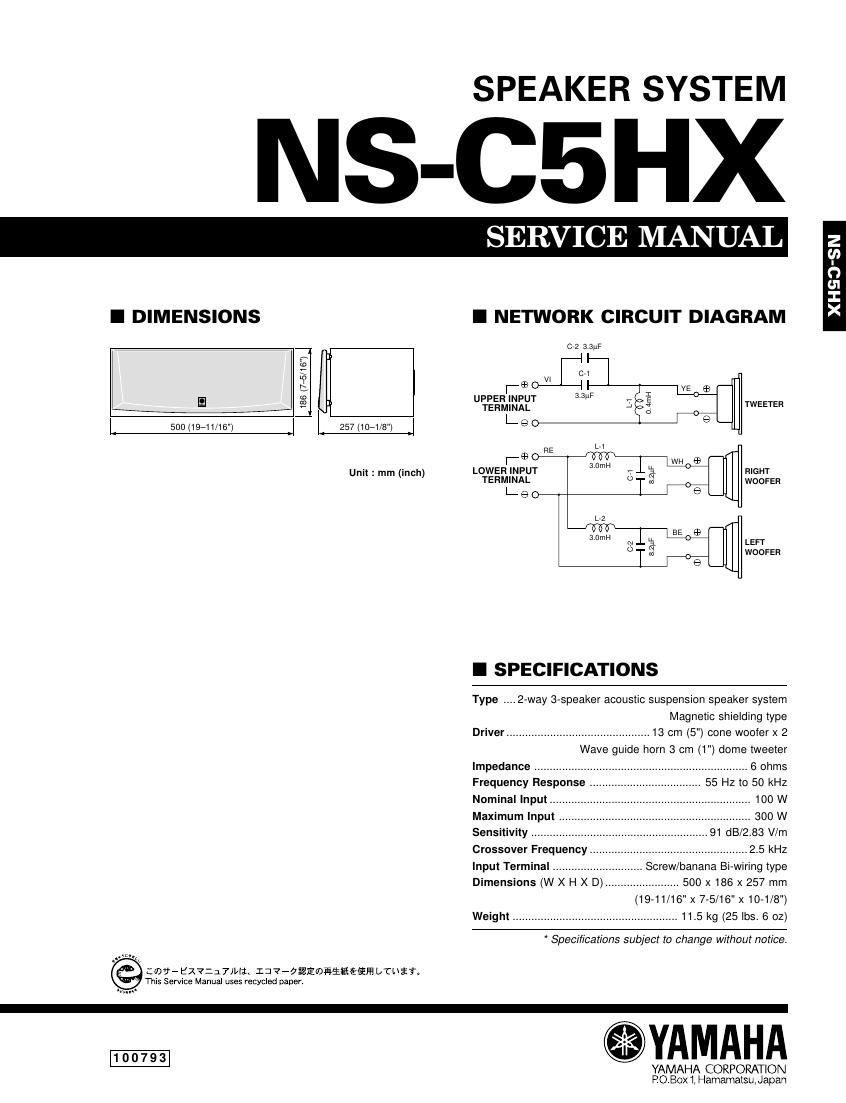

Page 1
I DIMENSIONS
V
186 (7-5/15")
500 (19-l1/16")
257 (10-1/8")
This Service Manual uses recycled paper.
Unit : mm (inch)
@ :mv-Ez7:;71m\ lav-afizmfiifléfifi crust
SPEAKER SYSTEM
S-C5HX
SER CE MAN U
I NETWORK CIRCUIT DIAGRAM
0-2 3 mm
VI 6'
63 \/
UPPER INPUT 3 3"
TERMINAL TWEETER
L e -
RE
f :+; of
LOWER INPUT RIGHT
TERMINAL WOOFER
L e o
LEFT
WOOFER
I SPECIFICATIONS
Type ....2-way 3-speaker acoustic suspension speaker system
Magnetic shielding type
Driver .......................................... 13 cm (5) cone woofer x 2
Wave guide horn 3 cm (1") dome tweeter
Impedance ..................................................................... 6 ohms
Frequency Response 55 HZ to 50 kHz
Nominal Input ....................... 100 W
Maximum Input .............................................................. 300 W
Sensitivity ................ 91 dB/2.83 V/m
Crossover Frequency .. 2.5 kHz
Input Terminal ............................. Screw/banana Bi-wiring type
Dimensions (W X H X D) ..................... 500 x 186 x 257 mm
(19-11/16 x 7-5/16"x10-1/8")
Weight ..................................................... 11.5 kg (25 lbs. 6 oz)
" Specifications subject to change without notice.
YAMAHA
YAMAHA CORPORATION
PO. Boxl Harnamatsu Japan
