Yamaha ns c300

This is the 2 pages manual for yamaha ns c300.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2

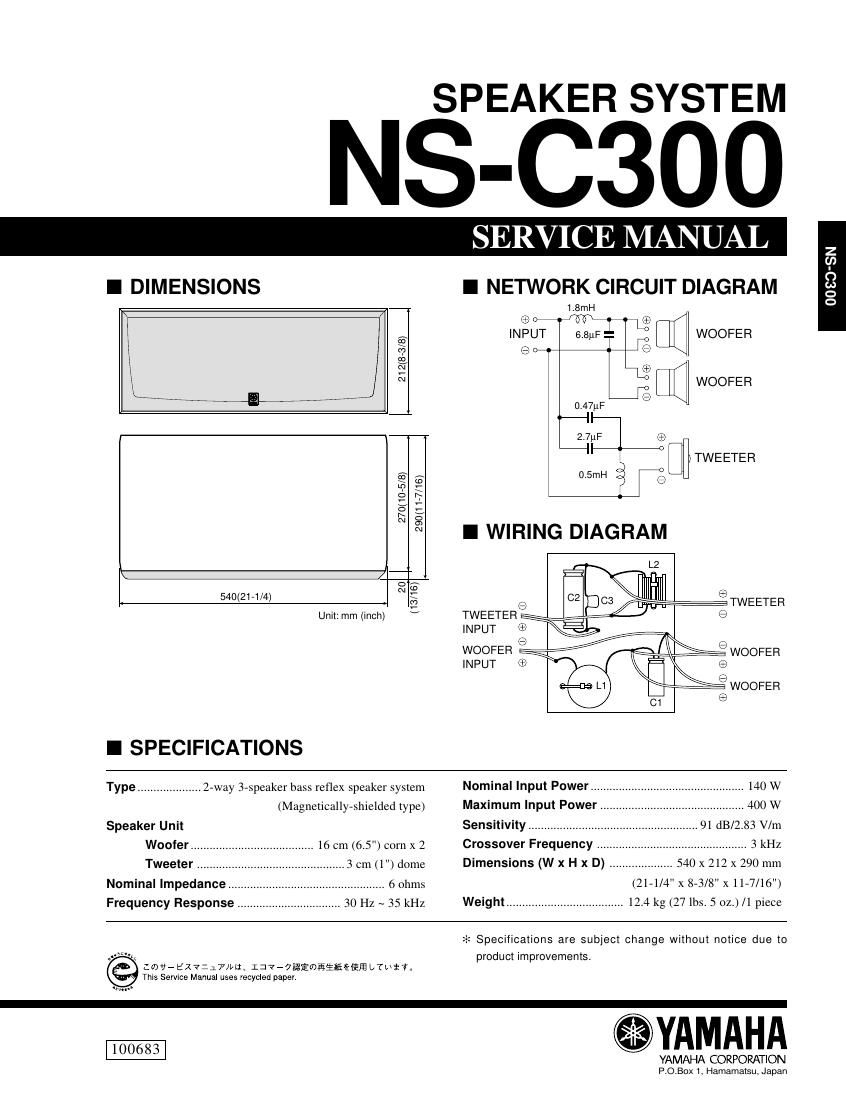

yamaha ns c300

Extracted text from yamaha ns c300 (Ocr-read)


Page 1

1 1-3-4 1-3-5 2 2-3 5 67 9 910 1-3-7 2-4 1-5 9 5 The Network Ass'y is fixed with staple. NS-C300 PARTS LIST EXPLODED VIEW * 1 V4056200 CABINET ASSY CH * 1 V4056300 CABINET ASSY BL * 1-3-4 VA806800 ELECTROLYTIC CAP 6.8uF 50V 1-3-5 FR116270 PAPER CAP 2.7uF 160V * 1-3-7 V4346900 MYLAR FILM CAP 0.47uF 50V 1-5 CB605250 HOLDER * 2 V4056000 FRONT GRILLE ASSY CH * 2 V4585300 FRONT GRILLE ASSY BL 2-3 V2192200 EMBLEM YAMAHA 2-4 VP161000 PUSH NUT SPN1.5 * 5 XW231A00 LOUD SPEAKER 16cm * 6 XW232A00 LOUD SPEAKER 2.5cm * 7 V4041400 SPEAKER TERMINAL 4P * 9 V4041500 HEXAGON HEAD WOOD SCREW 4x20 MFCR3 10 EN230180 OVAL HEAD TAPPING SCREW 3.5x16 MFC2-BL * New Parts Ref. No. PART NO. Description Remarks Markets
