Yamaha ns c200

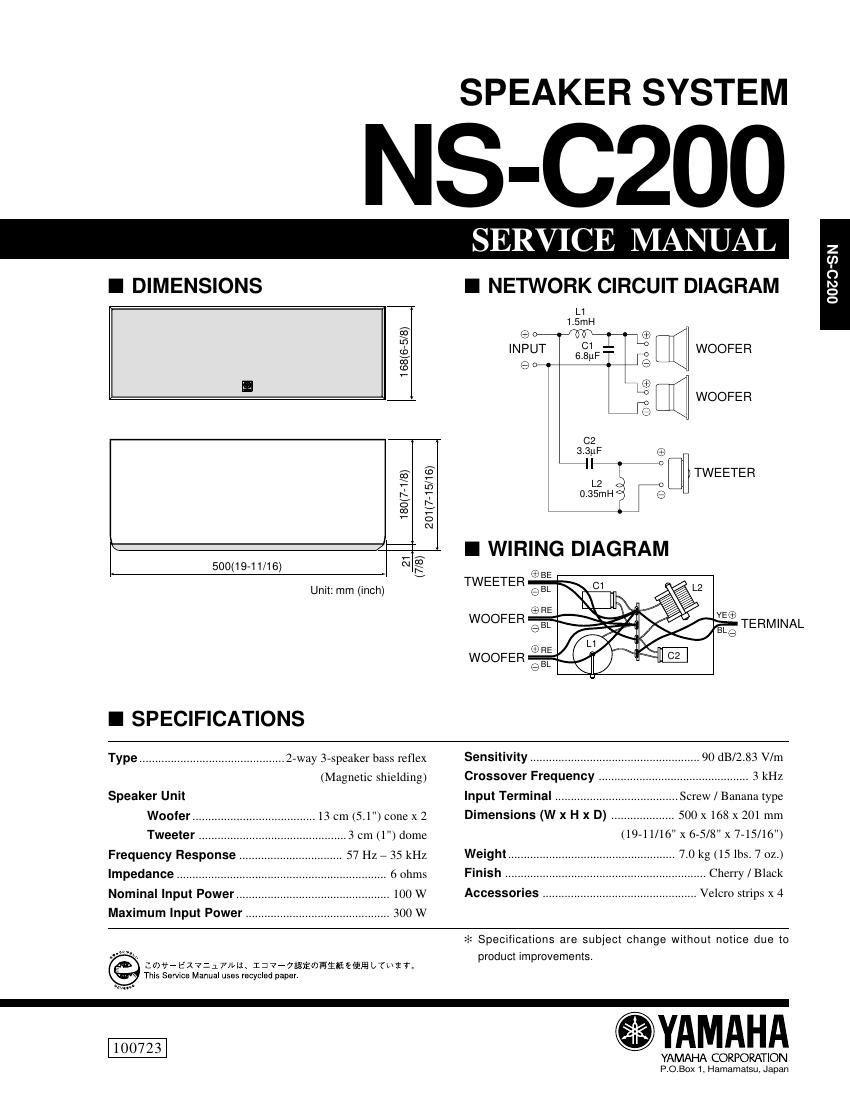

This is the 2 pages manual for yamaha ns c200.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha ns c200 (Ocr-read)
Page 1
17 8 9 21 202 1-4 1-1-6 1-1-5 1-1-7 1-1-7 1-1-8 5 5 4 22 22 22 2 NS-C200 EXPLODED VIEW PARTS LIST * 1 V5567300 CABINET ASS'Y CH * 1 V5567400 CABINET ASS'Y BL * 1-1-5 V5370100 ELECTROLYTIC CAP 6.8uF 63V * 1-1-6 V6367500 ELECTROLYTIC CAP 3.3uF 63V 1-1-7 CB818540 BINDING TIE T-30RF-2 1-1-8 EP030200 BIND HEAD TAPPING SCREW 3x8 ZMC2-Y 1-4 CB605250 HOLDER * 2 V5567500 FRONT GRILLE ASS'Y CH * 2 V5567600 FRONT GRILLE ASSY BL * 4 XW232A00 LOUD SPEAKER 3cm 6Ω 50W * 5 XY380A00 LOUD SPEAKER 13cm 12Ω 30W 7 V5361300 SPEAKER TERMINAL 2P 8 V5361400 TERMINAL CAP S06E RED 9 V5361500 TERMINAL CAP S06E BLACK 21 V5537900 OVAL HEAD TAPPING SCREW #1 3.5x16 MFZN2BL 22 V5537800 HEXAGON SOCKET TAPPING SCREW 4x20 MFZN2BL ACCESSORIES 202 V4903800 VELCRO STRIP x 4 * New Parts Ref. No. PART NO. Description Remarks Markets Use an Allen wrench (3mm) to unscrew the loud speaker.
