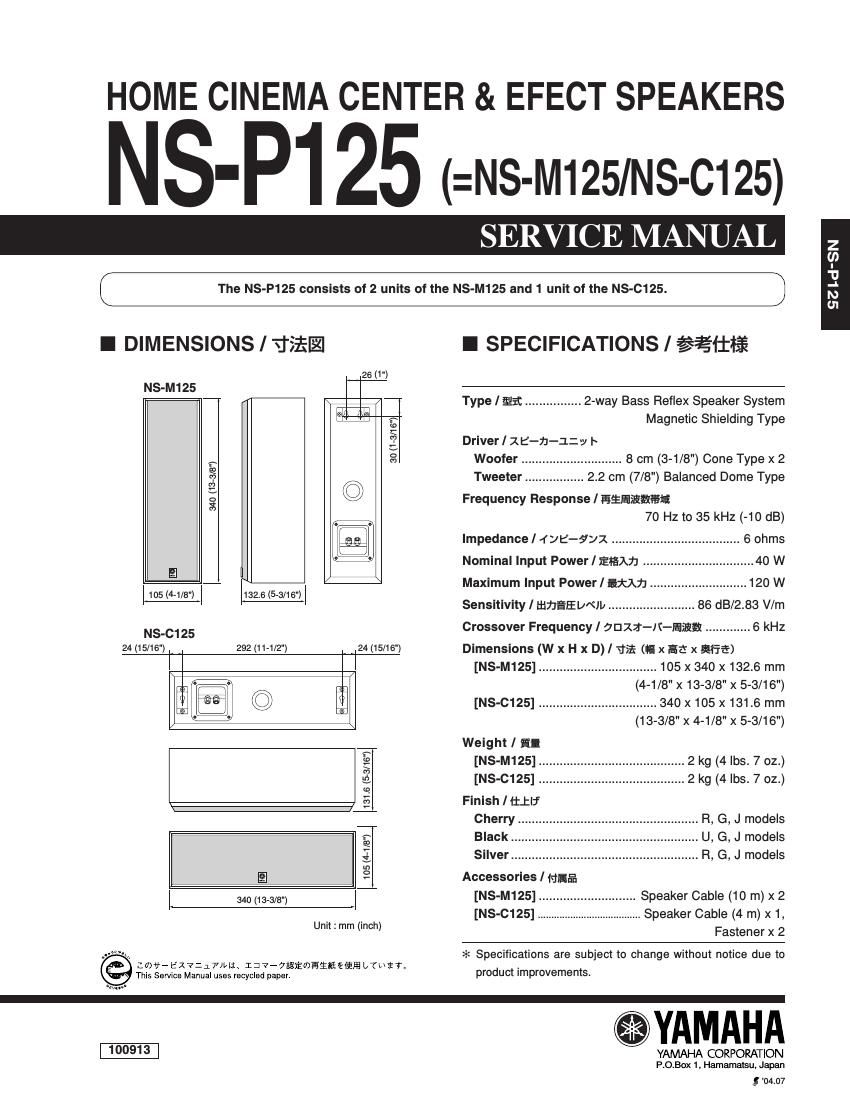

HOME CINEMA CENTER & EFECT SPEAKERS

NS-P125 (=NS-M125/NS-C125)

SERVICE MANU

[ The NS-P125 consists of 2 units of the NS-M125 and 1 unit of the NS-C125. ]
I DIMENSIONS / {I'Sfil I SPECIFICATIONS / §%I:I:I§
26 (1")
NS-M125
* *1 Type / flit ................ 2-way Bass Reflex Speaker System
II- ; Magnetic Shielding Type

: Driver l 215-71-sz b
8 Woofer ............................. 8 cm (3-1/8") Cone Type x 2
Tweeter ................. 2.2 cm (7/8") Balanced Dome Type

340 (13 3/8)
//\

Frequency Response / fixlflflfifiiéfi
70 Hz to 35 kHz (-10 dB)

, a
éé lmpedance/(yE-s'yx ..................................... 6 ohms

@73 Nominal Input Power I Eifixh ................................ 40 W
I" 7 Maximum Input Power I ex: ............................ 120 w
105(4-1/8") I I132.s(5.3/16")I , _ _
- Sensmvrty / .flfiéEL/«UIJ ......................... 86 dB/2.83 V/m
NS-C125 Crossover Frequency / aulz-Ii-fiflflfi ............. 6 kHz
24 115/16") 1 292 (11-1/2") 124115/16") Dimensions (W x H x D) l 7.132% (E x at x $153)
I I [NS-M125] .................................. 105 x 340 x 132.6 mm
k. (4-1/8" x 13-3/8" x 5-3/16")
n
E] @g 19) E] [NS-C125] .................................. 340 x105 x 131.6 mm
" 3 (13-3/8" x 4-1/8" x 5-3/16")
Weight I SE
[NS-M125] .......................................... 2 kg (4 lbs. 7 oz.)
[NS-C125] .......................................... 2 kg (4 lbs. 7 02.)
Finish l lilei
7 Cherry .................................................... Ft, G, J models
g Black .. U, G, J models
; Silver.. .. Ft, G, J models
E . a Accessories I NEE-ii
340 113.313") 7 [NS-M125] ............................ Speaker Cable (10 m) x 2
[NS-C125] ...................................... Speaker Cable (4 m) x 1,
Unit : mm (inch) Fastener X 2
WWW, :1: Specifications are subject to change without notice due to
:wviexv:171m. 1:777:2toeemislemwwzn .
@ This Service Manual uses recycled paper. product Improvements.

YAMAHA

YAMAHA CORPORATION

P.O.Box 1. Hamamatsu, Japan
g '04.07
