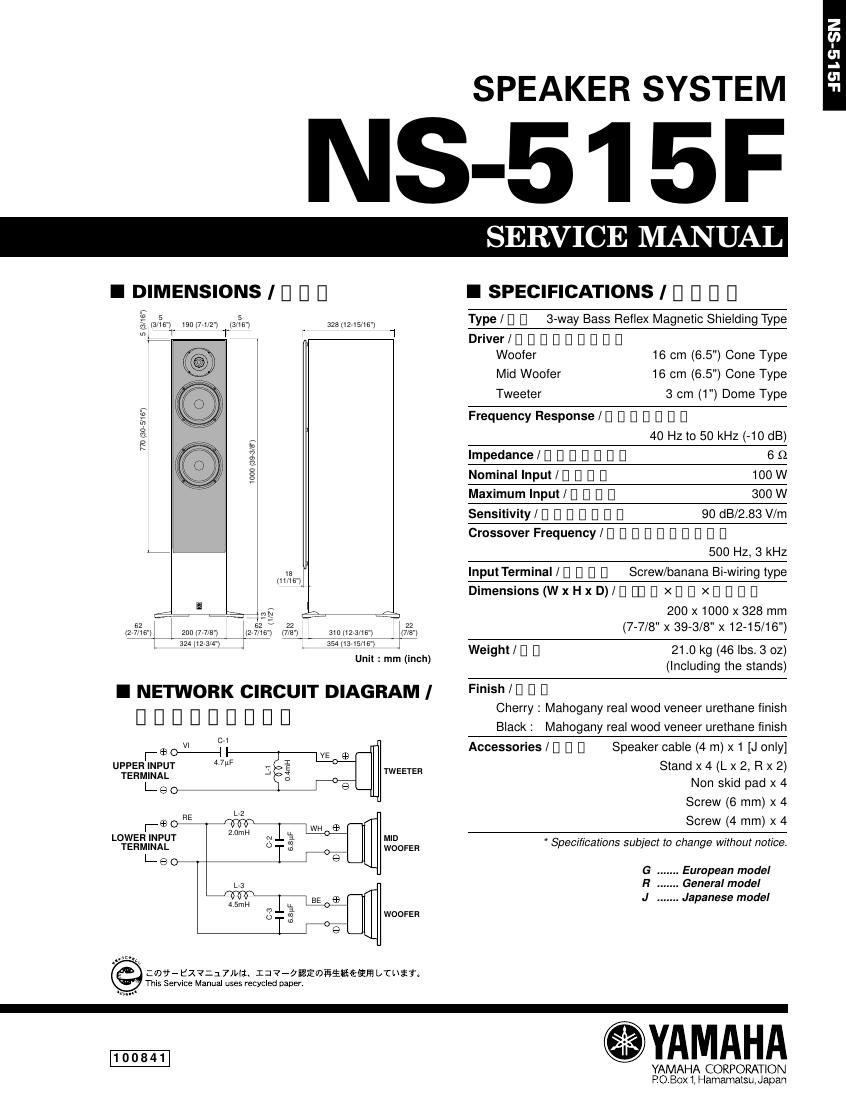

SPEAKER SYSTEM

5-51 5F

SERVICE MAN U

I DIMENSIONS I D D D

5 5
{1/( IS) 190042) (3I6)

7 328(I215I16I
i
I
E

IE
[I] Isl
, E , r , _
2'; g g a: f I: 3' 9,; 47;
62 52 V 22 22
(27/183 200 (7,7 8) (2 716) ma") 3m (12m 6) (7 a)
324 (12 My 354 (1345 ISI

Unit : mm (inch)

I NETWORK CIRCUIT DIAGRAM /
D D D D D D D D D

UPPER INPUT 4 7

TERMINAL TWEETER

LOWER INPUT
TERMINAL

Leo

MID
WOOFER

WOOFER

zmfi- E17217M3. III V-Qflimfiiifiéffilfi bruit
This Service Manual uses recycled paper.

I SPECIFICATIONS I D D D D

Type / D D 3-way Bass Reflex Magnetic Shielding Type
DriVer/DDUUDDDDI]

Woofer 16 cm (6.5") Cone Type
Mid Woofer 16 cm (6.5") Cone Type
Tweeter 3 cm (1") Dome Type

Frequency Response / D D D D D D D
40 Hz to 50 kHz (-10 dB)

lmpedance/DDDDDDI] 60

Nominal Input/D D D D 100W
Maximum Input/D D D D 300W
Sensitivity / D D D D D D D 90 dB/2.83 V/m

Crossover Frequency/D D D D D D D D D D
500 Hz, 3 kHz
Input Terminal / D D D D Screw/banana Bi»wiring type
Dimensions(WxHxD)/D III [I m [I XEI [I [I [I
200 X 1000 x 328 mm
(7-7/8" x 39-3/8" x 12-15/16")

21.0 kg (46 lbs. 3 oz)
(Including the stands)

Weight / I] I]

Finish / D D D
Cherry : Mahogany real wood veneer urethane finish
Black : Mahogany real wood veneer urethane finish
Accessories / D D D Speaker cable (4 m) x 1 [J only]
Standx4(L><2, Rx2)
Non skid pad x 4
Screw (6 mm) x 4
Screw (4 mm) x 4

Specifications subject to change without notice.

G European model
R General model
J ....... Japanese model
