Yamaha ns 45 e
This is the 4 pages manual for yamaha ns 45 e.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha ns 45 e (Ocr-read)
Page 1

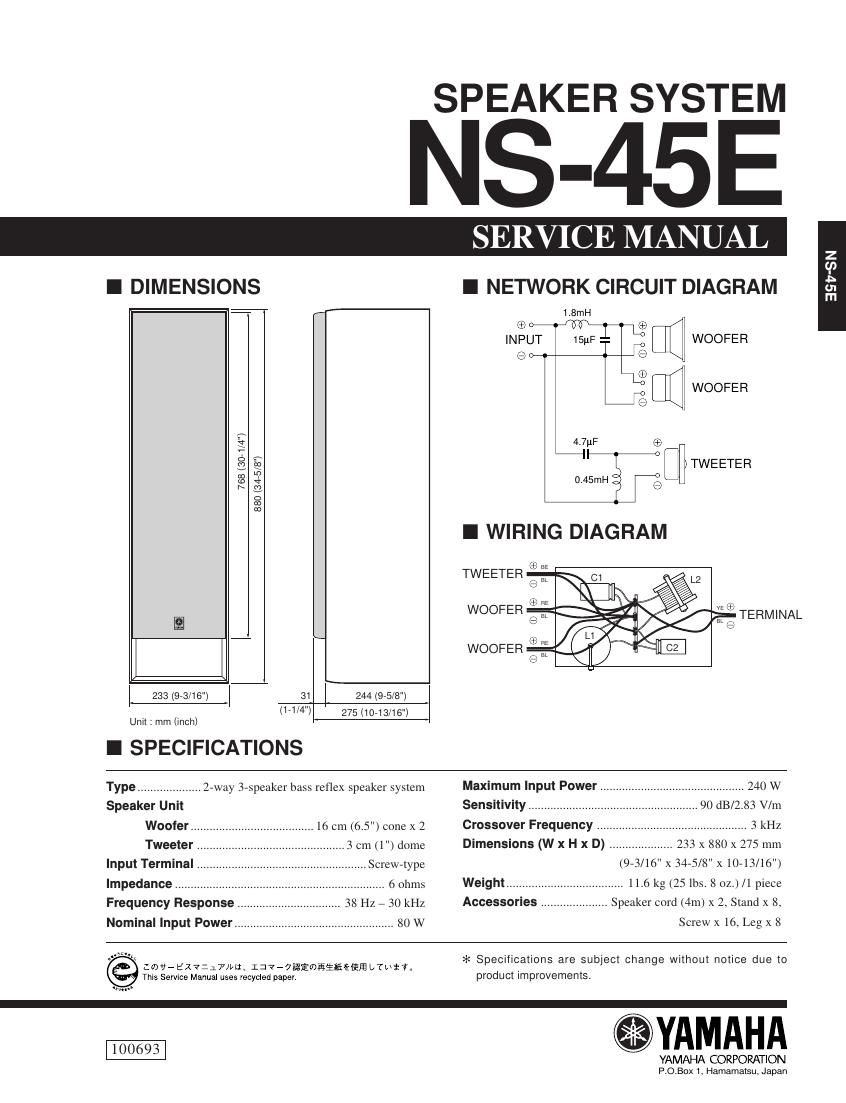

1 22 3 21 6 4 21 2-2 2-11-1 201 203 202 200 2 1-5 1-6 NS-45E EXPLODED VIEW ABCDE 1 2 3 4 5 6 7
Page 2
PARTS LIST * 1 V4126000 SPEAKER CABINET 1-1 VU932600 HOLDER 1-5 FM177150 ELECTROLYTIC CAP 15uF 50V 1-6 VD929600 ELECTROLYTIC CAP 4.7uF 50V * 2 V4106400 SPEAKER TERMINAL 203-TST-S14BC 2-1 V2729700 EMBLEM A 2-2 VP161000 PUSH NUT SPN1.5 * 3 XW307A00 LOUD SPEAKER TWEETER * 4 XW309A00 LOUD SPEAKER WOOFER * 6 V4140500 FRONT GRILLE ASSY 21 V2769000 HEXAGON SOCET TAPPING SCREW 4x20 MFC2-BL 22 EN230180 OVAL HEAD TAPPING SCREW 3.5x16 MFC2-BL ACCESSORIES 200 VT704200 SPEAKER CABLE 4.0m 201 V4564100 STAND ASSY STANDx1 * 202 V4564500 LEG LEGx8 203 EP040250 BIND HEAD TAPPING SCREW 4x16 ZMC2-BL * New Parts Ref. No. PART NO. Description Remarks Markets NS-45E
