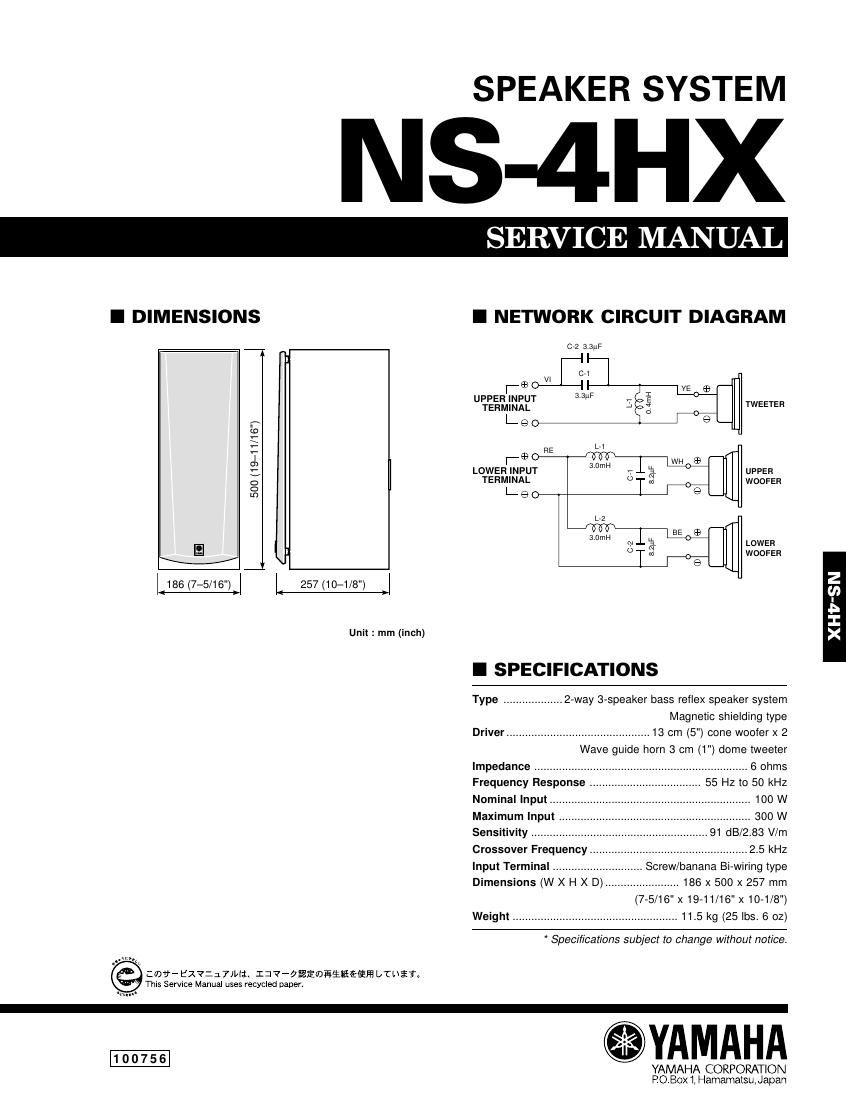

Page 1
I DIMENSIONS
SPEAKER SYSTEM
NS-4HX
a
\_/
500 (19-11/16")
186 (7-5/16")
257 (10-1/8")
Unit : mm (inch)
209* EX7217JH1 IJ 7*75Eiwfiirfiéffifi LTLiTD
ThIs SerVIce Manual uses recycled paper.
SER
E MANU
I NETWORK CIRCUIT DIAGRAM
02 a SuF
fag: VI 6:
UPPER INPUT 3 3"
TERMINAL
L8-
TWEETER
RE
f + of
LOWER INPUT UPPER
TERMINAL WOOFER
L e o
LOWER
WOOFER
I SPECIFICATIONS
Type ................... 2-way 3-speaker bass reilex speaker system
Magnetic shielding type
Driver .......................................... 13 cm (5) cone woofer x 2
Wave guide horn 3 cm (1") dome tweeter
impedance ..................................................................... 6 ohms
Frequency Response 55 HZ to 50 kHz
Nominal Input ....................... 100 W
Maximum Input .............................................................. 300 W
Sensitivity ................ 91 dB/2.83 V/m
Crossover Frequency .. 2.5 kHz
input Terminal ............................. Screw/banana Bi-wiring type
Dimensions (W X H X D) ..................... 186 x 500 x 257 mm
(7-5/16"x19-11/16"X10-1/8")
Weight ..................................................... 11.5 kg (25 lbs. 6 oz)
" Specifications subject to change without notice.
YAMAHA
YAMAHA CORPORATION
PO. Boxl Hamamaisu Japan
