Yamaha mfc10

Page 1

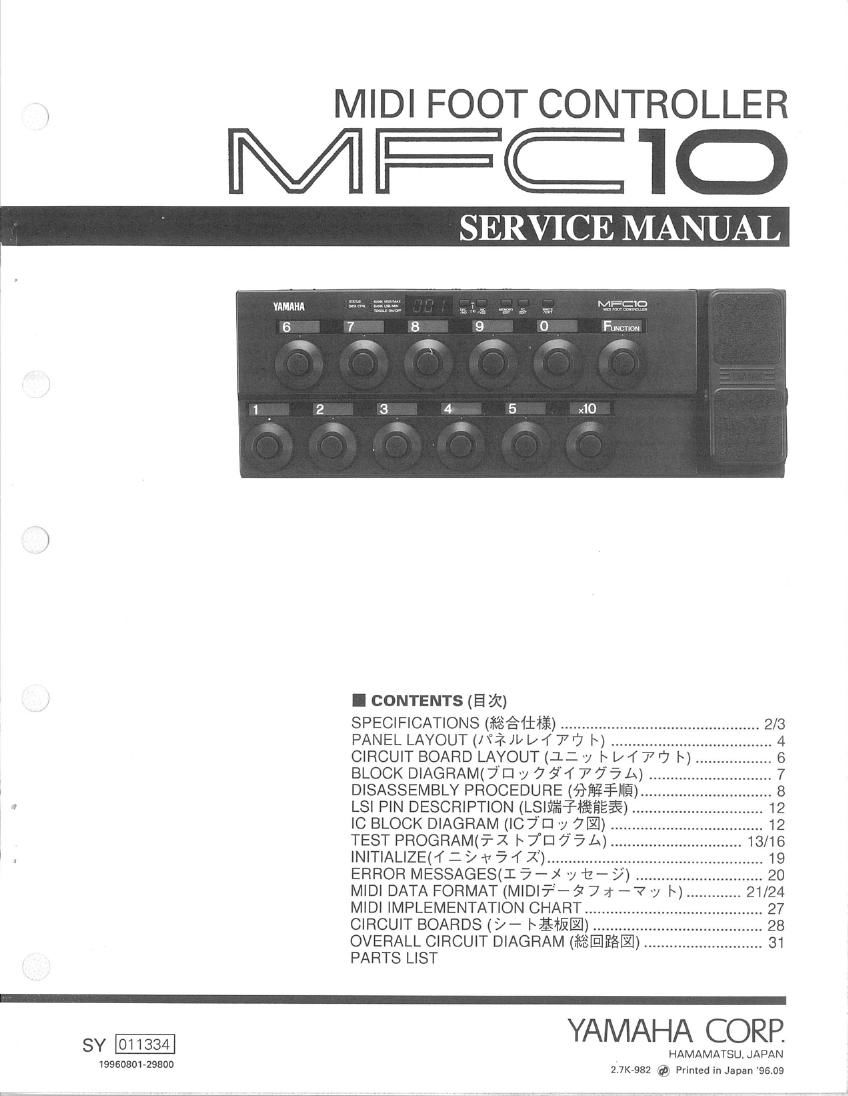

MIDI FOOT CONTROLLER

Mgg1o

YAMAHA

l CONTENTS (E 3X)

SPECIFICATIONS (fivfifififi) ............................................... 2/8
PANEL LAYOUT(/\'I}'~)l«I/f7'7 I) ........................ 4

CIRCUIT BOARD LAYOUT (1:7 I\ I/f 7'7 I~) ..

BLOCK DIAGRAM(7~Dy7§1"f775A) .......... .. 7
DISASSEMBLY PROCEDURE (QKTIIE) .......... 8
L81 PIN DESCRIPTION (LSIfiIfiTIfifiEE) 12
IC BLOCK DIAGRAM (I07 [:1 7 7I) ............ 12

TEST PROGRAM(7"Z I~ 7°13 75Lx).

|NIT|AL|ZE(f:/-I'5'fl) ....................... 19
ERROR MESSAGES(I-}-X viz-y) ................ 20
MIDI DATA FORMAT (MIDI?-$777r-\7'y I). .. 21/24
MIDI IMPLEMENTATION CHART ............................ 27
CIRCUIT BOARDS (>- Iéfli.) ..... 28
OVERALL CIRCUIT DIAGRAM (fifilfifiI) ............... 31
PARTS LIST

sv YAMAHH'AAIMEQEFN'

19960801-29800 2.7K~982 61 Printed in Japan '96.09

Page 2

MFC1O

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel, It has been assumed
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under-
stood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in per-
sonal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.

IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certifi-
cation. recognition ol any applicable technical capabilities, or establish a principal-agent relationship of
any form.

The data provided is belived to be accurate and applicable to the unitls) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity you body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to
this buss.)

IMPORTANT: Turn the unit E during disassemblv and pans replacement. Recheck a_l| work before you apply power
to the unit.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDIER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
$0 EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact wrth solder or components located inside the enclosure of this product, wash your hands before handling
food.
