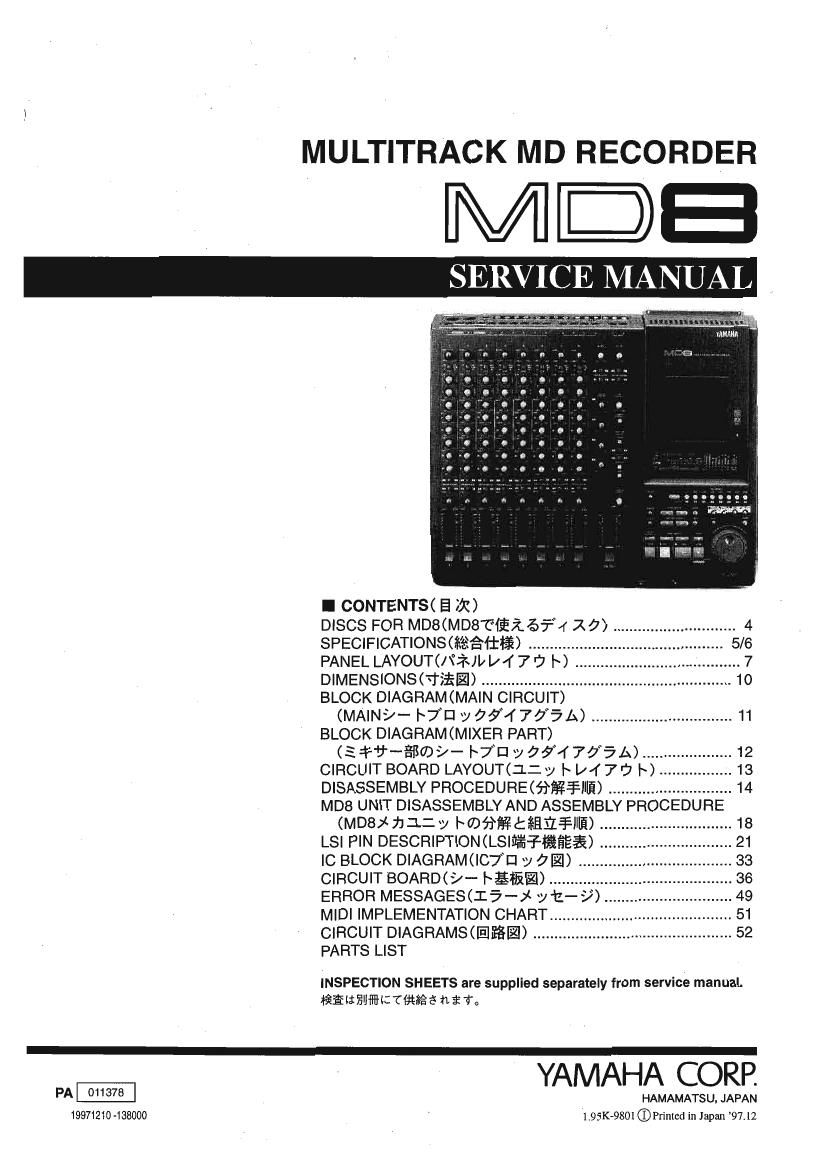

Yamaha md8 recorder service manual

Page 2

MD8

WARNING:

IMPORTANT:

WARNING:

IM PORTANT:

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has
been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products,
are already known and understood by the users, and have therefore not been restated.

Failure to follow appropriate service and safety procedures when servicing this product may
result in personal injury, dustructian of expensive components and failure of the product to
perform as specified. For these reasons, we advise all Yamaha product ovsiners that all service
required should be performed by an authorized Yamaha Retailer or the appointed service
representative.

This presentation or sale of this manual to any individual or furm does not constitute authori-
zation, certification, recognition of any applicable technical capabilities, or establish a princi«
pal-agent relationship of any form.

The data provided is belived to be accurate and applicable to the unitlsl indicated on the cover. The research
engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifi-
cations are, therefore, inevitable and changes in specification are subject to change without notice or obligation
to retrofit. Should any discrepancy appear to exist, please contact the didtributor's Service Division.

Static discharges can destroy expensive components. Discharge any static electricity you
body may have accumulated by grounding yourself to the ground buss in the unit (heavy
gauge black wires connect to this buss.)

Turn the unit O_FF during disassembly and parts replacement. Recheck a_|l work before you
apply power to the unit.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or
plastic (where applicable) components may also contain treaces of chemicals found by the California Health and
Welfare Agency (and possibly other entitiesMo cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC 0R PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY
REASON WHAT SO EVER!

Avoid prolonged, unprotected contace between solder and your skin! When soldering, do not inhale solder
fumes or expose eyes to solder/flux vapor!

If you come in contact with solder orcomponents located inside the enclosure ofthis product, wash your hands
before handling food.

- WARNING

Components having special characteristics are marked A and must be replaced with parts having specifi-
cation equal to those originally installed.

AEDDEEML §2EfifiTétmlligfifiifiTTo fiflTéfSfilt aéwtwoftaiemamerfimmw
