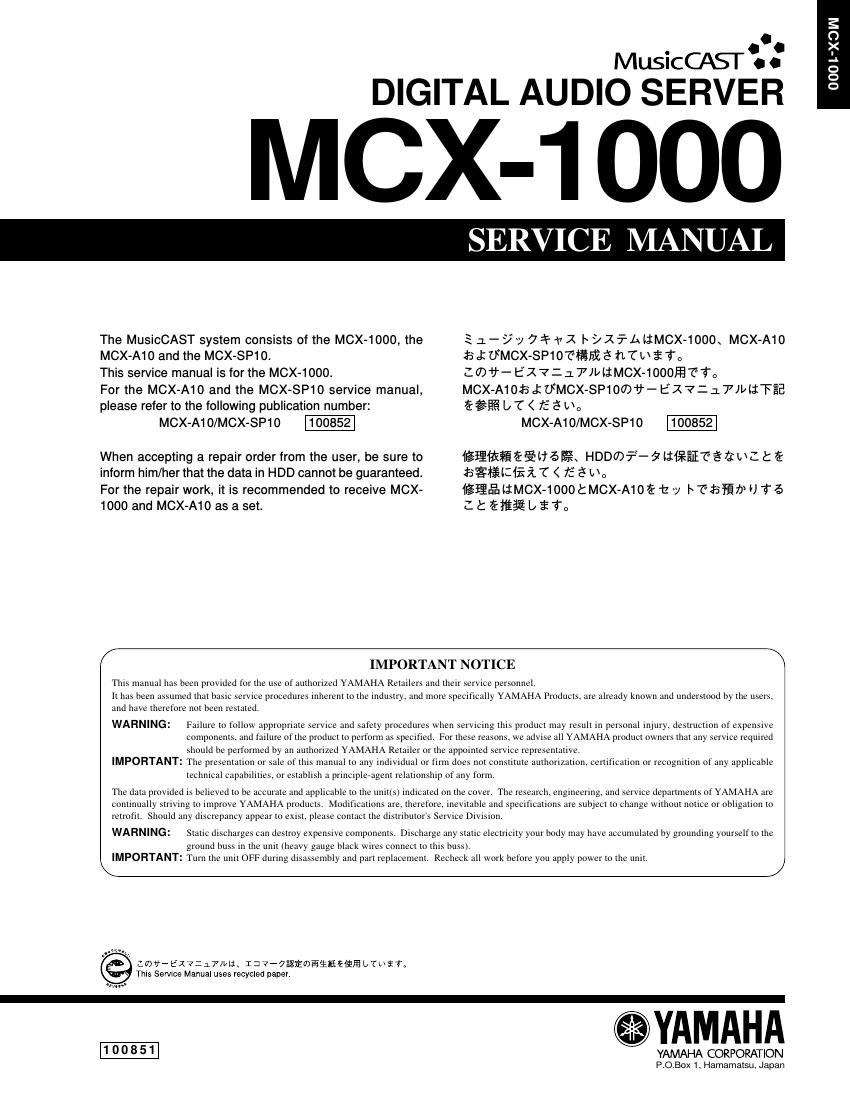

Yamaha mcx 1000
This is the 111 pages manual for yamaha mcx 1000.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha mcx 1000 (Ocr-read)
Page 1
MCX-1000 2 MCX-1000 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. CAUTION F400: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 10A, 250V FUSE. CAUTION F400: REPLACE WITH SAME TYPE 10A, 250V FUSE. ATTENTION F400: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 10A, 250V. THE COMPACT DISC RECORDER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. CONTENTS TO SERVICE PERSONNEL ...................................... 2~4 PREVENTION OF ELECTRO STATIC DISCHARGE ... 5 FRONT PANEL .............................................................. 6 REAR PANELS .......................................................... 6~7 REMOTE CONTROL PANEL ........................................ 7 SPECIFICATIONS ...................................................... 8~9 INTERNAL VIEW ........................................................... 9 DISASSEMBLY PROCEDURES / ür q.......... 10~15 SERVICE PRECAUTIONS-
Page 2
MCX-1000 3 MCX-1000 Laser Radiation Point WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not stare at the laser beam at any time. 2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Emitting conditions: 1. This device is a Class IIIb laser device. Class IIIb means With the protective case removed, exposure to the light output from the laser, either directly or reflected by a mirror, can cause harm to the eyes, but there is no danger to the eyes from exposure to dispersed reflected laser light. (Generally 0.5 W or less) 2. Always wear eyeglasses designed for protection against laser light. 3. Always wear gloves. 4. Have no reflective objects anywhere near this device. 5. Figure A shows from where in this device the laser is emitted. 6. When switching on the power to the device for the first time, always measure the laser power with a laser power meter and check that the power is no greater than the number of Watts in the specifications. 7. Never look directly at the laser light while the laser is emitting light. 8. Do not allow the laser light to shine directly on your skin while the laser is emitting light. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to carefully follow the instructions below when servicing. 1. Laser Diode Properties - Material : GaAlAs - Wavelength : 779-789 nm - Emission Duration : Pulse - Laser Output : DC erase mode max. 20mW (Continuous) ✻ Write mode max. 62mW ✻ (Max. Cycle 111 ns, Min. Cycle 30 ns at Max. Speed) ✻ This output is the value measured at the lens of the Laser Pickup Unit. 2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ' J H V S F "
