Yamaha mb 02

Page 1

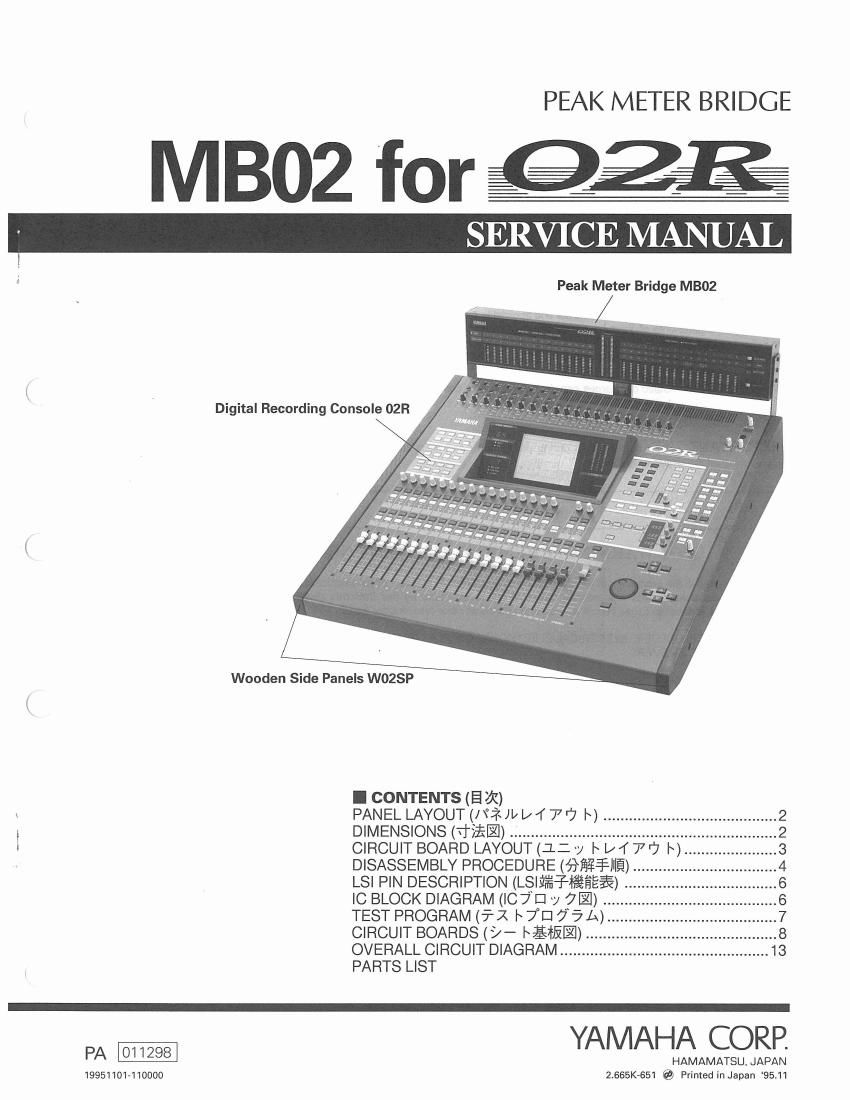

PEAK METER BRIDGE

MBOZ for gigaé

Peak Meter Bridge MBOZ

Digital Recording Console 02R

Wooden Side Panels WOZSP

I CONTENTS (E >51)

PANEL LAYOUT (Him/47"] I~) ......................................... 2
DIMENSIONS (Trail) .......................................
CIRCUIT BOARD LAYOUT (1: y I I/f 7r? I~) ..
DISASSEMBLY PROCEDURE (GREENE) ..........
LSI PIN DESCRIPTION (LSIyfii¥l§fiE§) ..
IC BLOCK DIAGRAM (IC in \y 7.) .......
TEST PROGRAM (ix I in 75A) ..
CIRCUIT BOARDS (>- Igifil)....
OVERALL CIRCUIT DIAGRAM ................................................. 1
PARTS LIST

2
3
...4
...6
...6
7
8
3

PA YAMAHA CORP.

HAMAMATSU. JAPAN
19951101410000 2.665K7651 @ Primed in Japan 95.11

Page 2

M BOZ

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been
assumed that basic sen/ice procedures inherent to the industry, and more specifically Yamaha Products, are already known
and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in
personal injury, destruction of expensive components and failure of the product to perform as
specified. For these reasons, we advise all Yamaha product owners that all service required should be
performed by an authorized Yamaha Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization,
certification, recognition of any applicable technical capabilities, or establish a principal-agent
relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering,
and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, in-
evitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy
appear to exist, please contact the distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may
have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires
connect to this buss).

IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply
power to the unit.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY
REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
