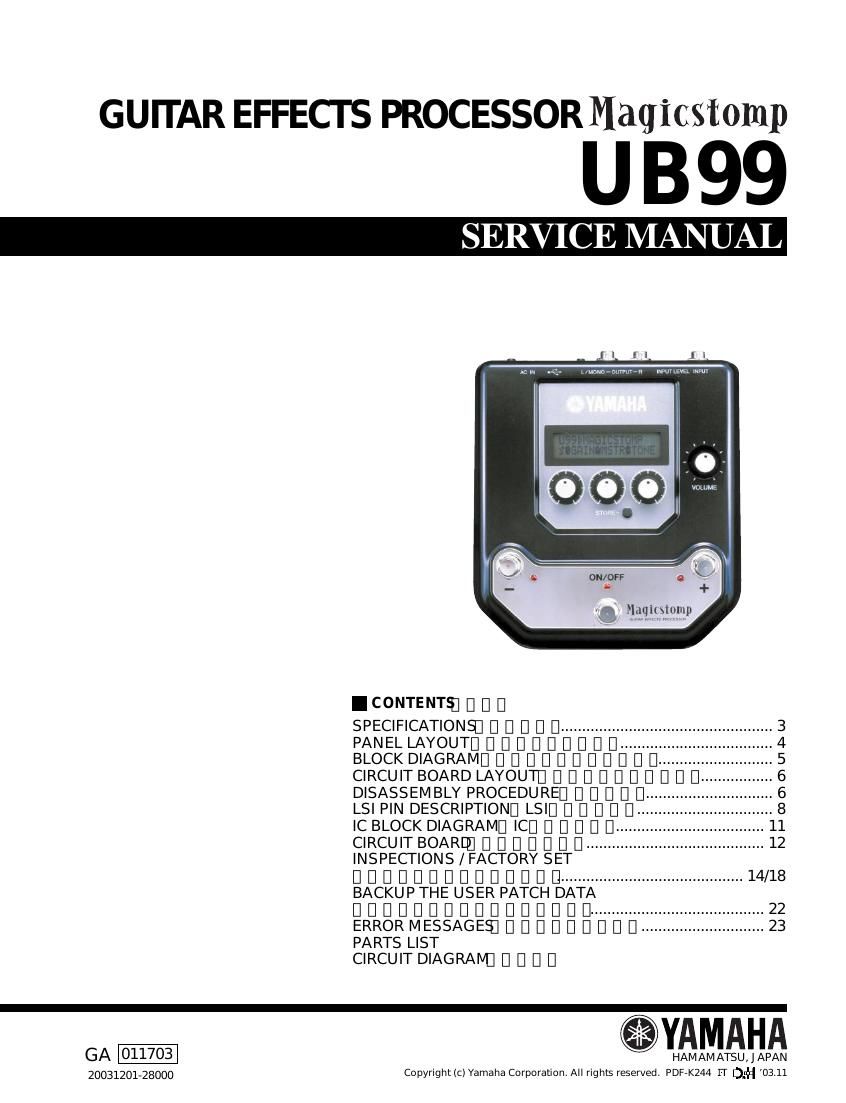

Yamaha magicstomp ub99mki
This is the 33 pages manual for yamaha magicstomp ub99mki.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha magicstomp ub99mki (Ocr-read)
Page 1
2 UB99 WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributorÕs Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. ¹w Ž ¼xz† ¶›¡ËbhŠt OAs æ ¼pb{¦õb Ôùxz† ¶whŠt žc¦ w æ ¼›]–;X5à4Ð'° WARNING
Page 2
UB99 3 SPECIFICATIONS Digital Section ¥ Digital signal processing effector ¥ Includes special editor application ÒSound Editor for MAGICSTOMPÓ ¥ Patch Select: 2 Modes ¥ Built-in Chromatic Auto Tuner Communications Receive: Parameter Change, Bulk In (1 patch), Bulk In (99 patch) Transmit: Bulk Out (99 patch) Controller/Switch Knob x4 CONTROL1, 2, 3, VOLUME Push Switch x4 Ð, +, ON/OFF, STORE Slide Switch x1 INPUT LEVEL (HIGH/LOW) Display 16 x 2 character LCD (w/Back light) LED x 3 (Ð, +, ON/OFF) Connections INPUT: Standard Monaural Phone Jack OUTPUT L/MONO, R: Standard Monaural Phone Jack USB AC IN A/D Converter 24 bit + 3 bit Floating D/A Converter24 bit Sampling Frequency44.1 kHz Memory AllocationsPreset: 99 User: 99 Input Level/Impedance INPUT HIGH: -25dBm/1 MW INPUT LOW : -15dBm/1 MW Output Level/Impedance OUTPUT L/MONO, R: 0dBm/1 kW Power Exclusive Power Adaptor (AC-10) AC Output: AC 12 V, 1 A Power Consumption12 W Dimensions (W x H x D) 164 x 62 x 176 mm (6-7/16" x 2-7/16" x 6-15/16") Weight910 g (2lbs.) AccessoriesPower Adaptor (AC-10) CD-ROM USB Cable OwnerÕs Manual Patch List ¢ ïù7£ ô»ç æ ~ô»ç³¬ÆçÓé·¿³ï¬~¤Ñ£«» ~ ;¤ÃŸ»¹ÑÄ
