yamaha kx 530

Extracted text from yamaha kx 530 (Ocr-read)

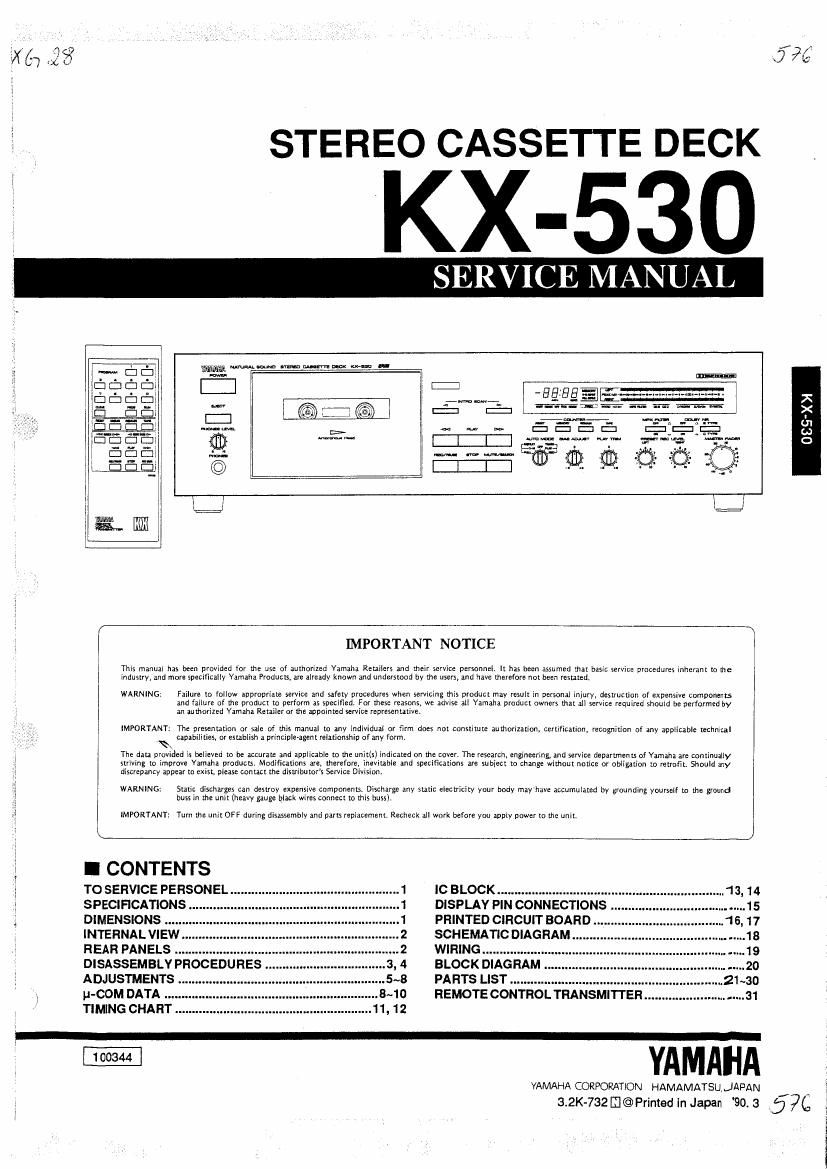

Page 1

STEREO CASSETTE DECK

KX-53O

SERVICE MANUAL

i
«I
I

mum-owe grammar. .-

'-_\
L@ 7?
>

s @iééfli Us

I:

WARNING:

Agggsfi fl

capabilitias, or establish a principleigenl mhflonship of any form.

TM data provided Is beIieved to he accurau and lWliCahIe to the midi) indicated on m: cover. The research. :ngineermg, and wwice departmenu 01 Yamaha are continuiuy
striving ID improve Yimzha product; Modifications 21¢, "wafers. Inavluble and snccificalions are sublefl m thing: without nuucc or obIgatIon Lo mxrofil. Should any

WARNING:
buss In :11: unit (heavy gauge blank wires eonneer Io mis buss),

IMPORTANT NOTICE

This manual has been provided for flu: use or uuuimrized Yamaha Retailers and meir service persunuei. n Ins been assumed um basic seNIcz procedures inhtmn! In me
industry, and more speeifieaiiv Yamzhz Prouuexs. are zIrczdy known and uuuersmud by me users, and hive madam nor been resuud.

Failure :0 mm unproprim svrvlcc and saferv proccdums when scrwcing mis proum may resulr rn aermnal vmurv, destructiun of expensive componsnts
and failure a! me producl to perform as speemed. For mese rusqns, we :mvls: an Yamaha pruduct owners mar an service nquired should be percormna by
an aumorized Yamaha Rerarxer or Ih: maimed service represenmrve.

IMPORTANT. The presentation or sale at" mi: manual In any EndividuaI or firm does not constitute authorization, certificmon, recogniuon of any Appliczbl: lechmul

Smie discharges can destroy expensive cnmponeanu Discharge any smic electricity your body may'have mumuiused by gmundlng yourself to me ground

IMPORTANT: Tum me Uni! OFF during disassemby and parts replacement, Recheck all work before you apply power [0 me unit.

f discrepancy appnr m exist. please con un the distributors Service Division.
I

I CONTENTS


TO SERVICE PERSONEL . 1
SPECIFICATIONS 1
DIMENSIONS 1
INTERNAL VIEW 2
REAR PANELS .. .2

4

DISASSEMBLY PROCEDURES .
ADJUSTMENTS .
p-COM DATA

IC BLOCK
DISPLAY PIN CONNECTIONS
PRINTED CIRCUIT BOARD
SCHEMATIC DIAGRAM .
WIRING .
BLOCK DIAGRAM
PARTS LIST
REMOTE CONTROL TRANSMITTER .

YAMAHA

YAMAHA CORPORATION HAMAMATSU,JAPAN
3.2K-732 m©Primad in Japan '90. 3

OSSXM

5%:

Page 2

l
l

KX-530

KX-530

I TO SERVICE PERSONNEL

1. Critical Components Information
Components having special characteristics are marked A
and must be replaced with parts having specifications equal to
those originally installed.

2. Leakage Current Measurement (For 120 V Model Only).
When service has been completed, it is imperative that you
verily that all exposed conductive surfaces are properly
insulated from supply circuits.

- Meter impedance should be equivalent to 1500 ohm shunted
by 0.15 uF.

- Leakage current must not exceed 0.5 mA.

- Be sure to test for leakage with the AC plug in both polarities.

- POLARIZATION
This product is equipped with a polarized altematlng current
line plug (a plug having one blade wider than the other ). This
plug will fit into the power outlet only one way. This is a safety
feature. (U.C model only)

I SPECIFICATIONS

Track Configuration ......... 4 track, 2 channel stereo
Motor.... ....DC servo motor (capstan)
Flat torque DC motor (reel)

DC motor (assist)

Heads ................... Recording/Playback: Amorphous
with 12-Iaminated core

Erase: Double Gap Ferrite


Rapid Transport

F. Fwd/Rew ................................... 70 sec. (0-60)
Wow and Flutter

WRMS .......


W. Peak .
Signal-to-Noise Ratio

Ott .better than 60 dB

Dolby on .better than 68 dB

Dolby C on ....bettertahn 76 dB
Frequency Response

Normal tape (-20 dB) 30 - 17,000 Hz :3 dB

CrO2 tape (-20 dB) 30 - 19,000 Hz :3 dB

Metal tape (-20 dB) ....... 30 -- 20,000 Hz i3 dB
Harmonic Distortion

(315 Hz, 3rd) .............. No more than 08%
input Sensitivity/Impedance

Line .......................................... 60 mV/SO kohms
Output Level

Line ........ ....360 mV/1.2 k-ohms

Phones .. ...O 6 mW/8 ohms
Channel Separation (3150 Hz) . ..... 40 dB
Cross Talk (125 Hz) 55 dB
GENERAL

Power Supplies
U, C models
G model
A, 8 models .
R, P models .......

....120 V, 60 Hz
220 V, 50 HZ
....240 V, 50 HZ
110/120/220/240 V, 50/60 Hz


EQUIPMENT AC LEAKAGE TESTER
UNDER TEST OR EQUIVALENT
® 0-

WALL
OUTLET

l::3 "

INSULATING TABLE

DE]-

Doiby noise reduction and HX FRO headroom extension
manufactured under license from Doly Laboratories Licensing
Corporation. HX PRO originated by Bang and Oluisen. "Dolby',
the double-D symbol and 'HX PRO" are trademarks of Dolby
Laboratories Licensing Corporation.

Power Consumption ....................................... 1 6 W
Dimensions (W X H X D). 435 X 117 X 275 mm

(17-1/8" X 49/16" X 10-13/16")
Weight ....................................... 4.7 kg (10 lbs 5 oz)

' Specifications subject to change without notice.

....U.S.A. model
.Canadian model

....Australian model

European model
. British model

.Other model

PX model

$1100pr

I DIMENSIONS
g
g
v
= §
3 .5.
5 o'
E a
[a
w v v t W t
15(9116')
r"
E: :1 E '
:1 i: .= =l:l ;
o :21: ==== a.-- _,
o 121:: W 01 (it 0 O O "'3
1425 (1") 355 (153/161 25(1')L-LI_
~-~-43$ (17-1/en_._#--Zl 12 (1/?)
unit: mm (11)
