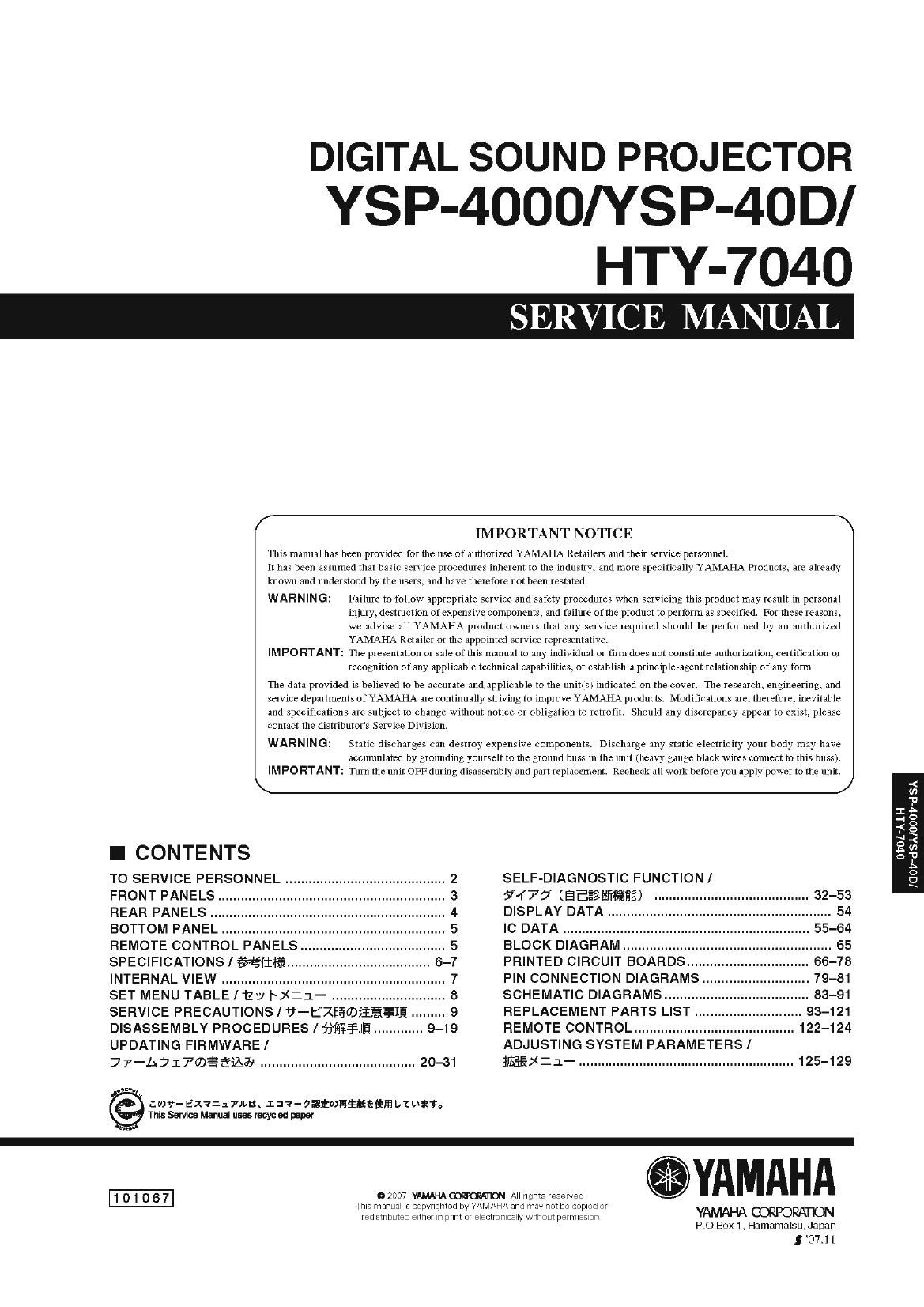

DIGITAL SOUND PROJECTOR

YS P-4000/Y S P-40 D/

HTY-7040

SERVICE MANUAL

/

contact the distributor's Service Division.

\

I CONTENTS

TO SERVICE PERSONNEL .......................................... 2
FRONT PANELS ............................................................ 3
REAR PANELS .............................................................. 4
BOTTOM PANEL ........................................................... 5
REMOTE CONTROL PANELS ...................................... 5
SPECIFICATIONS I §%Ifl§m 6-7
INTERNAL VIEW .................... ..... 7
SET MENU TABLE/IZDFXZJ- ............ .. 8
SERVICE PRECAUTIONS I U-EXflfiwiiEgIH ......... 9
DISASSEMBLY PROCEDURES / fifififillfi ------------- 9-19
UPDATING FIRMWARE /

7 7-1;? I703§=55A3$ ......................................... 20-31

:mv- Bx 7:17M1. lav-Oatmfiflaliififli LOTIfliTD
This Service Manual uses recycled paper.

101067

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPO RTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black Wires connect to this buss).
IMPO RTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

9 2007 mm All rights reserved
This rhanual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically Without permissmn

\

/

SELF-DIAGNOSTIC FUNCTION I

§47§ (aaeneae ......................................... 32-53
DISPLAY DATA ........................................................... 54
IC DATA ................................................................. 55-64
BLOCK DIAGRAM ....................................................... 65
PRINTED CIRCUIT BOARDS ................................ 66-78
PIN CONNECTION DIAGRAMS ............................ 79-81
SCHEMATIC DIAGRAMS ........ .. 83-91
REPLACEMENT PARTS LIST 93-121
REMOTE CONTROL .......................................... 122-124
ADJUSTING SYSTEM PARAMETERS]

WEXZJ- ......................................................... 125-129

YAMAHA

YAMAHA CORPORATION

PO Box 1, Hamamatsu, Japan
I 07. 11

.<
(I)
'P

14>

*8

'59.

-I-<

Em

0'.

4:

G

U

._
