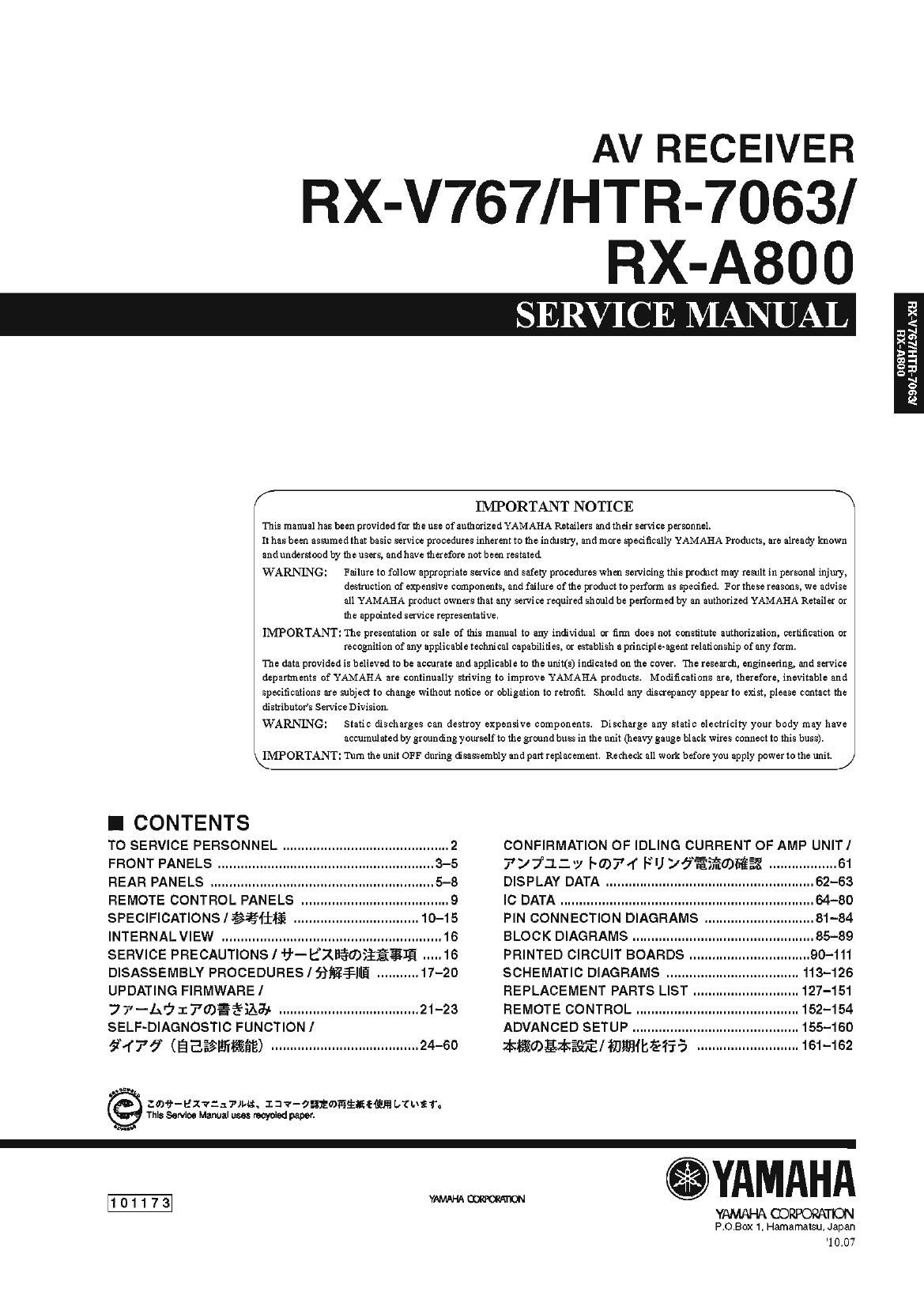

AV RECEIVER

RX-V767/HTR-7063/

RX-A800

:U

>.<

<
=3
>.<:-.J
>:I:
g-I
=3:
5
on
SE

/ IMPORTANT NOTICE \

This manual has been provided for the use of authorizedYAMAI-IA Retailers and their service personnel.

It has been assumedthat basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known

and understood by the users, andhave therefore not been restated

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in perlonal injury,
destruction of expensive components, and failure ofthe product to perform as specified. For these reasons, we advise
all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or
the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service

departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and

specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the

distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).

kIMPORTANT: Turn the unit OFF during disassembly andpart replacement. Recheck all work before you apply power to the unit. /

I CONTENTS

TO SERVICE PERSONNEL ............................................ 2 CONFIRMATION OF IDLING CURRENT OF AMP UNIT/
FRONT PANELS ......................................................... 3-5 T9712) H7)?rf PU Vfiaifiwfifiéfl .................. 61
REAR PANELS ............................ ....5--8 DISPLAY DATA ............................................... ....62-63
REMOTE CONTROL PANELS ........ 9 IC DATA ........................................... ....64-80
SPECIFICATIONS léfiifli ------ 10-15 PIN CONNECTION DIAGRAMS ..... ....81-84
INTERNAL VIEW ............................ 16 BLOCK DIAGRAMS ........................ ....85-89
SERVICE PRECAUTIONS I 'H'- EZB§®31E$I§ ..... 16 PRINTED CIRCUIT BOARDS ............ 90-111
DISASSEMBLY PROCEDURES lfifiéflllfi ........... 17-20 SCHEMATIC DIAGRAMS ................................... 113-126
UPDATING FIRMWARE] REPLACEMENT PARTS LIST ............................ 127-151
77-b'51703%i§i&3i~ ..................................... 21-23 REMOTE CONTROL ................... 152-154
SELF-DIAGNOSTIC FUNCTION 1 ADVANCED SETUP .................... 155-1 60
5173f 7"? (33%Mfiijfi) --------------------------------------- 24-60 lefifbgzfigiil Illfifllhfi'fiB --------------------------- 161-152

zone-227::wtu. I :Iv-amtmfiflififii truss 1',
Thls Samoa Manual uses recycled paper.

.YAMAHA

YAMAHA CDRPORATION

P.O.Box 1, Hamamatsu. Japan
'10.07

Page 2

RX-A800

\
to
0
O
'T
U:
I-
E
rx
(D
rx
>.
X
I:

RX-V767/HTR-7063/RX-A800

I TO SERVICE PERSONNEL

1. Critical Components Information
Components having special characteristics are marked A and
must be replaced with parts having specifications equal to those
originally installed.

2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.

0 Meter impedance should be equivalent to 1500 ohms shunted
by 0.15 uF,

For U model
IE3 CAUTION"

AC LEAKAGE
WALL EQUIPMENT TESTER OR
OUTLET UNDER TEST EQUIVALENT

®=D-

J:

INSULATING
TABLE

0 Leakage current must not exceed 0.5mA.
0 Be sure to test for leakage with the AC plug in both polarities.

-A-V F3701: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A,

125V FUSE."

For C model
CAUTION

F8701: REPLACE WITH SAME TYPE 8A. 125V FUSE.

ATTENTION

F3701: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 8A,125V.

WARNING: CHEMICAL CONTENT NOTICE!

This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive

harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON

WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or

expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before

handling food.

About lead free solder / #tfiél \VSIIZ'DLT

All of the P.C.B.s installed in this unit and solder joints are
soldered using the lead free solder.

Among some types of lead free solder currently available,
it is recommended to use one of the following types for
the repair work.

. Sn + Ag + Cu (tin + silver + copper)

- Sn + Cu (tin + copper)
0 Sn + Zn + Bi (tin + zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder
is about 30°C to 40°C (50°F to 70°F) higher than that of
the lead solder, be sure to use a soldering iron suitable
to each solder.

$I§%IZ%§Z$thé?/§T®EI§B$6/ \/ SIIULHI:
ckétfiéé lstfitct/ \y @c/ \7 awash? wide
filifiul \DSIZIiL < ObUDtEi/Ebfié U ifibt Ilééfifili
lat-FEEUDCII 3 fifitfififil \/ JUDIEFE EYE}: L $31.

- Sn+Ag+Cu ($5 + 5E + $13)

- Sn+Cu (fig+§lfi)

- Sn+Zn+Bl it?) + fifiu + E7770
52% I
fififi/ \VfimflfiifixliiEHOfiifil U / \/ @IZLISN 30 ~
40°CEF§E < 7:; ofbifiUDTk %7IL%IL(D/ \7 fill/a)
7c/ \/ 71??? Eli}? < fiévo
