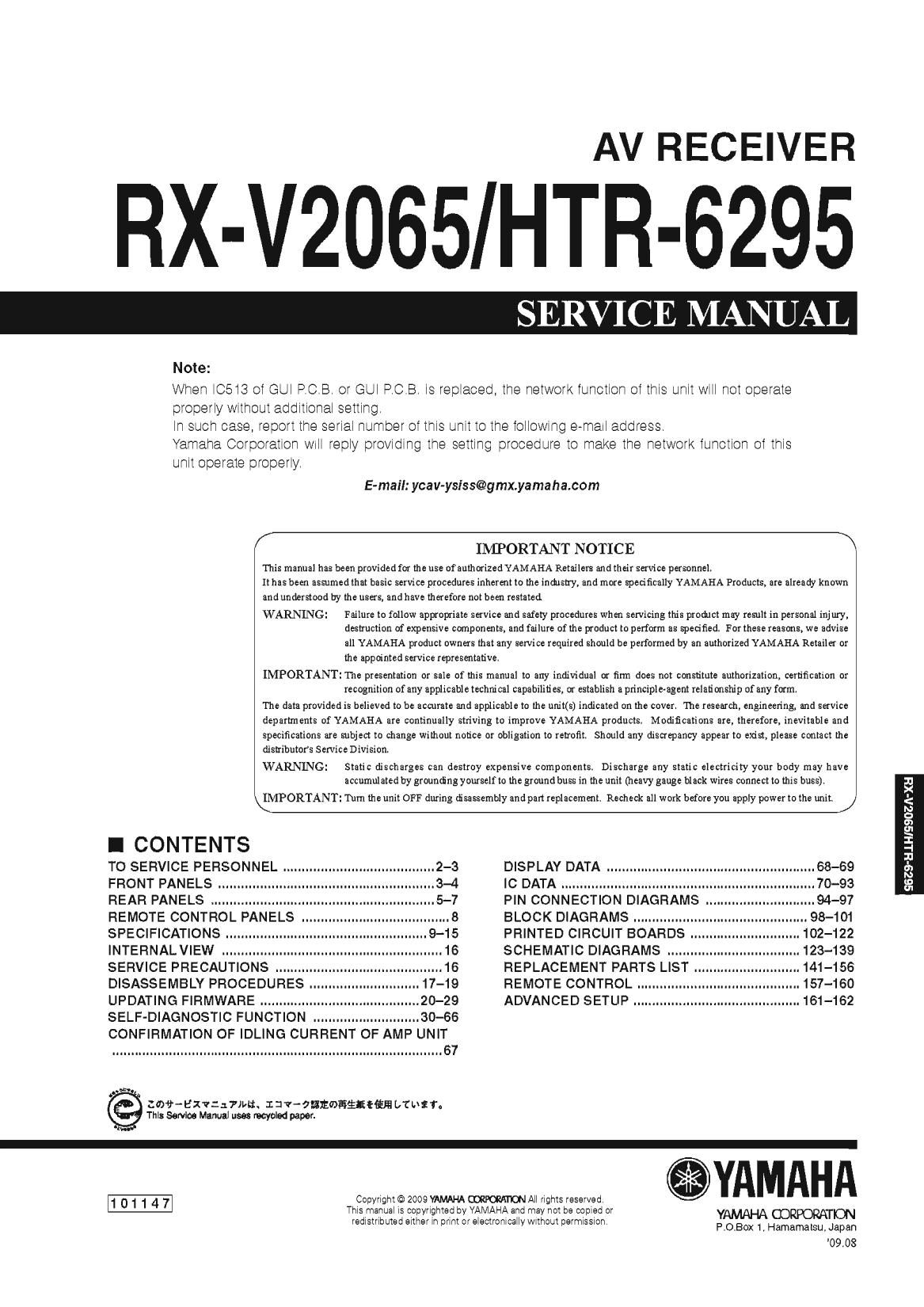

AV RECEIVER

RX-V2065/HTR-6295

SERVICE MANUAL

Note:

When l05i3 ot GUl PCB. or (Bill PCB. is replaced, the network function of this unit will not operate
properly without additional setting

in such case, report the serial number oi this unit to the following email address.

Yamaha Corporation will reply providing the setting procedure to make the network function of this
unit operate properly.

E-mail: ycav-ysiss@gmx.yamaha.com

/ IMPORTANT NOTICE \

This manual has been provided for the use ofauthorized YAMAHA Retailers and their service personnel.

It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known

and understood by the users, and have therefore not been restated

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise
all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or
the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principleagent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service

departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and

specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the

distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulatedby grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).

\IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit, /

I CONTENTS

TO SERVICE PERSONNEL ........................................ 2-3

DISP LAY DATA ....................................................... 68-69

FRONT PANELS .................... IC DATA ..............................................

REAR PANELS ............................. PIN CONNECTION DIAGRAMS ................... 94-97
REMOTE CONTROL PANELS . BLOCK DIAGRAMS ........................... 98-101
SPECIFICATIONS ..................................................... 9-15 PRINTED CIRCUIT BOARDS ............................. 102-122
INTERNAL VIEW .......................................................... 16 SCHEMATIC DIAGRAMS ................................... 123-139
SERVICE PRECAUTIONS .............................. 16 REPLACEMENT PARTS LIST . 141-156
DISASSEMBLY PROCEDURES ................ 17-19 REMOTE CONTROL ................ 157-160
UPDATING FIRMWARE ................................... 20-29 ADVANCED SETUP ............................................ 161 -162
SELF-DIAGNOSTIC FUNCTION ............................ 30-66

CONFIRMATION OF IDLING CURRENT OF AMP UNIT

....................................................................................... 67

m

.

amneezvzzwtu. I 37*afltwfiifitfifli Liner.
This Service Manual uses recycled paper.

101147

Copyright © 2009 YAMAHA mammal All rights reserved.
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.

.YAMAHA

YAMAHA CORPORATION

P.O,Box 1, Hamamalsu. Japan
09.08

I
E
a
or
§
-|
"-F
or
N
8
