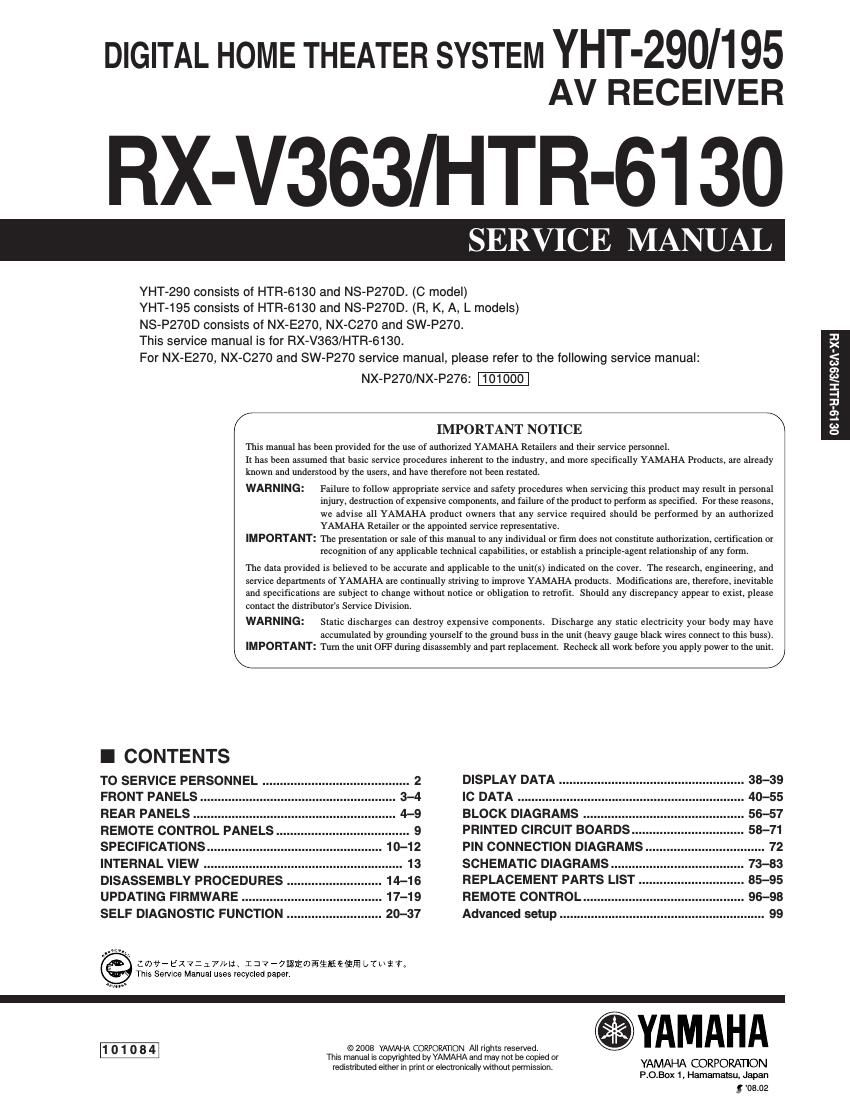

Page 1

DIGITAL HOME THEATER SYSTEM YHT-290/195

AV RECEIVER

X-V363A'ITR-61 30

ER ICE M NU

YHT-290 consists of HTR-613O and NS-P27OD. (C model)
YHT-195 consists of HTR-6130 and NS-P27OD. (R, K, A, L models)
NS-P270D consists of NX-E270, NX-C270 and SW-P270.

This service manual is for RX-V363/HTR-6130.

For NX-E270. NX-027O and SW-P27O service manual, please refer to the following service manual:

NX-P270/NX-P276: 101000

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
it has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriaie service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principleragem relationship of any form.

The data provided is believed to be accurate and applicable to the unitts) indicated on the cover. The research, engineering. and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are. therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please

comacl [he dieributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourselfto the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and pan replacement. Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL
FRONT PANELS
REAR PANELS ..
REMOTE CONTROL PANELS.
SPECIFICATIONS.
INTERNAL VIEW ..
DISASSEMBLY PROCEDURES .
UPDATING FIRMWARE ..
SELF DIAGNOSTIC FUNCTION .

:7)EX7:17}III;\ I j 777aiw§iifififiéifi LTLiT.
This Service Manual uses recycled paper.

(9 2008 YAMAHA CORPORATION All nghls reserved.
Thls manual is copyrighted by VAMAHA and may not be copied or
redlstnbuied either in punt or electronically Without permission.

DISPLAY DATA
IC DATA .
BLOCK DIAGRAMS
PRINTED CIRCUIT BOARDS..
PIN CONNECTION DIAGRAMS
SCHEMATIC DIAGRAMS ......
REPLACEMENT PARTS LIST
REMOTE CONTROL.
Advanced setup ......

YAMAHA

YAMAHA CORPORATION
P.O.Box 1, HamamaIsu, Japan
g '03.02

:0
>5
<
w
a»
Q
I
-I
3.
o»
.a
w
o

Page 2

O
n
P
a:
I-
:I:
L
M
SD
M
>.
><
a:

RX-V363lHTR-613O

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked l and WALL EQUIPMENT TESTER OR
must be replaced with parts having specifications equal to those OUTLET UNDER TEST EQUIVALENT

originally installed.

2. Leakage Current Measurement (For 120V Models Only) ® :D- J_-

When service has been completed, it is imperative to verily
that all exposed conductive surfaces are properly insulated

from supply circuits. |NS+JALéAJéNG
0 Meter impedance should be equivalent to 1500 ohms shunted o Leakage current must not exceed 0.5mA.
by O'ISIIF' I Be sure to test for leakage with the AC plug in both polarities.
For U model
Ea CAUTION"
iAiv F2251: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A,
125V FUSE."
For C model
CAUTION
F2251: REPLACE WITH SAME TYPE 6A, 125V FUSE.
ATTENTION

F2251: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 6A,125V.

WARNING: CHEMICAL CONTENT NOTICE!

This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY
REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About lead free solder
All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.

Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair
work.

- Sn + Ag + Cu (tin + silver + copper)
- Sn + Cu (tin + copper)
- Sn + Zn + Bi (tin + Zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure
to use a soldering iron suitable to each solder.
