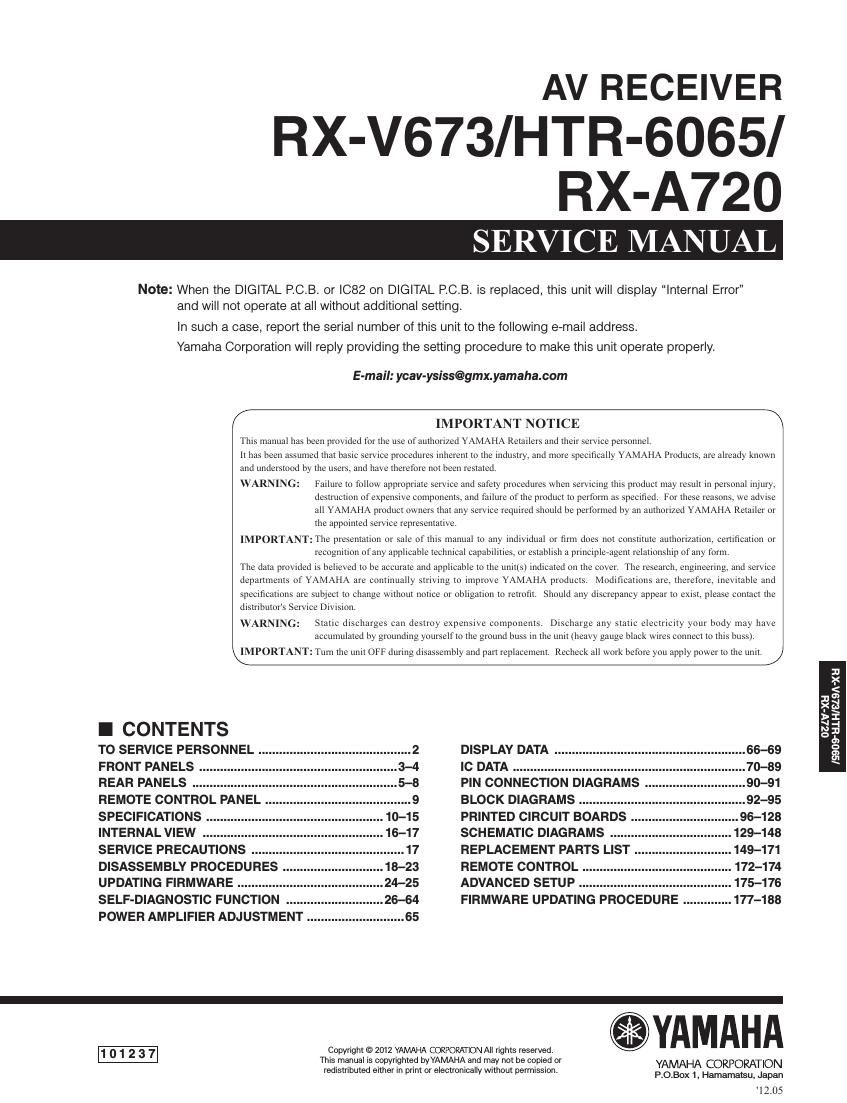

AV RECEIVER

RX-V673/HTR-6065/

RX-A720

Note: When the DIGITAL P.C.B. or |C82 on DIGITAL PCB. is replaced, this unit will display Internal Error"
and will not operate at all without additional setting.

In such a case, report the serial number of this unit to the following email address.
Yamaha Corporation will reply providing the setting procedure to make this unit operate properly.

E-mail: ycav-ysiss@gmx. yamaha.com

lMPORTANT NOTlCE

This manual has been proyidcd for the use of authorized YAMAHA Retailers atid their service personnel,
it has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known
and understood by the users, and have therefore not been restated,

VVARNlN

Failure to follow appropriate semce and safety procedures when Servicing this product may result in personal iniury.
destruction of cxpenstte components. and failure of the product to perform as specified. For these reasons, we advise
all YAMAHA product owners that any service required should he performed by an authorized YAMAHA Retailer or
the appointed semce teptesentatn e.

IIVIPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization. certification or

recognition ofany applicable technical capabilities. or establish a principleragent relationship nt'any form.

The data proyided is belieyed to be accurate and applicable to the ||nlI(S) indicated on the cover, The research. engineering. and service
departments of YAMAHA are continually Striving to improve YAMAHA products Modifications are. therefore, inevitable and
specifications are Subject to change Without notice or obligation to retrofit, Should any discrepancy appear to exist, please contact the
distributor's Service Division,

WARNING: Static discharges cart destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourselfto the ground buss in the unit (heavy gauge black wires connect to this buss).

IMPORTANT: Turn the trait OFF during disassembiy and part replacement Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL DISPLAY DATA

OZLV'XU
lSSOS-HLH/ELQA'XU

FRONT PANELS IC DATA
REAR PANELS .. PIN CONNECTION DIAGRAMS .90-91
REMOTE CONTROL PANEL .......................................... 9 BLOCK DIAGRAMS ................................................ 92-95

SPECIFICATIONS . .10-15 PRINTED CIRCUIT BOARDS
INTERNAL VIEW .16-17 SCHEMATIC DIAGRAMS ..
SERVICE PRECAUTIONS ....17 REPLACEMENT PARTS LIST .
DISASSEMBLY PROCEDURES ............................. 18-23 REMOTE CONTROL ........................................... 172-174
UPDATING FIRMWARE ........... .24-25 ADVANCED SETUP ............................ 175-176
SELF-DIAGNOSTIC FUNCTION .26-64 FIRMWARE UPDATING PROCEDURE 177-188

POWER AMPLIFIER ADJUSTMENT ...65

YAMAHA

YAMAHA CORPORATION

P.O.Box 1, Hamamatsu, Japan
'12.05

1 0 1 2 3 7 Copyright© 2012 YAMAHA CORPORATJONAll rights reserved.
this manual is copyrighted by YAMAHA and may not be copied or

redistributed either in print or electronically Without permission,

Page 2

RX-A720

E
u:
o
9
m
._
E
«a
h
(D
>.
X
C:

RX-V673/HTR-6065lRX-A720

I TO SERVICE PERSONNEL

AC LEAKAGE
1. Critical Components Intormation WALL EQUIPMENT TESTER OR
Components having special characteristics are marked A and OUTLET UNDER TEST EQUIVALENT
must be replaced with parts having specifications equal to those
originally installed. ® :ID-
2. Leakage Current Measurement (For 120V Models Only) J_-
When serVIce has been completed, It is Imperative-to verify INSULATING
that all exposed conductive surfaces are properly Insulated TABLE
from supply circuits.
- Meter impedance should be equivalent to 1500 ohms shunted 0 Leakage current must not exceed 0.5mA.
by 0-15 IJF- 0 Be sure to test for leakage with the AC plug in both polarities.
For U model
133 CAUTION
F3702: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A,
125V FUSE."
For C model
CAUTION
F3702: REPLACE WITH SAME TYPE 8A, 125V FUSE.
ATTENTION

F3702: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 8A, 125V.

WARNING: CHEMICAL CONTENT NOTICE!

This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or
expose eyes to solder/flux vapor!

It you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About lead free solder

All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.

Among some types of lead tree solder currently available, it is recommended to use one of the following types for the
repair work.

0 Sn + Ag + Cu (tin + silver + copper)
0 Sn + Cu (tin + copper)
0 Sn + Zn + Bi (tin + Zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead
solder, be sure to use a soldering iron suitable to each solder.
