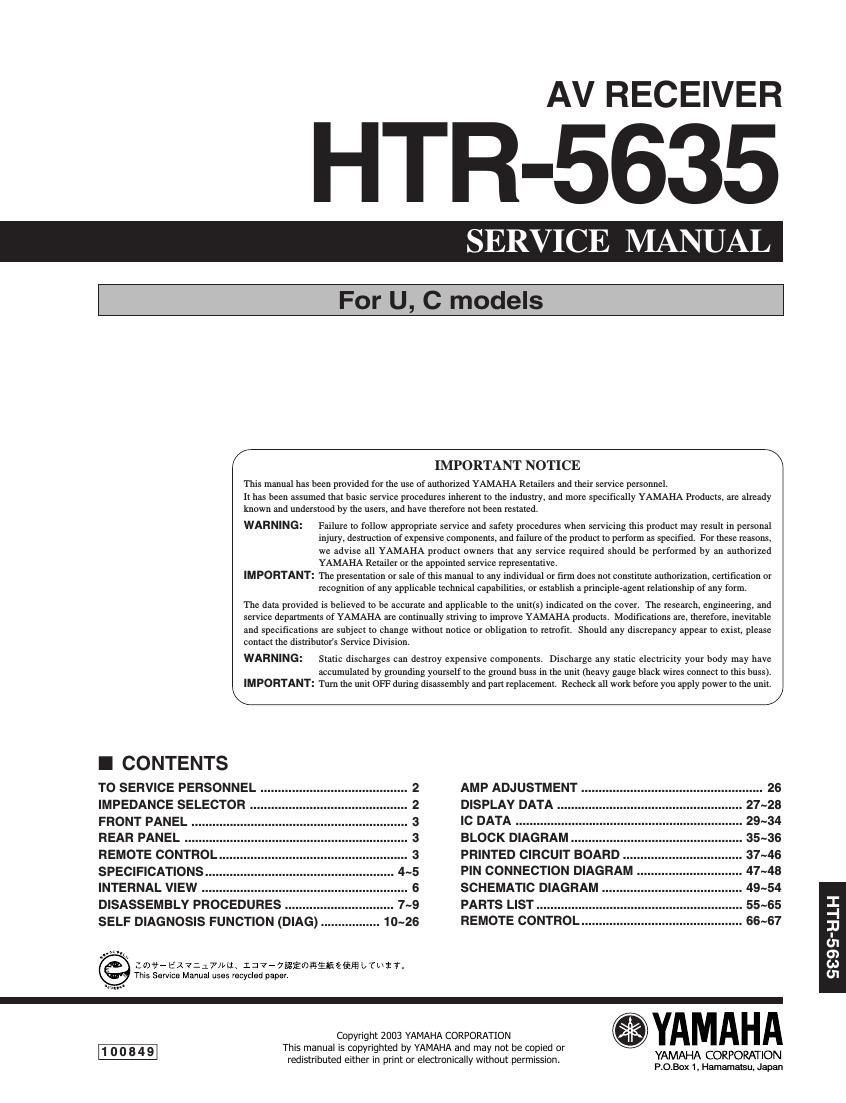

Yamaha htr 5635
This is the 68 pages manual for yamaha htr 5635.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha htr 5635 (Ocr-read)
Page 1
2 HTR-5635 HTR-5635 IMPEDANCE SELECTOR WARNING: Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged. WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. IMPEDANCE SELECTOR CAUTION F922: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 7A, 125V FUSE. CAUTION F922: REPLACE WITH SAME TYPE 7A, 125V FUSE. ATTENTION F922: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 7A, 125V. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. - DIMENSIONS 151 (5-15/16")130 (5-1/8") 349.5 (13-3/4") 21 (13/16")16 (5/8")14.5 (9/16") 380 (14-15/16") 435 (17-1/8") Unit : mm (inch)
Page 2
3 HTR-5635 HTR-5635 FRONT PANEL REAR PANEL REMOTE CONTROL SYSTEMPOWER STANDBY POWERAV POWERTVPOWERTV ENTER +10 0 9 STEREO MATRIX 6.1 SELECT- /DTS 8 7 6 5 1 - MOVIE THTR - 2 MONO MOVIE TV SPORTS 4 3 2 1 ENTERTAINMENT ROCK JAZZ HALL V-AUX VCR D-TV/CBL DVD SLEEP TUNER MD/CD-R CD TV AMP CODE SET MUTE INPUT MUTE REC 6CH INPUT AUDIO DISC SKIP VOLUME + –+ – + –CH VOL SET MENU SELECT PRESET/CH RAV301 WA65340 A/B/C/D/E LEVEL MENU TESTRETURN DISPLAY TITLE + –
