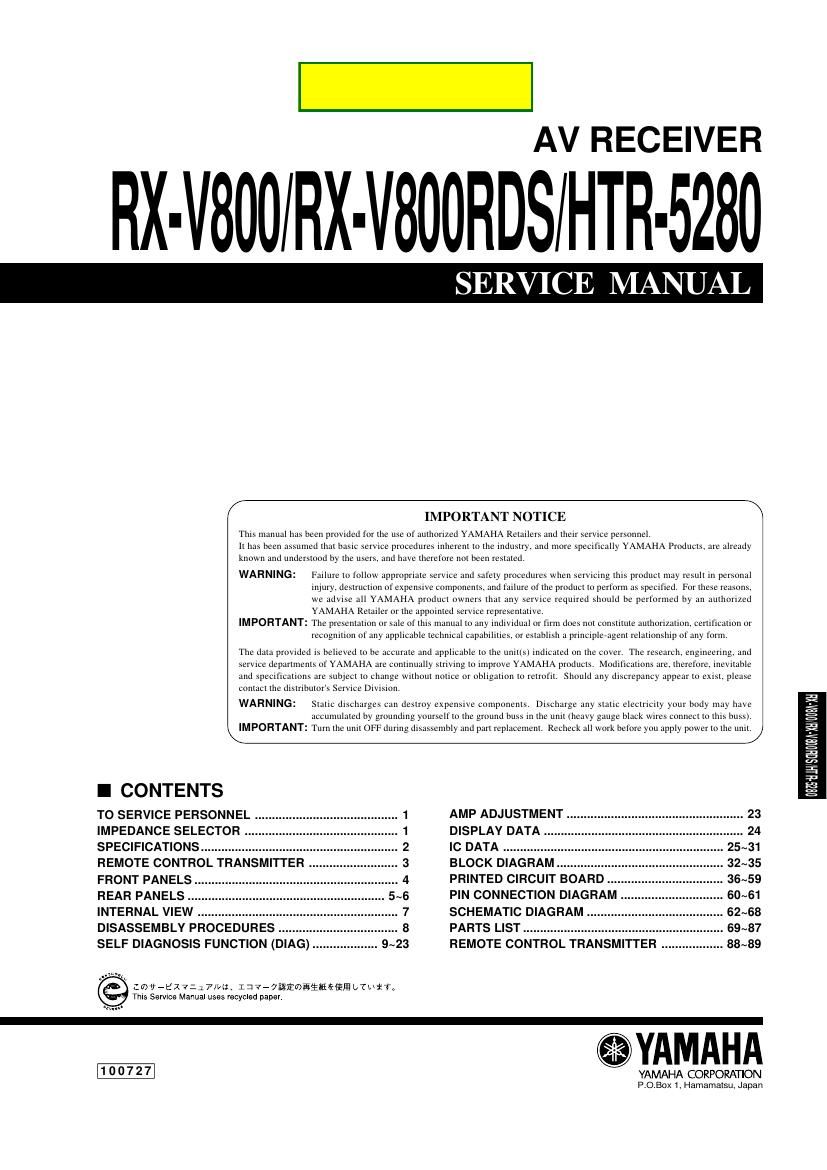

Yamaha htr 5280
This is the 46 pages manual for yamaha htr 5280.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha htr 5280 (Ocr-read)
Page 1
RX-V800/RX-V800RDS/HTR-5280 1 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. IMPEDANCE SELECTOR TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR. WARNING ATTENTION AC OUTLETSSWITCHED I20V 60Hz I00W MAX. TOTAL THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONIS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. US CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENIMPEDANCE SELECTORSET BEFORE POWER ONMAIN A OR B B A CENTER REAR SPEAKERMIN.4SPEAKERMIN.6SPEAKERMIN.6SPEAKERMIN.8 MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS, INC. US PAT. NO.5,45I,942 AND OTHER WORLD-WIDE PATENTS ISSUED AND PENDING. "DTS", "DTS DIGITAL SURROUND", ARE TRADEMARKS OF DIGITALTHEATER SYSTEMS, INC. COPYRIGHT 1998 DIGITAL THEATER SYATEMS, INC, ALL RIGHTS RESERVED. MAIN A OR B B A CENTER REAR SPEAKERMIN.8SPEAKERMIN.8SPEAKERMIN.8SPEAKERMIN.I6 IMPEDANCE SELECTOR WARNING: Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged.
Page 2
RX-V800/RX-V800RDS/HTR-5280 SPECIFICATIONS Audio Section Minimum RMS Output Power (Power Amp. Section) (20 Hz to 20 kHz, 0.04% THD, 8 ohms) MAIN .......................................................................100W + 100W CENTER...............................................................................100W REAR......................................................................100W + 100W Maximum Power (EIAJ) (1 kHz, 10% THD, 8 ohms) MAIN .......................................................................140W + 140W CENTER...............................................................................140W REAR......................................................................140W + 140W Dynamic Power Per Channel (IHF) MAIN L/R (8/6/4/2 ohms) [U model]........................................................ 135/170/205/245 W [C, A, B, G, L, R, T models] ........................... 125/160/195/230 W DIN Standard Output Power Per Channel (1 kHz, 0.7% THD, 4 ohms) [G model].............................................................................140 W Dynamic Headroom 8 ohms [U model]............................................................................. 1.3 dB [C model]............................................................................. 1.0 dB IEC Power MAIN L/R (1 kHz, 0.04% THD, 8 ohms) [G model].................................................................105W + 105W Damping Factor MAIN L/R (20 Hz to 20 kHz, 8 ohms)..........................80 or more Input Sensitivity / Input Impedance PHONO MM................................................... 2.5 mV / 47 k-ohms CD, etc. .........................................................150 mV / 47 k-ohms Maximum Input Signal Level PHONO MM (1 kHz, 0.1% THD)......................................100 mV CD, etc. (1 kHz, 0.5% THD, Effect On)................................ 2.2 V Output Level / Output Impedance REC OUT.....................................................150 mV / 0.9 k-ohms PRE OUT....................................................... 2.57 V / 1.2 k-ohms SUB WOOFER [MAIN SP: Small]...................... 4 V/1.2 k-ohms Headphone Jack Rated Output / Impedance 1 kHz, 40 mV, 8 ohms..................................... 0.15 V / 100 ohms Frequency Response Power Amp only (5 Hz to 100 kHz) ................................... 0/-3 dB CD, etc. to MAIN SP OUT (10 Hz to 100 kHz).................. 0/-3 dB RIAA Equalization Deviation PHONO MM (20 Hz to 20 kHz) .................................... 0 ± 0.5 dB Total Harmonic Distortion (20 Hz to 20 kHz) PHONO MM, to REC OUT (1V).............................. 0.02% or less CD, etc. to MAIN SP OUT (50 W / 8 ohms)............ 0.04% or less Signal to Noise Ratio (IHF-A network) CD, etc. to MAIN SP OUT (Input shorted, Effect Off) 150 mV....................................................................96 dB or more 200 mV....................................................................98 dB or more Residual Noise (IHF-A netwok) MAIN L/R SP OUT .................................................150 µV or less Channnel Separation (Vol -30 dB, Effect Off) PHONO (Input Shorted, 1 kHz)..............................60 dB or more PHONO (Input Shorted, 10 kHz)............................55 dB or more CD, etc. (Input 5.1 k-ohms terminated, 1 kHz)............. 60 dB or more CD, etc. (Input 5.1 k-ohms terminated, 10 kHz)........... 45 dB or more Tone Control Characteristics Bass: Boost/Cut ................................................ ±10 dB (50 Hz) Turnover Frequency............................................350 Hz Treble: Boost/Cut .............................................. ±10 dB (20 kHz) Turnover Frequency........................................... 3.5 kHz Filter Characteristics MAIN, Rear SP Small (H.P.F.).......................... 90 Hz, 12 dB/oct. SUBWOOFER (L.P.F.)...................................... 90 Hz, 18 dB/oct. Bass Extension 60 Hz ...................................................................................... 6 dB Video Section Video Signal Type [U, C, R, T models]..............................................................NTSC [A, B, G, L, models]................................................................. PAL Video Sigal Level ............................................................................ 1 Vp-p / 75 ohms 2 S-Video Sigal Level Y ......................................................................... 1 Vp-p / 75 ohms C .................................................................. 0.286 Vp-p / 75 ohms Component Video Sigal Level Y ......................................................................... 1 Vp-p / 75 ohms Cb / Cr ............................................................. 0.7 Vp-p / 75 ohms Maximum Input Level .......................................................................................... 1.5 Vp-p Sigal to Noise Ratio .................................................................................50 dB or more Monitor Out Frequency Response S-Video Signal Level................................. 5 Hz to 10 MHz, -3 dB Component Signal Level.............................. DC to 30 MHz, -3 dB FM Section Tuning Range [U, C models]...................................................87.5 to 107.9 MHz [R, T, A, B, G, L models].................................. 87.5 to 108.0 MHz 50 dB Quieting Sensitivity (IHF) (100% Mod) Mono.................................................................. 2.0 µV (17.3 dBf) Stereo .................................................................. 25 µV (39.2 dBf) Usable Sensitivity (IHF) Mono .................................................................. 1.0 µV (11.2 dBf) Selectivity at 400 kHz............................................................................ 70 dB Signal to Noise Ratio (IHF) Mono / Stereo.......................................................... 76 dB / 70 dB Harmonic Distortion (1 kHz) Mono/Stereo................................................................. 0.2 / 0.3 % Stereo Separation 1 kHz .................................................................................... 45 dB Frequency Response 20 Hz to 15 kHz.......................................................... +0.5 / -2 dB Antenna Input ...................................................................... 75 ohms unbalanced AM Section Tuning Range [U, C, R, T models]............................................530 to 1,710 kHz [A, B, G, L models].............................................531 to 1,611 kHz Usable Sensitivity ........................................................................................300 µV/m Antenna .................................................................................Loop Antenna General Power Supply [U, C models]...................................................... AC 120 V, 60 Hz [R models]................................ AC 110/120/220/240 V, 50/60 Hz [T model]............................................................. AC 220 V, 50 Hz [A model ]............................................................ AC 240 V, 50 Hz [B, G, L models].................................................. AC 230 V, 50 Hz Power Consumption [U model]............................................................................. 260 W [C model].............................................................. 300 W / 360 VA [R, T, A, B, G, L models]..................................................... 300 W Maximum Power Consumption (5ch Drive, 10% THD) [R model]............................................................................. 585 W AC Outlets 2 switched outlets [U, C, R, T G, L models]....................................100W max., total 1 switched outlets [A, B models]...............................................................100W max. Dimensions (W x H x D) ............................. 435 x 171 x 431.5 mm (17-1/8" x 6-3/4" x 17") Weight .................................................................... 15.0 kg (33 lbs. 1 oz.) Accessories Remote control transmitter, Manganese batteries, Indoor FM antenna, AM loop antenna * Specifications are subject to change without notice. U .......... U.S.A. model C...... Canadian model A ..........Australian model B...... British model G .......... European model L....... Singapore model R ..........General model T....... China model
